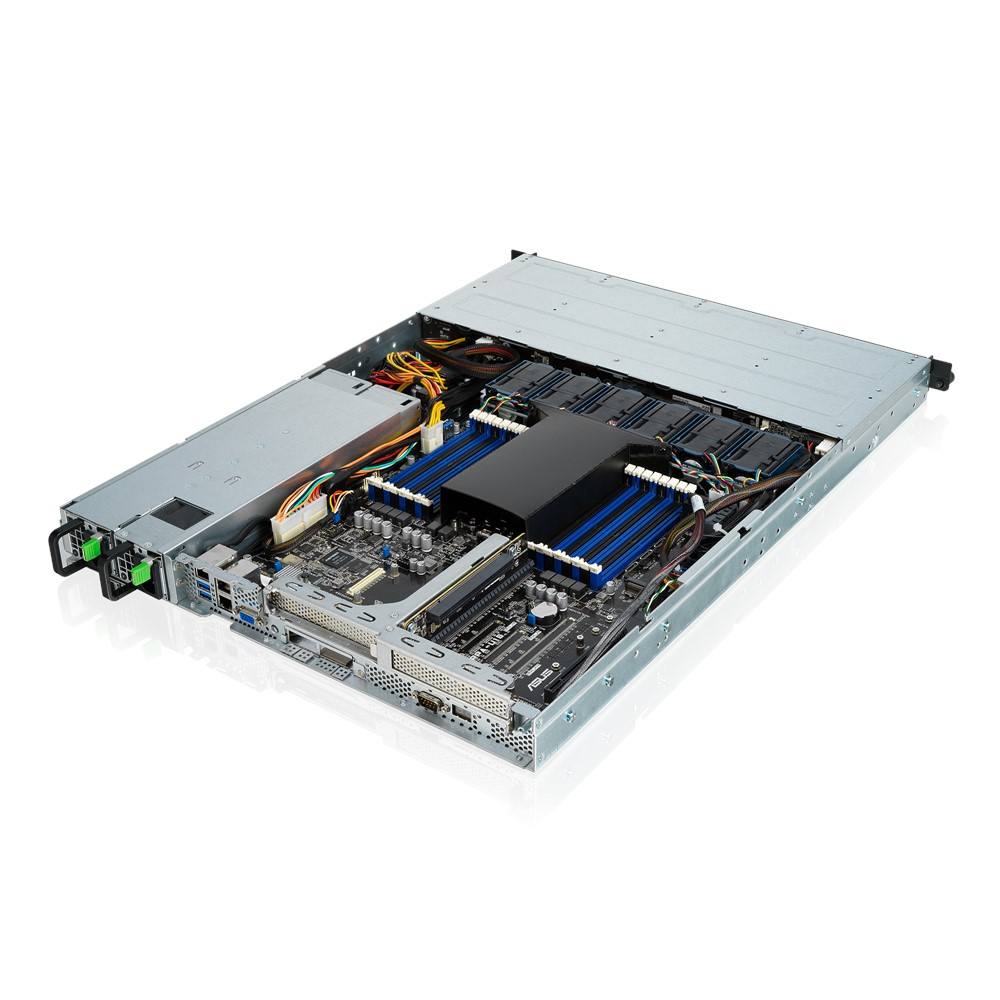

RS500A-E10-RS4 Socket SP3 Rack (1U) Black, Grey
Model RS500A-E10-RS4Part no. 90SF00X1-M00140EAN 4718017466011
36 specifications
- Weight11 kg
- ColourBlack, Grey
- Built-in processorNo
- Number of DIMM slots16
- Number of storage drives supported4
- Ethernet LANYes
Overview
- Weight
- 11 kg
- Colour
- Black, Grey
- Built-in processor
- No
- Number of DIMM slots
- 16
- Number of storage drives supported
- 4
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS500A-E10-RS4
- Part number
- 90SF00X1-M00140
- EAN / UPC
- 4718017466011
- Also known as
- ASUS RS500A-E10-RS4 Socket SP3 Rack (1U) Black, Grey
Specifications
36 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor socket | Socket SP3 |
| Number of processors supported | 1 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 16 |
| Supported memory types | DDR4-SDRAM |
| Maximum RDIMM memory | 2 TB |
| Supported RDIMM clock speeds | 2666,2933,3200 MHz |
| Memory channels | Octa-channel |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 4 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5,3.5" |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I350-AM2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 4.0 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Grey |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 650 W |
| Redundant power supply (RPS) support | Yes |
| AC input frequency | 50 - 60 Hz |
| Input current | 10/5 A |
| 80 PLUS certification | 80 PLUS Platinum |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 11 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 17 kg |
