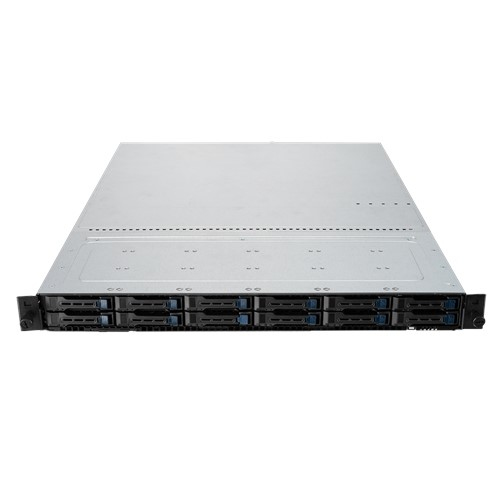

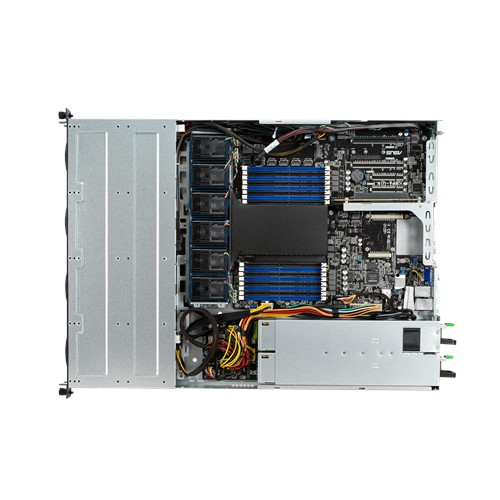

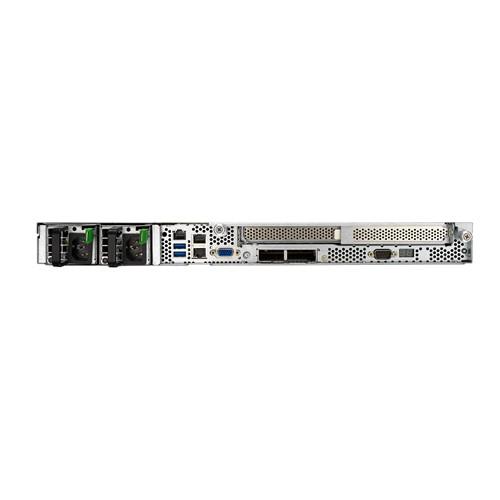

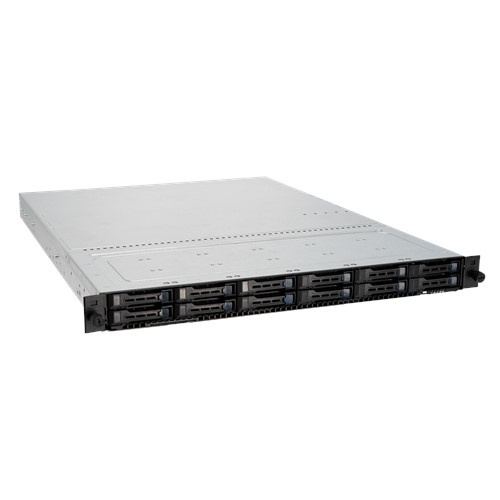

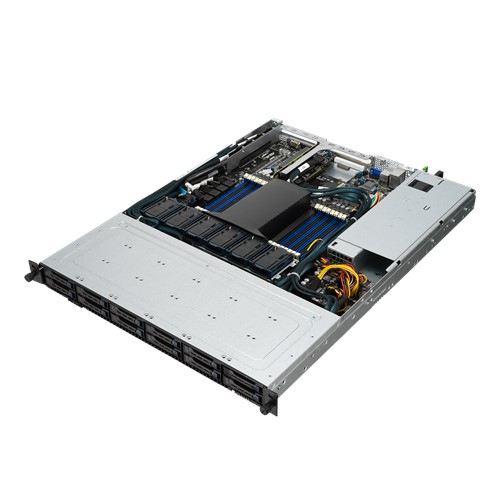

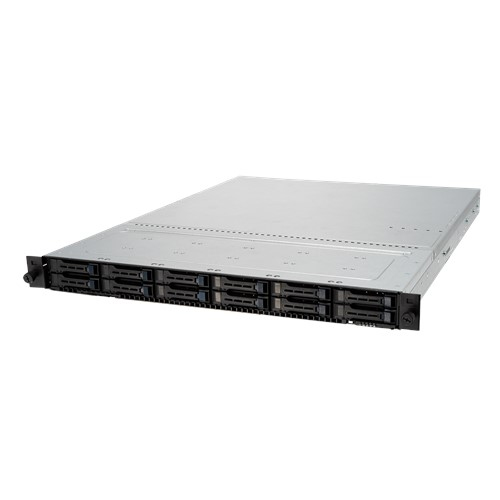

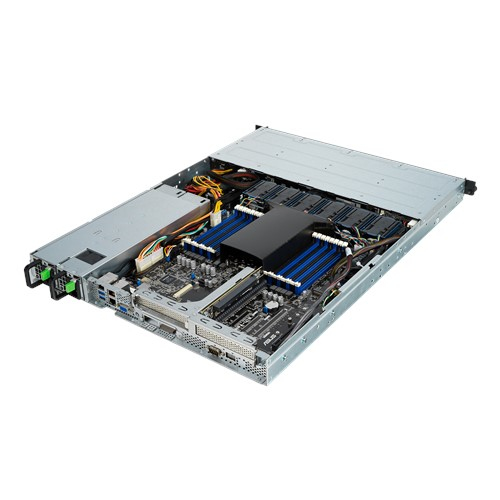

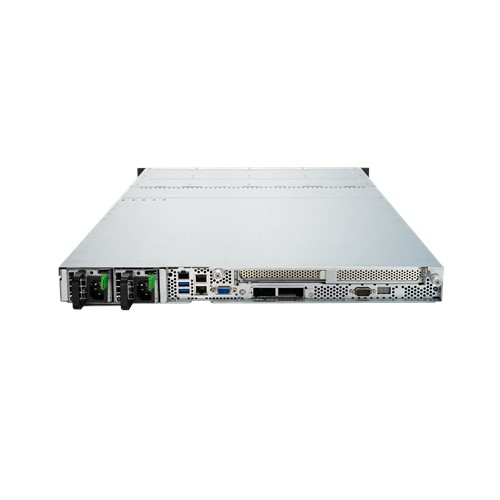

RS500A-E10-RS12-U Socket SP3 Rack (1U) Black, Grey
Model RS500A-E10-RS12-UPart no. 90SF00X1-M00080EAN 4711081396604
40 specifications
- ProcessorAMD EPYC
- Weight11 kg
- ColourBlack, Grey
- Built-in processorNo
- Number of DIMM slots16
- Number of storage drives supported12
Overview
- Processor
- AMD EPYC
- Weight
- 11 kg
- Colour
- Black, Grey
- Built-in processor
- No
- Number of DIMM slots
- 16
- Number of storage drives supported
- 12
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS500A-E10-RS12-U
- Part number
- 90SF00X1-M00080
- EAN / UPC
- 4711081396604, 4718017466004
- Also known as
- ASUS RS500A-E10-RS12-U Socket SP3 Rack (1U) Black, Grey
Specifications
40 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor socket | Socket SP3 |
| Processor family | AMD EPYC |
| Number of processors supported | 1 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 16 |
| Supported memory types | DDR4-SDRAM |
| Maximum RDIMM memory | 2 TB |
| Supported RDIMM clock speeds | 2666,2933,3200 MHz |
| Memory channels | Octa-channel |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 12 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5" |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2500 |
| On-board graphics card memory | 64 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I350-AM2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 4.0 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Grey |
| Certification | CE, FCC |
Power
| Specification | Value |
|---|---|
| Power supply | 650 W |
| Number of redundant power supplies supported | 2 |
| AC input frequency | 50 - 60 Hz |
| Input current | 10/5 A |
| 80 PLUS certification | 80 PLUS Platinum |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 11 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 17 kg |
Other features
| Specification | Value |
|---|---|
| Memory slots | 16 |
