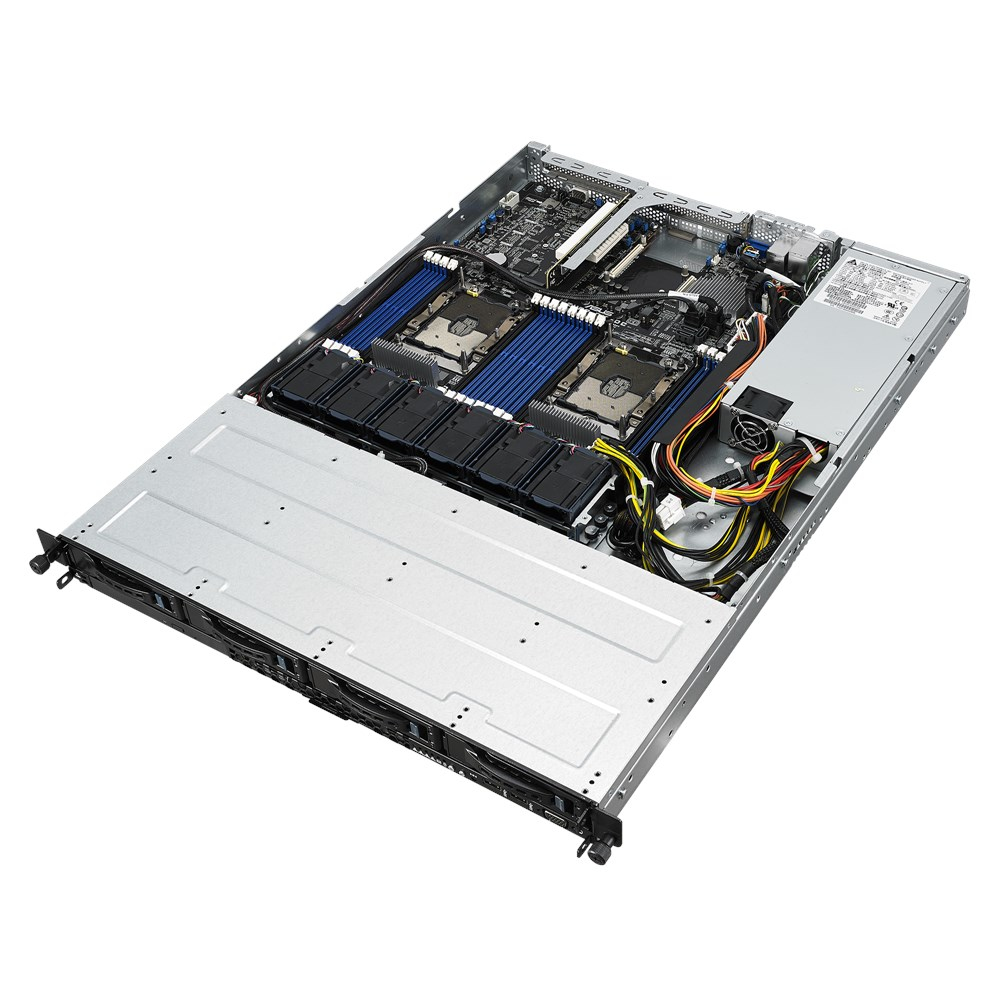

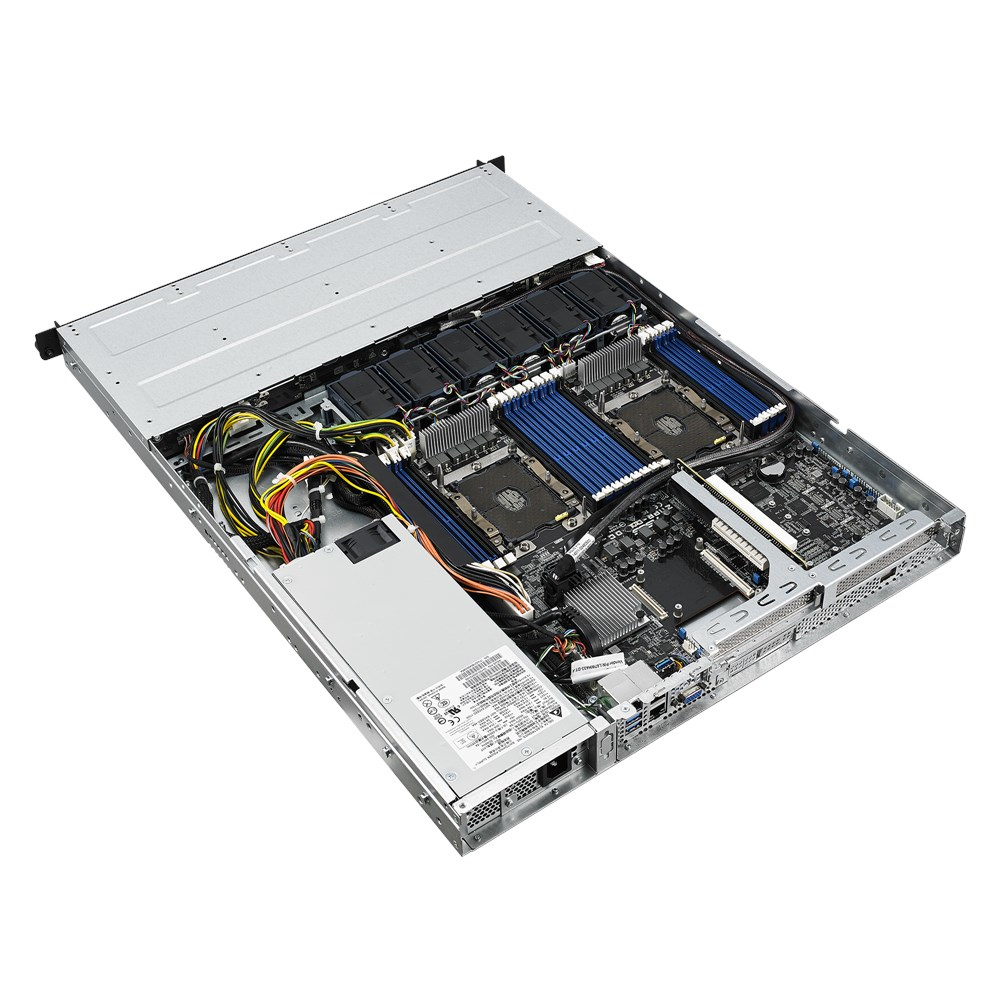

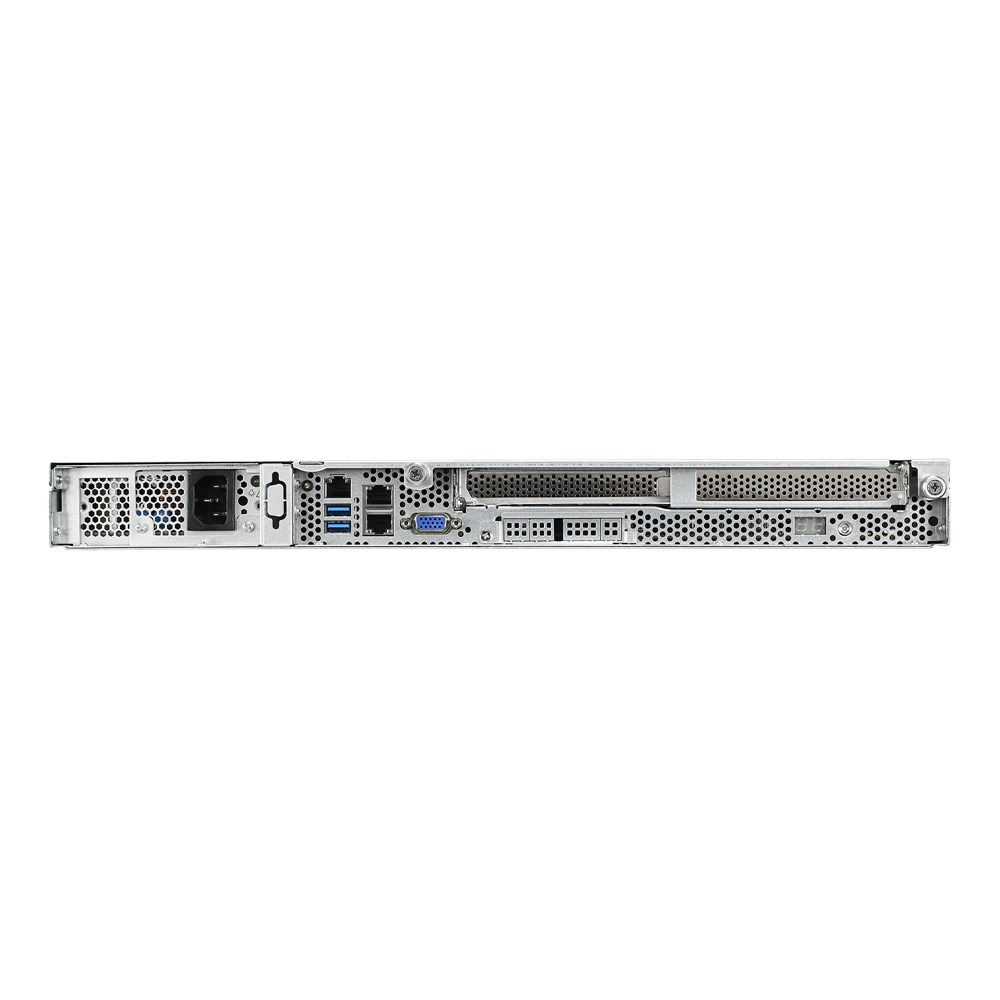

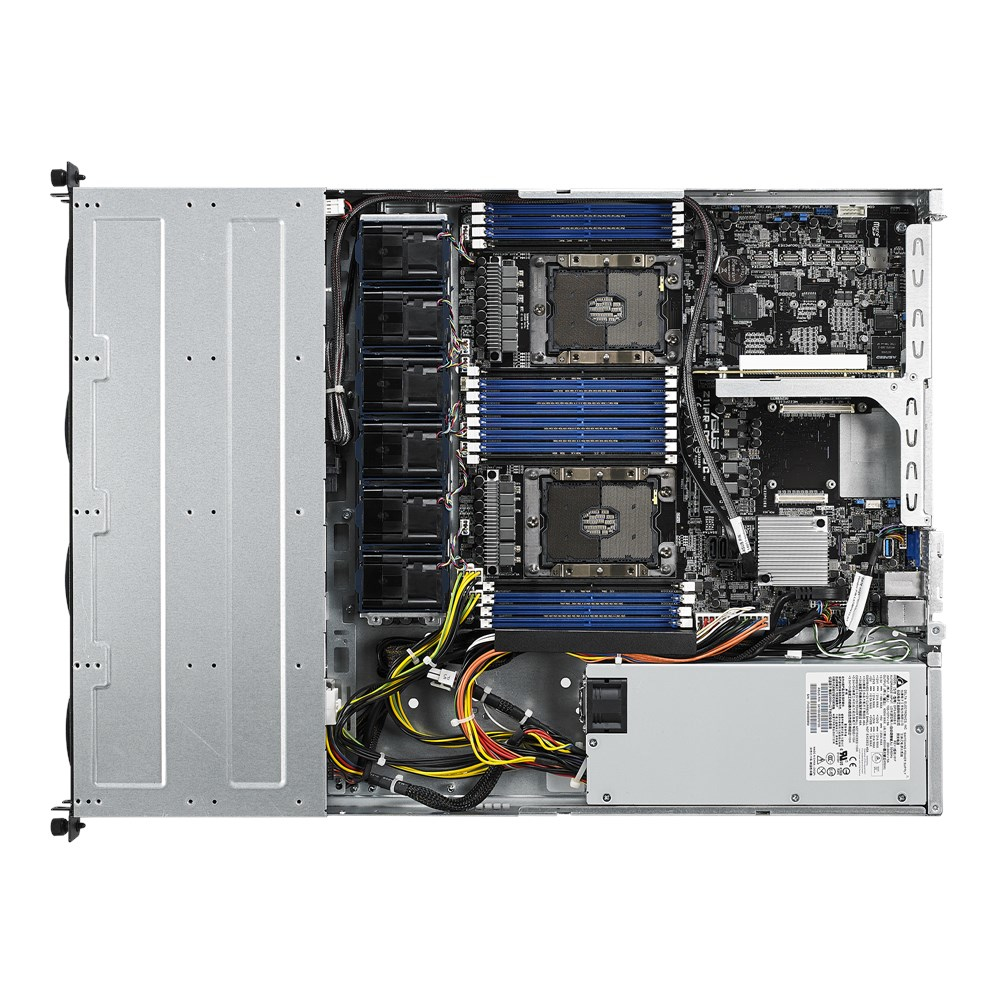

ASUS RS500-E9-PS4 Intel® C621 LGA 3647 (Socket P) Rack (1U) Grey

ASUS RS500-E9-PS4 Intel® C621 LGA 3647 (Socket P) Rack (1U) Grey

Model RS500-E9-PS4Part no. 90SF00N1-M00240EAN 4718017126953

48 specifications
  • Weight10 kg
  • ColourGrey
  • Built-in processorNo
  • Number of DIMM slots16
  • Number of storage drives supported4
  • On-board graphics card modelAspeed AST2500
See all specifications

Overview

Weight
10 kg
Colour
Grey
Built-in processor
No
Number of DIMM slots
16
Number of storage drives supported
4
On-board graphics card model
Aspeed AST2500
Brand
ASUS
Model
RS500-E9-PS4
Part number
90SF00N1-M00240
EAN / UPC
4718017126953
Also known as
ASUS RS500-E9-PS4 Intel® C621 LGA 3647 (Socket P) Rack (1U) Grey

Specifications

48 specifications in 14 groups

Processor

Built-in processorNo
Motherboard chipsetIntel® C621
Processor socketLGA 3647 (Socket P)
Number of processors supported2
Compatible processor seriesIntel® Xeon®

Memory

Number of DIMM slots16
Supported memory typesDDR4-SDRAM
Maximum internal memory2 TB
Supported RDIMM clock speeds2133,2400,2666 MHz

Storage

Number of storage drives supported4
Hot-swap HDD baysYes
Storage drive sizes supported3.5"
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, Serial Attached SCSI (SAS), Serial ATA III

Graphics

On-board graphics card modelAspeed AST2500
On-board graphics card memory64 MB

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports2
IPMI LAN (RJ-45) portYes
VGA (D-Sub) ports quantity2

Expansion slots

PCI Express x8 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots2

Features

Compatible operating systemsWindows Server 2016 RedHat Enterprise Linux SuSE Linux Enterprise Server CentOS Ubuntu VMware Citrix XenServer

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (1U)
Product colourGrey
LED indicatorsYes
On/off switchYes
Rack railsYes
CertificationBSMI, CE, FCC(Class A)

Power

Power supply650 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating temperature (T-T)10 - 350 °C
Storage relative humidity (H-H)20 - 90%
Storage temperature (T-T)-40 - 70 °C

Weight & dimensions

Depth616 mm
Height44 mm
Weight10 kg
Width444 mm

Packaging data

Package weight16 kg
