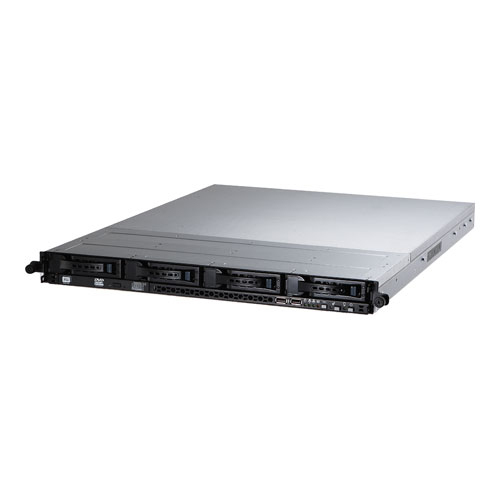

RS500-E6/PS4 Intel® 5500 Socket B (LGA 1366) Rack (1U) Black
Model RS500-E6/PS4Part no. 90S50A0000CC00UETEAN 4719543360361
32 specifications
- Weight15 kg
- ColourBlack
- Motherboard chipsetIntel® 5500
- Number of DIMM slots12
- Number of storage drives supported6
- Maximum graphics card memory8 MB
Overview
- Weight
- 15 kg
- Colour
- Black
- Motherboard chipset
- Intel® 5500
- Number of DIMM slots
- 12
- Number of storage drives supported
- 6
- Maximum graphics card memory
- 8 MB
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS500-E6/PS4
- Part numbers
- 90S50A0000CC00UET, 90S50A0000C110UEZ, RS500-E6/PS4, 90S50A0000C800UEZ
- EAN / UPC
- 4719543360361, 610839679621, 4719543679623, 4719543681169 +4 more
- Also known as
- ASUS RS500-E6/PS4 Intel® 5500 Socket B (LGA 1366) Rack (1U) Black
Specifications
32 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® 5500 |
| Processor socket | Socket B (LGA 1366) |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 12 |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 6 |
| Storage controller | Intel ICH10R |
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® 82574L |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| PS/2 ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
Features
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2008 Enterprise 32/64-bit, Windows Server 2003 R2 Enterprise (32/64 bit), RedHat Enterprise Linux AS5.0 (32/64 bit), SuSE Linux Enterprise Server 10 (32/64 bit) |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power supply | 600 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 615 mm |
| Height | 43.4 mm |
| Weight | 15 kg |
| Width | 444 mm |
Packaging data
| Specification | Value |
|---|---|
| Bundled software | ASWM2.0 |
Other features
| Specification | Value |
|---|---|
| Graphics card | AST2050 |
| Expansion slots | 1 x PIKE |
