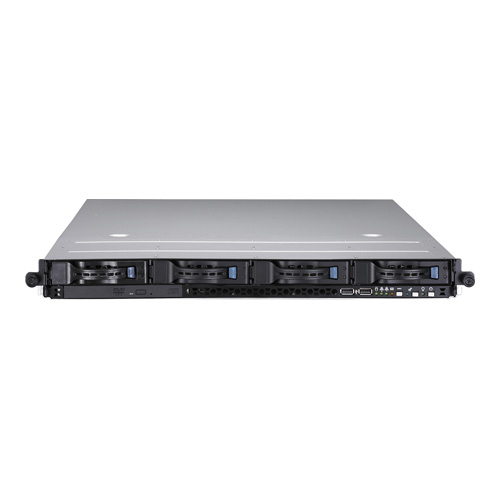

RS160-E4/PA4 server barebone Intel® 5000P LGA 771 (Socket J)
Model RS160-E4/PA4EAN 610839648016
31 specifications
- ProcessorIntel
- Weight15 kg
- Motherboard chipsetIntel® 5000P
- Number of DIMM slots8
- Number of storage drives supported4
- Maximum graphics card memory32 MB
Overview
- Processor
- Intel
- Weight
- 15 kg
- Motherboard chipset
- Intel® 5000P
- Number of DIMM slots
- 8
- Number of storage drives supported
- 4
- Maximum graphics card memory
- 32 MB
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS160-E4/PA4
- Part numbers
- RS160-E4/PA4, 90S4AA0000C110UET
- EAN / UPC
- 610839648016, 4719543648018
- Also known as
- ASUS RS160-E4/PA4 server barebone Intel® 5000P LGA 771 (Socket J)
Specifications
31 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® 5000P |
| Processor socket | LGA 771 (Socket J) |
| Processor family | Intel |
| Supported processor frequency (max) | 1.333 GHz |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 8 |
| Maximum internal memory | 32 GB |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 4 |
| Storage controller | Intel 6321ESB |
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 32 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® 82563EB |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| PS/2 ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 2 |
Features
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2003 R2 Enterprise 32/64-bit, RedHat Enterprise Linux AS3.0 32/64-bit, RedHat Enterprise Linux AS4.0 32/64-bit, SuSE Linux Enterprise Server 9 32/64-bit |
Power
| Specification | Value |
|---|---|
| Power supply | 650 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 686 mm |
| Height | 43.4 mm |
| Weight | 15 kg |
| Width | 444 mm |
Packaging data
| Specification | Value |
|---|---|
| Bundled software | ASWM2.0 |
Other features
| Specification | Value |
|---|---|
| Graphics card | ES1000 |
