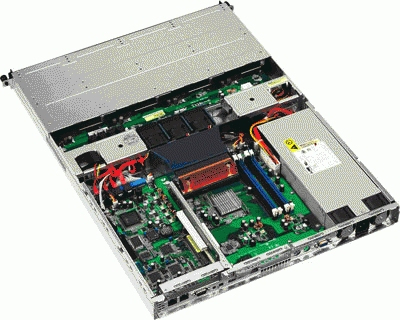

RS120-E5/PA4 Intel® 3200 LGA 775 (Socket T) Rack (1U)
Model RS120-E5/PA4EAN 6108396524712
29 specifications
- ProcessorIntel
- Weight12 kg
- Motherboard chipsetIntel® 3200
- Number of DIMM slots4
- Storage controllerIntel ICH7R
- Maximum graphics card memory32 MB
Overview
- Processor
- Intel
- Weight
- 12 kg
- Motherboard chipset
- Intel® 3200
- Number of DIMM slots
- 4
- Storage controller
- Intel ICH7R
- Maximum graphics card memory
- 32 MB
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS120-E5/PA4
- Part numbers
- RS120-E5/PA4, RS120-E5-PA4, 90S4FA0000C210UET
- EAN / UPC
- 6108396524712, 610839660810, 610839652273, 610839658268 +3 more
- Also known as
- ASUS RS120-E5/PA4 Intel® 3200 LGA 775 (Socket T) Rack (1U)
Specifications
29 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® 3200 |
| Processor socket | LGA 775 (Socket T) |
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 4 |
| Maximum internal memory | 8 GB |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Storage controller | Intel ICH7R |
| RAID levels | 0, 1, 5 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 32 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom BCM5721 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| PS/2 ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
Features
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2003 R2 Enterprise (32/64-bit)/RedHat Enterprise Linux AS4.0 (2/64-bit)/SuSE Linux Enterprise Server 10 (32/64-bit). |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
Power
| Specification | Value |
|---|---|
| Power supply | 315 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 444 mm |
| Height | 43.6 mm |
| Weight | 12 kg |
| Width | 600 mm |
