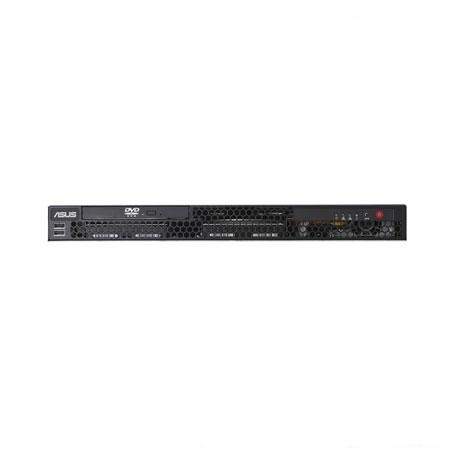

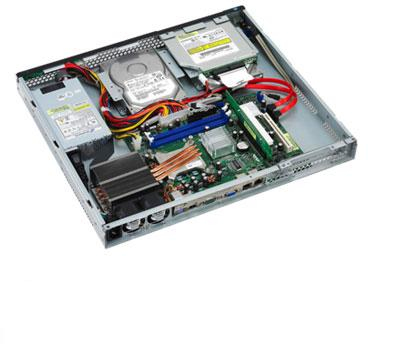

RS100-X5/PI2 1U Compact Server
Model RS100-X5/PI2 1U Compact ServerPart no. 90S4IA0000C810UETEAN 610839652099
27 specifications
- ProcessorIntel
- Weight6.2 kg
- ColourBlack
- Processor socketLGA 775 (Socket T)
- Number of DIMM slots2
- Ethernet LANYes
Overview
- Processor
- Intel
- Weight
- 6.2 kg
- Colour
- Black
- Processor socket
- LGA 775 (Socket T)
- Number of DIMM slots
- 2
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS100-X5/PI2 1U Compact Server
- Part numbers
- 90S4IA0000C810UET, RS100-X5/PI2
- EAN / UPC
- 610839652099, 4719543652091
- Also known as
- ASUS RS100-X5/PI2 1U Compact Server LGA 775 (Socket T) Rack (1U) Black
Specifications
27 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor socket | LGA 775 (Socket T) |
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 2 |
| Maximum internal memory | 2 GB |
| ECC | No |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| PS/2 ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
Features
| Specification | Value |
|---|---|
| Compatible operating systems | - Windows Server 2003 R2 Standard 32/64-bit - RedHat Enterprise Linux AS4.0 32/64-bit - SuSE Linux Enterprise Server 10 32/64-bit |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power supply | 180 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | 10 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 380 mm |
| Height | 43.4 mm |
| Weight | 6.2 kg |
| Width | 430 mm |
Packaging data
| Specification | Value |
|---|---|
| Bundled software | ASWM2.0 |
Other features
| Specification | Value |
|---|---|
| Graphics card | GMA 950 |
