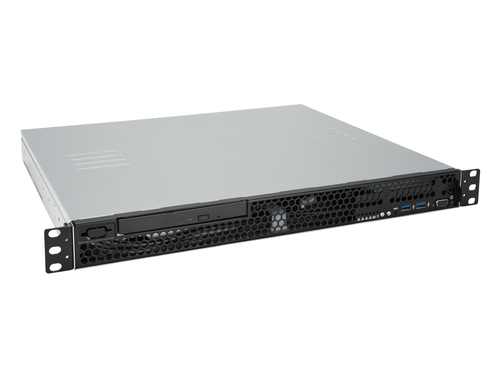

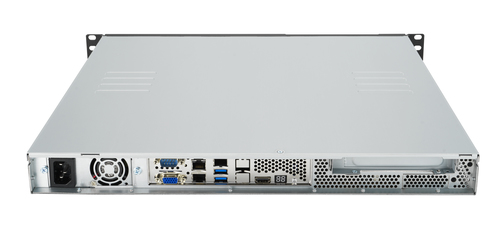

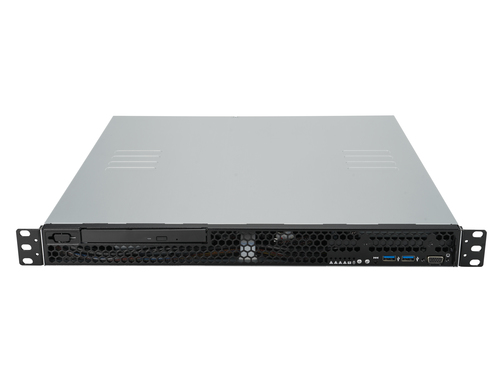

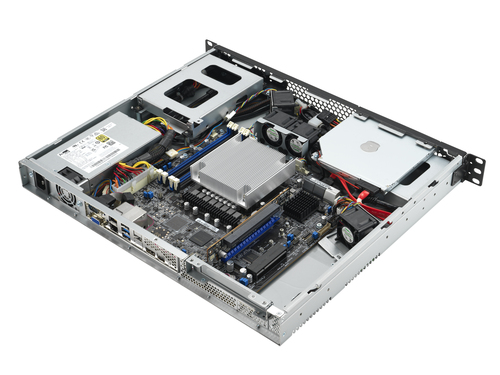

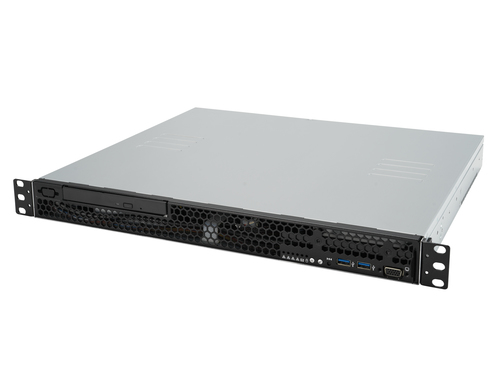

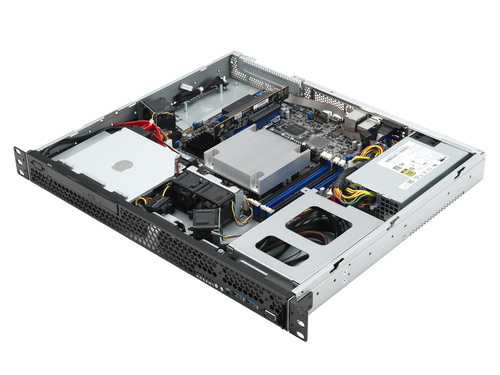

RS100-E11-PI2 Intel C252 LGA 1200 (Socket H5) Rack (1U) Silver
Model RS100-E11-PI2Part no. 90SF02P1-M00110EAN 4054318843343
46 specifications
- ProcessorIntel® Xeon®
- Weight7.5 kg
- ColourSilver
- Built-in processorNo
- Number of DIMM slots4
- Storage drive sizes supported2.5,3.5,M.2
Overview
- Processor
- Intel® Xeon®
- Weight
- 7.5 kg
- Colour
- Silver
- Built-in processor
- No
- Number of DIMM slots
- 4
- Storage drive sizes supported
- 2.5,3.5,M.2
- Brand
- ASUS
- Category
- Server Barebone
- Model
- RS100-E11-PI2
- Part number
- 90SF02P1-M00110
- EAN / UPC
- 4054318843343, 4711081932116
- Also known as
- ASUS RS100-E11-PI2 Intel C252 LGA 1200 (Socket H5) Rack (1U) Silver
Specifications
46 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Motherboard chipset | Intel C252 |
| Processor socket | LGA 1200 (Socket H5) |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Number of processors supported | 1 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 4GB, 8GB, 16GB, 32GB |
| Maximum UDIMM memory | 128 GB |
| Supported UDIMM clock speeds | 2666,3200 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Supported storage drive types | HDD & SSD |
| RAID levels | 0, 1, 5, 10 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card memory | 64 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
| COM ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 4.0 |
| Number of M.2 (M) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Silver |
| LED indicators | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| Certification | BSMI, CE, FCC(Class A) |
Power
| Specification | Value |
|---|---|
| Power supply | 350 W |
| 80 PLUS certification | 80 PLUS Gold |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 430 mm |
| Height | 44 mm |
| Weight | 7.5 kg |
| Width | 380 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 11.7 kg |
