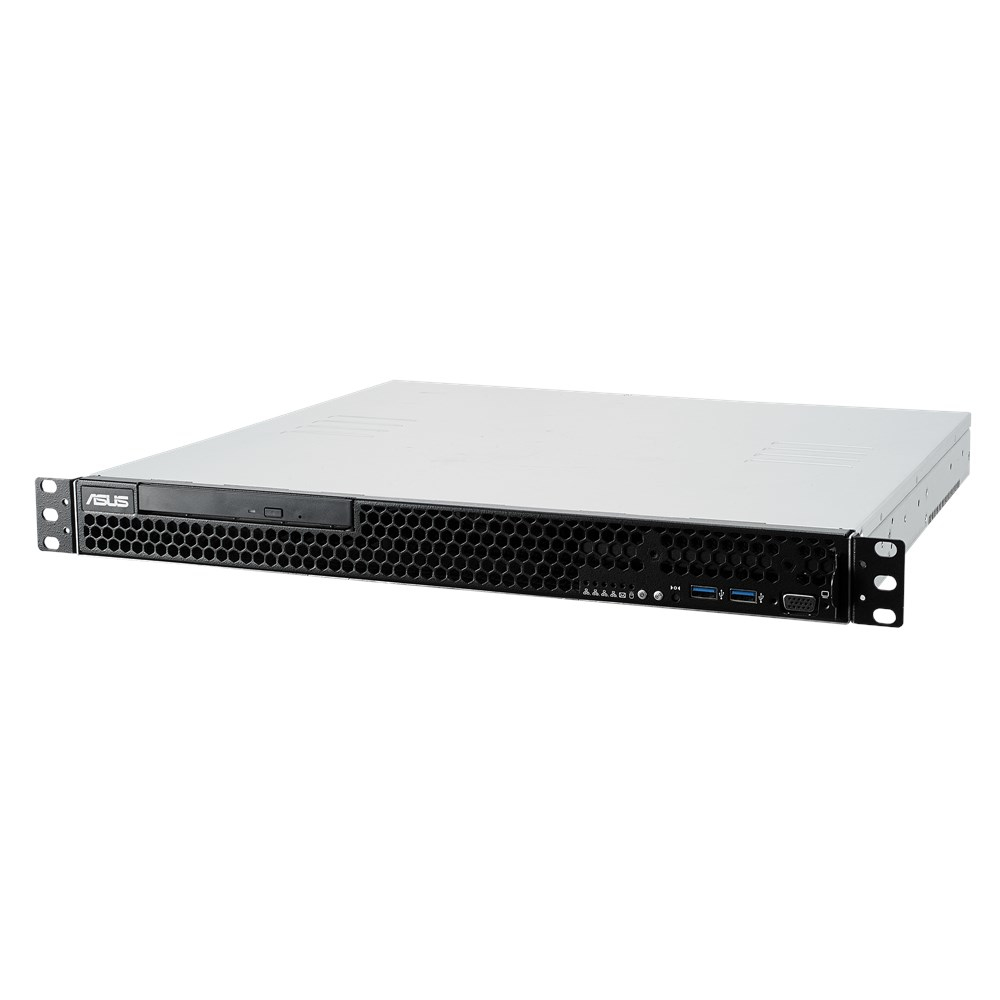

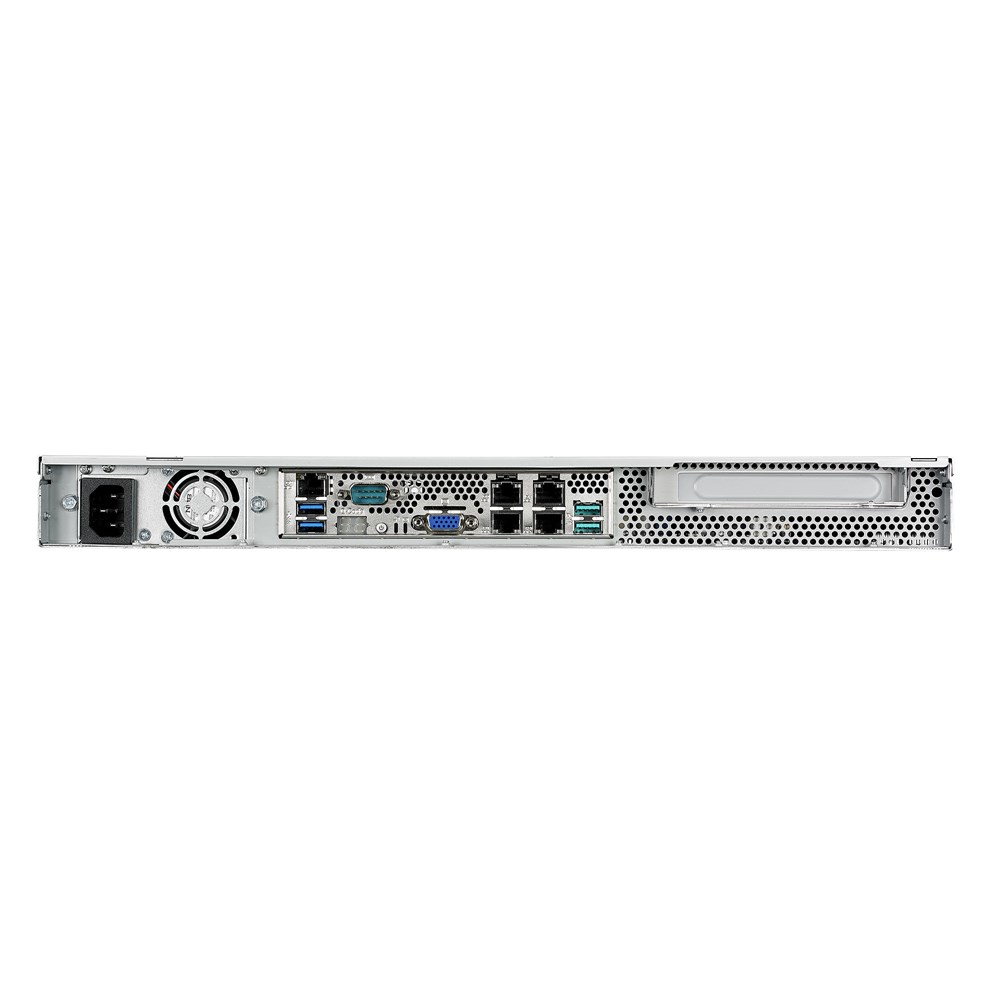

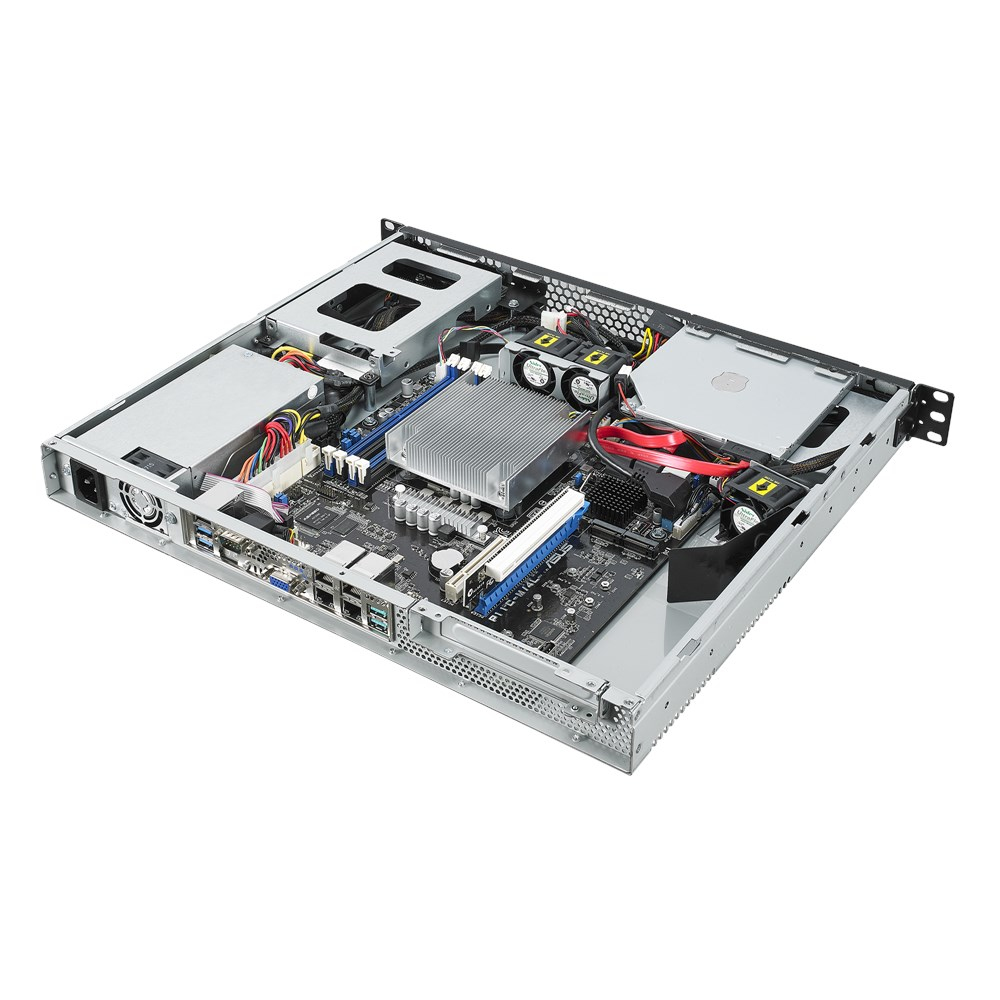

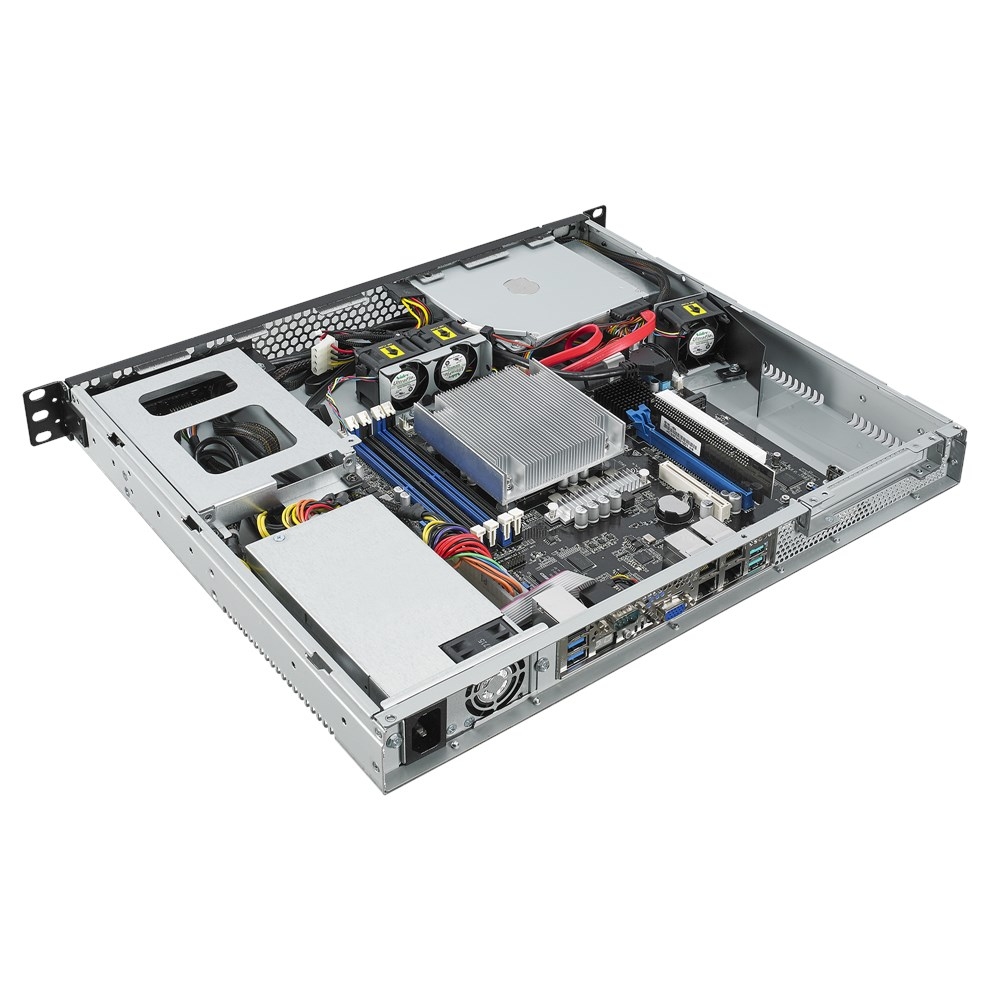

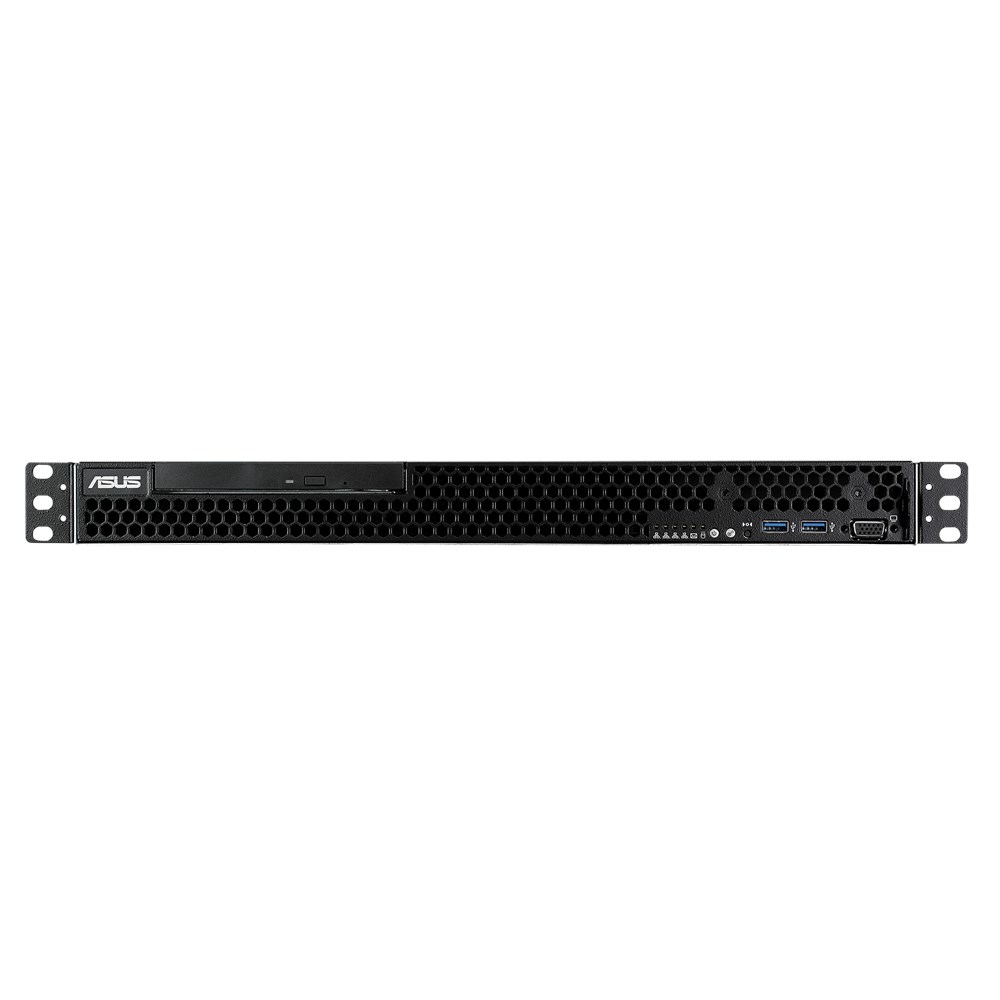

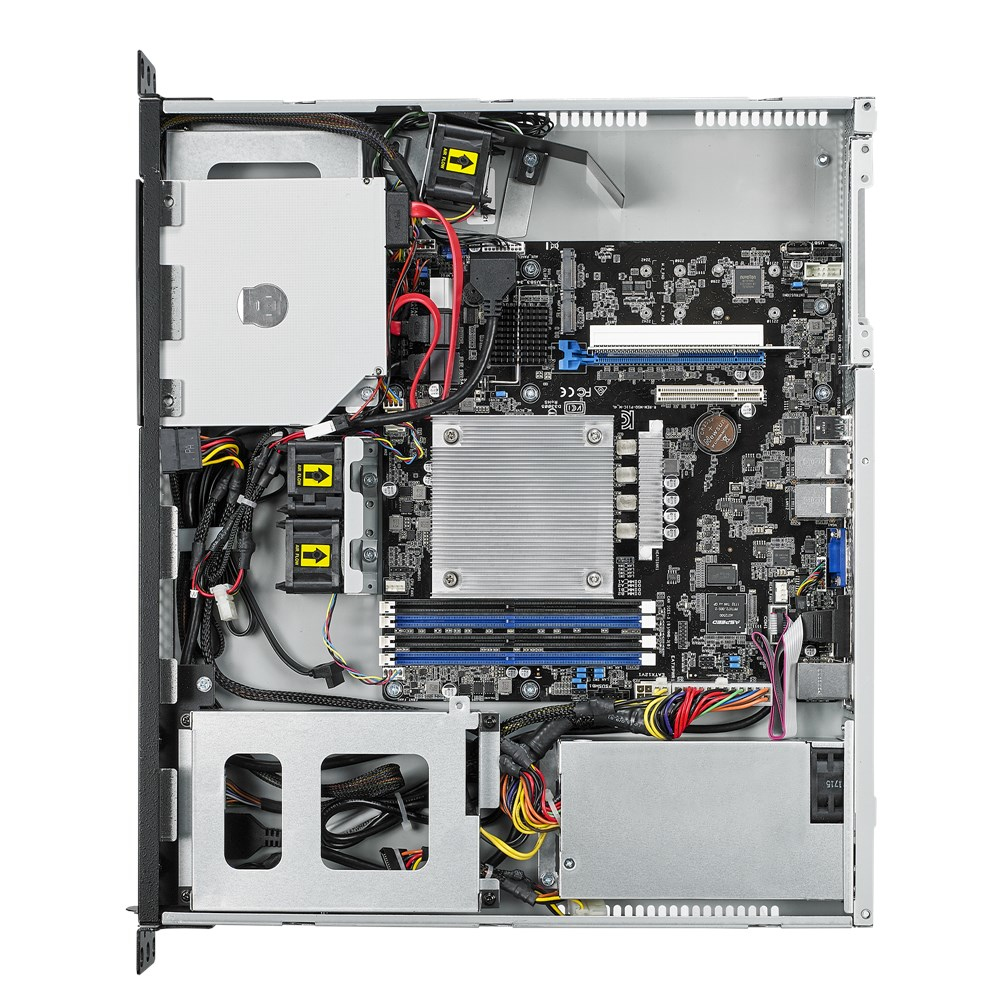

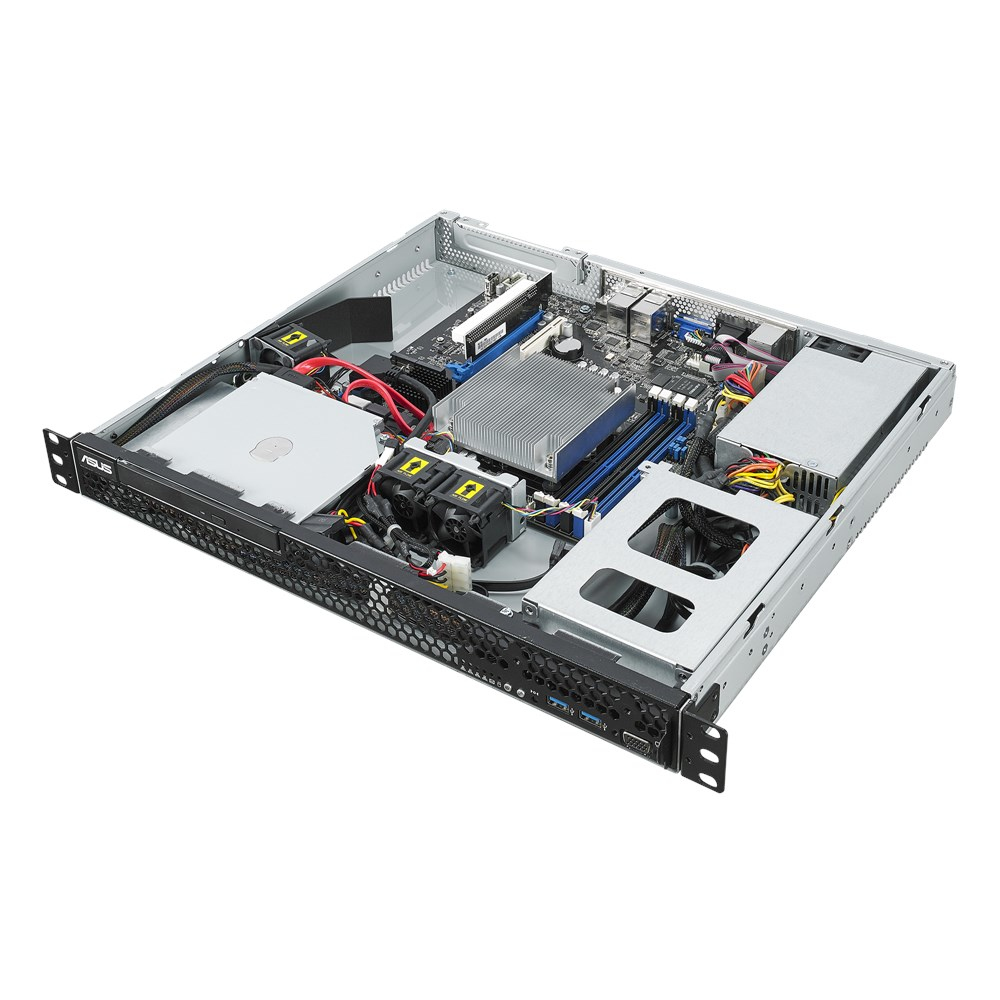

ASUS RS100-E10-PI2 Intel C242 LGA 1151 (Socket H4) Rack (1U) Black, Metallic

ASUS RS100-E10-PI2 Intel C242 LGA 1151 (Socket H4) Rack (1U) Black, Metallic

Model RS100-E10-PI2Part no. 90SF00G1-M01510EAN 4711081262572

54 specifications
  • Weight7.5 kg
  • ColourBlack, Metallic
  • Built-in processorNo
  • Number of DIMM slots4
  • Number of storage drives supported2
  • On-board graphics card modelAspeed AST2500
See all specifications

Overview

Weight
7.5 kg
Colour
Black, Metallic
Built-in processor
No
Number of DIMM slots
4
Number of storage drives supported
2
On-board graphics card model
Aspeed AST2500
Brand
ASUS
Model
RS100-E10-PI2
Part numbers
90SF00G1-M01510, 90SF00G1-M00050, 90SF00G1-M01440, 90SF00G1-M01310
EAN / UPC
4711081262572, 192876208366, 195553139731, 4172017147293 +3 more
Also known as
ASUS RS100-E10-PI2 Intel C242 LGA 1151 (Socket H4) Rack (1U) Black, Metallic

Specifications

54 specifications in 14 groups

Processor

Built-in processorNo
Motherboard chipsetIntel C242
Processor socketLGA 1151 (Socket H4)
Number of processors supported1
Compatible processor seriesIntel® Xeon®

Memory

Number of DIMM slots4
Supported memory typesDDR4-SDRAM
Supported DIMM module capacities4GB, 8GB, 16GB
Maximum internal memory64 GB
Maximum UDIMM memory64 GB
Supported UDIMM clock speeds2400,2666 MHz
ECCYes
Non-ECCYes

Storage

Number of storage drives supported2
Hot-swap HDD baysNo
Storage drive sizes supported2.5,3.5,M.2
Supported storage drive interfacesM.2, Serial ATA III
RAID levels0, 1, 5, 10

Graphics

On-board graphics card modelAspeed AST2500
On-board graphics card memory64 MB

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates1000 Mbit/s
LAN controllerIntel I210

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LAN (RJ-45) ports4
IPMI LAN (RJ-45) portYes
VGA (D-Sub) ports quantity1
Number of SATA III connectors6

Expansion slots

PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots2

Features

Compatible operating systemsWindows Server 2016 RedHat Enterprise Linux SuSE Linux Enterprise Server CentOS Vmware Citrix XenServer

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (1U)
Product colourBlack, Metallic
LED indicatorsAlarm, HDD, LAN, Power
On/off switchYes
Reset buttonYes
CertificationBSMI, CE, C-Tick, FCC(Class B)

Power

Power supply250 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current4 A
80 PLUS certification80 PLUS Bronze

Operational conditions

Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%
Storage temperature (T-T)-40 - 70 °C

Weight & dimensions

Depth380 mm
Height44 mm
Weight7.5 kg
Width430 mm

Packaging data

Package weight11.7 kg
