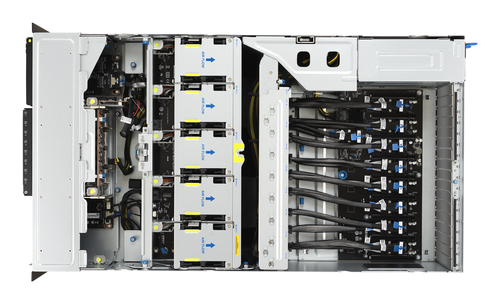

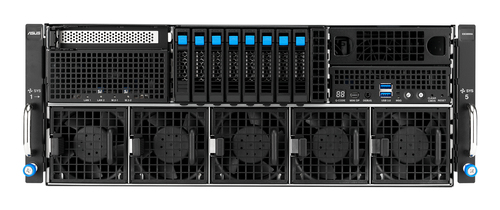

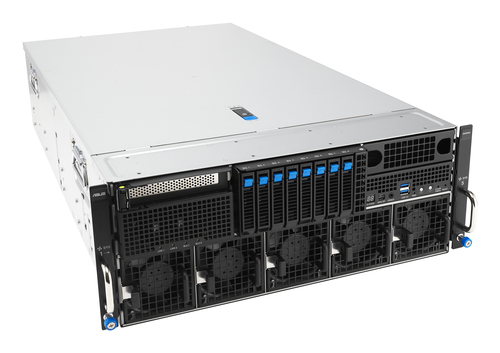

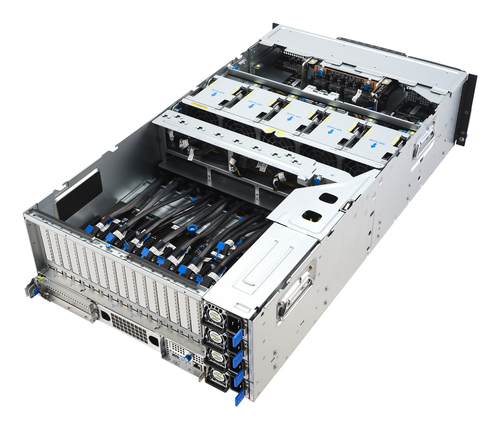

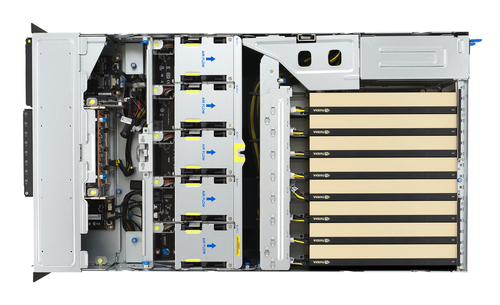

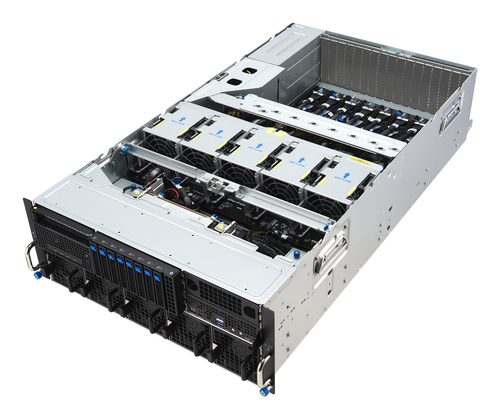

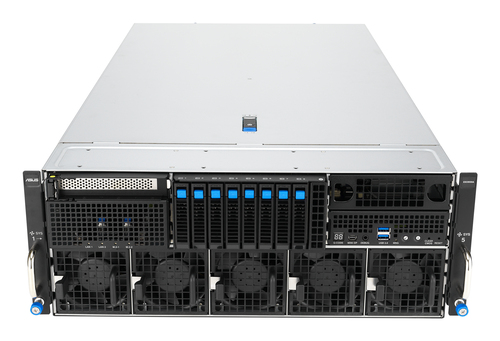

ESC8000A-E13 LGA 6096 Rack (4U) Silver
Model ESC8000A-E13Part no. 90SF0402-M00790EAN 4711636035514
37 specifications
- ProcessorAMD EPYC
- Weight42 kg
- ColourSilver
- Built-in processorNo
- Number of DIMM slots24
- Number of storage drives supported8
Overview
- Processor
- AMD EPYC
- Weight
- 42 kg
- Colour
- Silver
- Built-in processor
- No
- Number of DIMM slots
- 24
- Number of storage drives supported
- 8
- Brand
- ASUS
- Category
- Server Barebone
- Model
- ESC8000A-E13
- Part numbers
- 90SF0402-M00790, 90SF0402-M00ZS0
- EAN / UPC
- 4711636035514, 4711636268899
- Also known as
- ASUS ESC8000A-E13 LGA 6096 Rack (4U) Silver
Specifications
37 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor socket | LGA 6096 |
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Number of processors supported | 2 |
| Compatible processor series | AMD EPYC 9005 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 24 |
| Supported memory types | DDR5-SDRAM |
| Supported DIMM module capacities | 16GB, 32GB, 64GB, 128GB |
| Maximum internal memory | 3 TB |
| Supported RDIMM clock speeds | 6400,5600 MHz |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 8 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5" |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| IPMI LAN (RJ-45) port | Yes |
| Mini DisplayPorts quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 11 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (4U) |
| Product colour | Silver |
| LED indicators | Yes |
| Certification | BSMI, CB, CE, FCC(Class A), RCM |
Power
| Specification | Value |
|---|---|
| Power supply | 3200 W |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 4 |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| 80 PLUS certification | 80 PLUS Titanium |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 439.5 mm |
| Height | 175 mm |
| Weight | 42 kg |
| Width | 800 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 44.2 kg |
