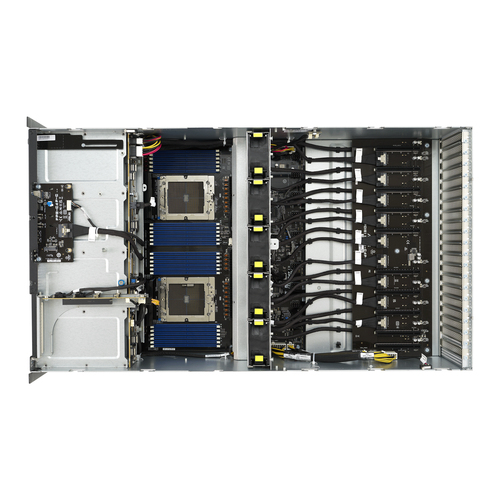

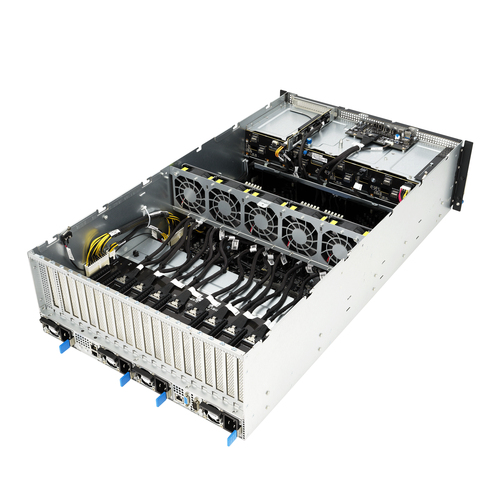

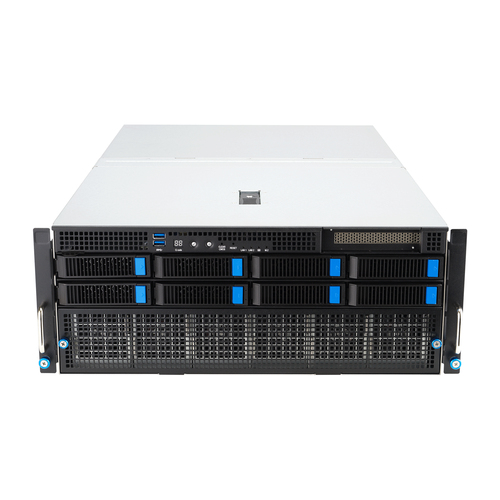

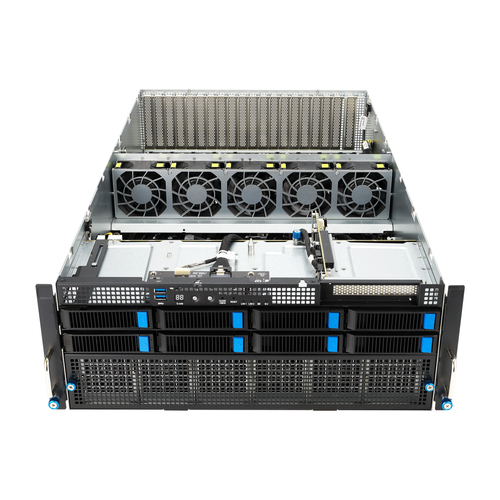

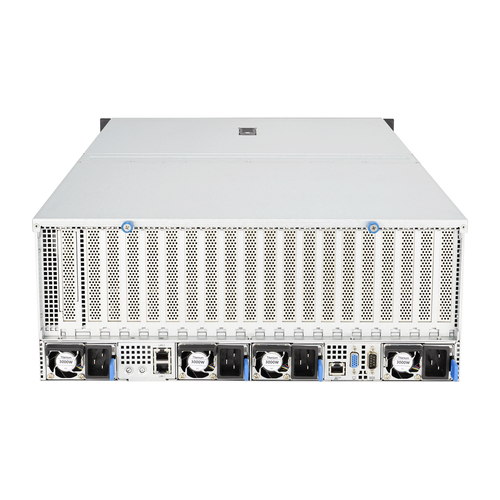

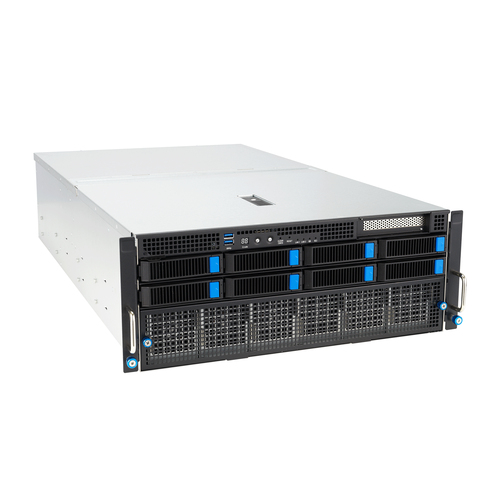

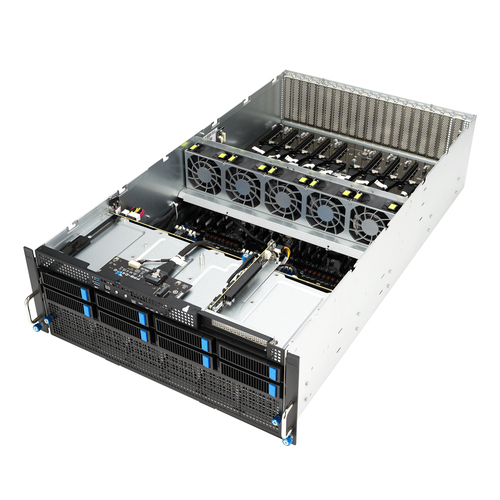

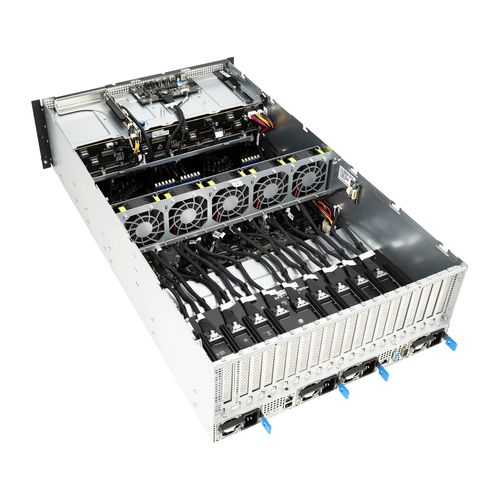

ESC8000A-E12 LGA 6096 Rack (4U) Silver
Model ESC8000A-E12Part no. 90SF02H2-M014W0
43 specifications
- Weight27 kg
- ColourSilver
- Built-in processorNo
- Number of DIMM slots24
- Number of storage drives supported9
- Ethernet LANYes
Overview
- Weight
- 27 kg
- Colour
- Silver
- Built-in processor
- No
- Number of DIMM slots
- 24
- Number of storage drives supported
- 9
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Server Barebone
- Model
- ESC8000A-E12
- Part number
- 90SF02H2-M014W0
- Also known as
- ASUS ESC8000A-E12 LGA 6096 Rack (4U) Silver
Specifications
43 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor socket | LGA 6096 |
| Number of processors supported | 2 |
| Compatible processor series | AMD EPYC 9004 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 24 |
| Supported memory types | DDR5-SDRAM |
| Supported DIMM module capacities | 256GB, 16GB, 32GB, 64GB, 128GB |
| Maximum internal memory | 6 TB |
| Supported RDIMM clock speeds | 4400,4800 MHz |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 9 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5,3.5" |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel® I350 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 2 |
| PCI Express x16 slots | 9 |
| Number of M.2 (M) slots | 1 |
Features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (4U) |
| Product colour | Silver |
Power
| Specification | Value |
|---|---|
| Power supply | 3000 W |
| Number of main power supplies | 4 |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| 80 PLUS certification | 80 PLUS Titanium |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 440 mm |
| Height | 174.5 mm |
| Weight | 27 kg |
| Width | 800 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 52 kg |
