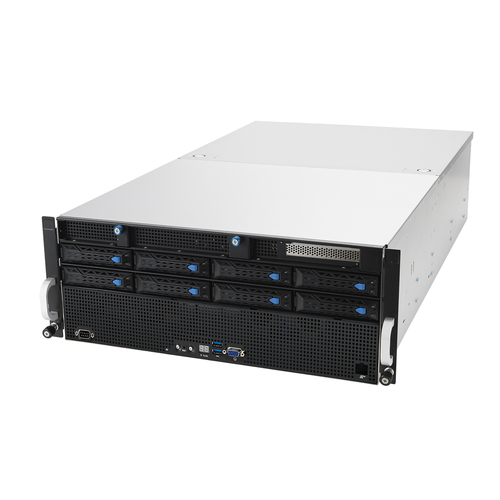

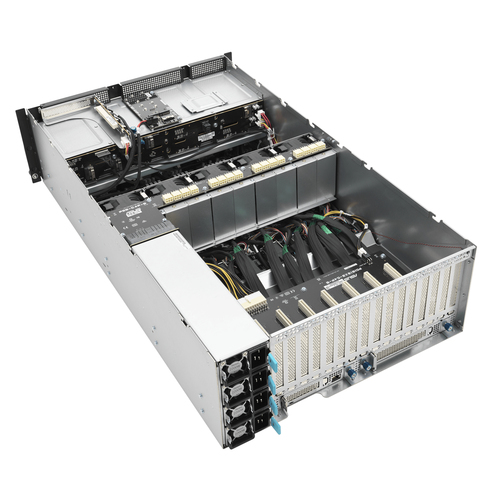

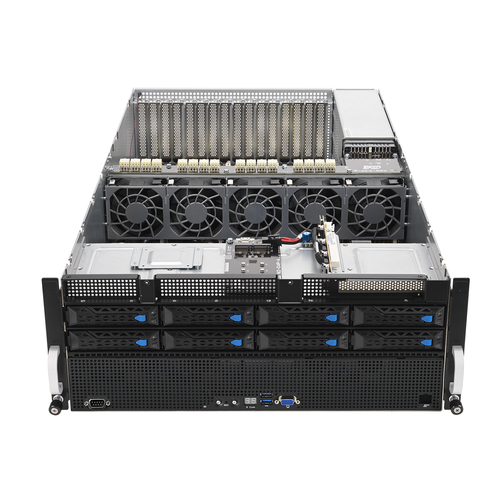

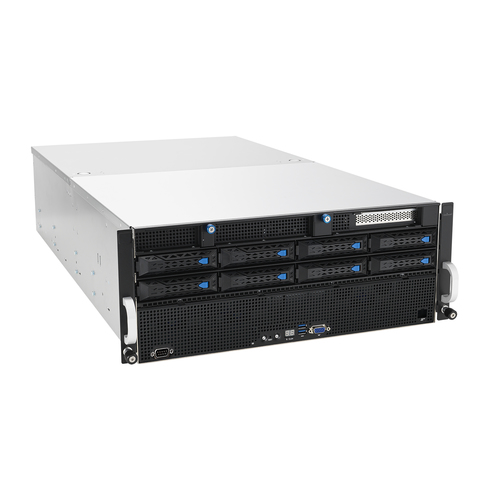

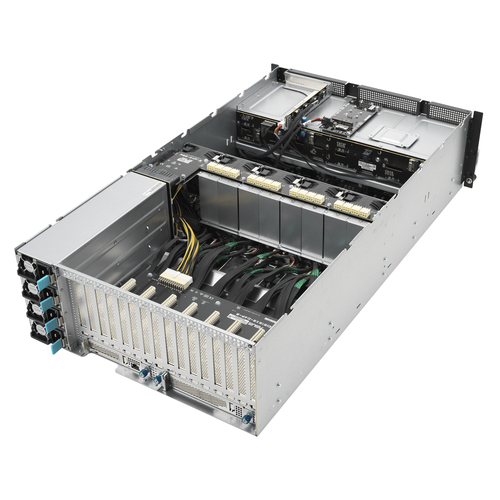

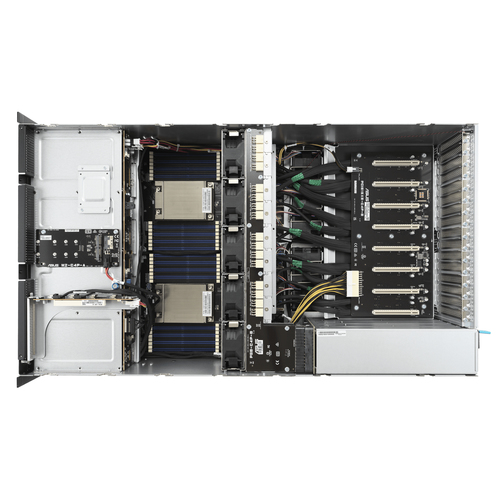

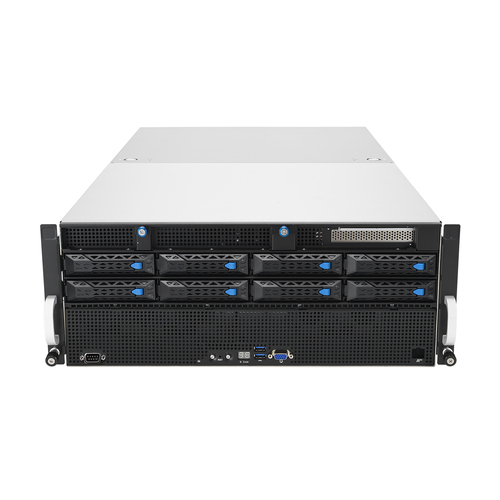

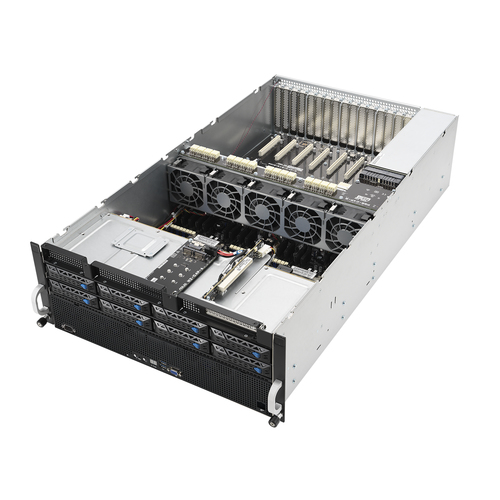

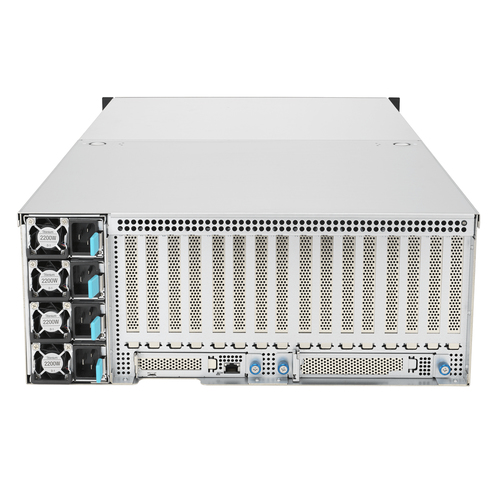

ESC8000A-E11 Socket SP3 Rack (4U) Silver
Model ESC8000A-E11Part no. 90SF0214-M002J0EAN 4711081886488
33 specifications
- GraphicsNot available
- Weight39 kg
- ColourSilver
- Built-in processorYes
- Number of DIMM slots32
- Number of storage drives supported8
Overview
- Graphics
- Not available
- Weight
- 39 kg
- Colour
- Silver
- Built-in processor
- Yes
- Number of DIMM slots
- 32
- Number of storage drives supported
- 8
- Brand
- ASUS
- Category
- Server Barebone
- Model
- ESC8000A-E11
- Part numbers
- 90SF0214-M002J0, 90SF0214-M000V0, 90SF0212-M00970
- EAN / UPC
- 4711081886488, 4711081583226, 4711081497257
- Also known as
- ASUS ESC8000A-E11 Socket SP3 Rack (4U) Silver
Specifications
33 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor socket | Socket SP3 |
| Number of processors supported | 2 |
| Compatible processor series | AMD EPYC 7003 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 32 |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 16GB, 32GB, 64GB, 128GB |
| Maximum internal memory | 8 TB |
| Supported RDIMM clock speeds | 3200 MHz |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 8 |
| Hot-swap HDD bays | Yes |
| Number of 3.5" bays | 8 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Not available |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 8 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (4U) |
| Product colour | Silver |
Power
| Specification | Value |
|---|---|
| Power supply | 2200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 14 A |
| 80 PLUS certification | 80 PLUS Titanium |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 440 mm |
| Height | 175.6 mm |
| Weight | 39 kg |
| Width | 800 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 49 kg |
