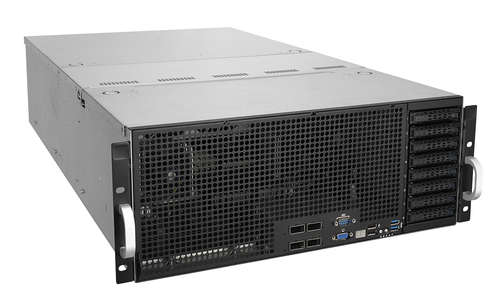

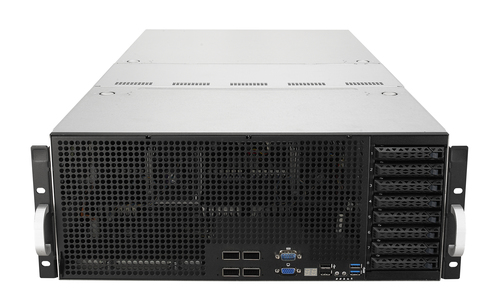

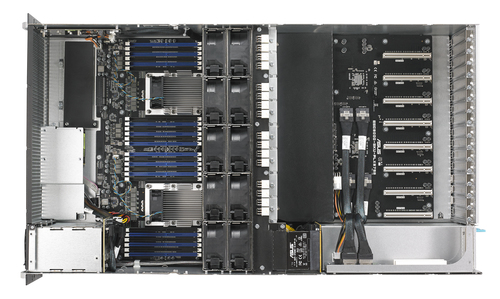

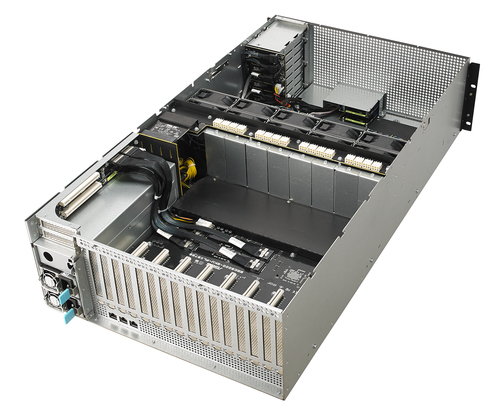

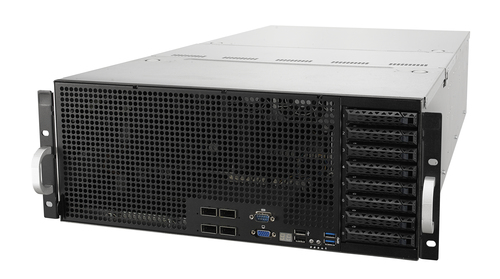

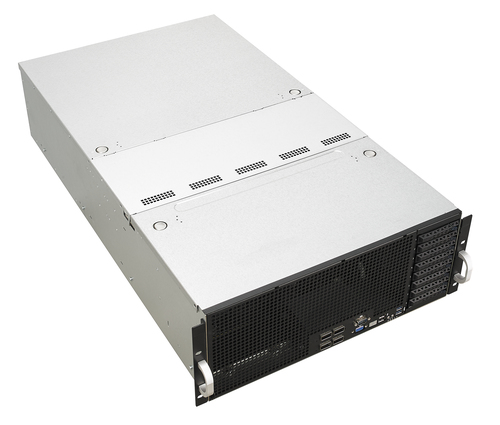

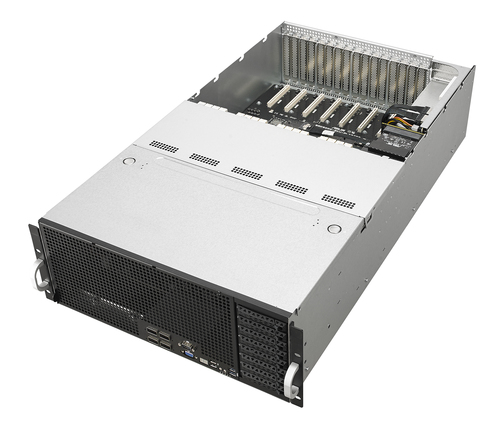

ASUS ESC8000 G4/10G
ASUS

ESC8000 G4/10G

Model ESC8000 G4/10GPart no. 90SF00H1-M01630EAN 4718017331166

40 specifications
  • ProcessorIntel® Xeon® Scalable
  • ColourBlack, Silver
  • Motherboard chipsetIntel® C621
  • Number of DIMM slots24
  • Number of storage drives supported10
  • On-board graphics card modelAspeed AST2500
See all specifications

Overview

Processor
Intel® Xeon® Scalable
Colour
Black, Silver
Motherboard chipset
Intel® C621
Number of DIMM slots
24
Number of storage drives supported
10
On-board graphics card model
Aspeed AST2500
Brand
ASUS
Model
ESC8000 G4/10G
Part numbers
90SF00H1-M01630, 90SF00H1-M05030
EAN / UPC
4718017331166, 4711081018186
Also known as
ASUS ESC8000 G4/10G Intel® C621 LGA 3647 (Socket P) Rack (4U) Black, Silver

Specifications

40 specifications in 12 groups

Processor

Motherboard chipsetIntel® C621
Processor socketLGA 3647 (Socket P)
Processor familyIntel® Xeon® Scalable
Number of processors supported2

Memory

Number of DIMM slots24
Supported memory typesDDR4-SDRAM
Supported DIMM module capacities16GB, 32GB, 64GB, 128GB
Maximum internal memory3 TB
Supported RDIMM clock speeds2133,2400,2666,2933 MHz

Storage

Number of storage drives supported10
Hot-swap HDD baysYes
Storage drive sizes supported2.5"
RAID levels0, 1, 5, 10

Graphics

On-board graphics card modelAspeed AST2500
On-board graphics card memory64 MB

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet
LAN controllerIntel® X550-AT2

Ports & interfaces

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1
COM ports quantity1

Expansion slots

PCI Express slots version3.0
PCI Express x16 (Gen 3.x) slots8

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (4U)
Product colourBlack, Silver
LED indicatorsHDD, LAN, Power
CertificationBSMI, CE, FCC (Class A)

Power

Power supply1600 W
Redundant power supply (RPS) supportYes
AC input frequency47 - 63 Hz
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%
Storage temperature (T-T)-40 - 70 °C

Weight & dimensions

Depth798 mm
Height175.6 mm
Width439 mm
