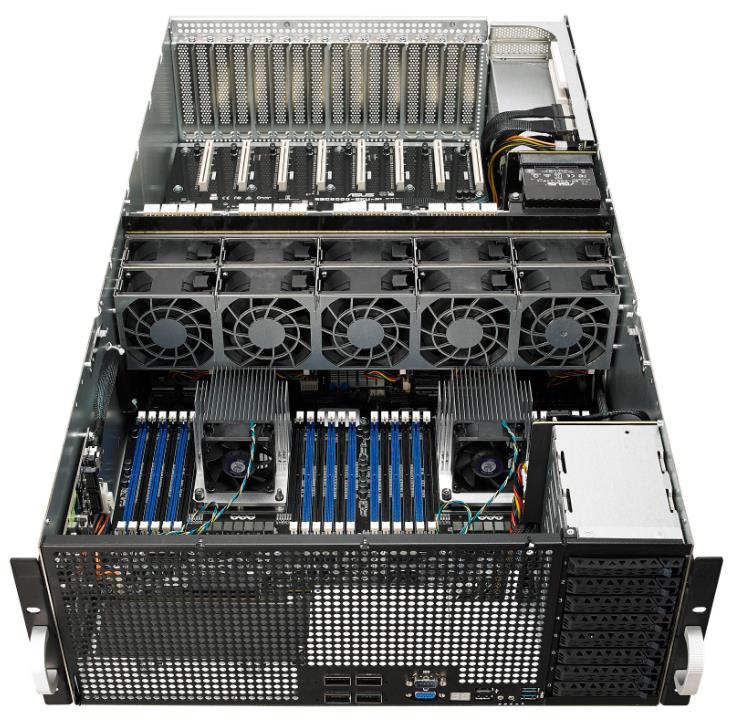

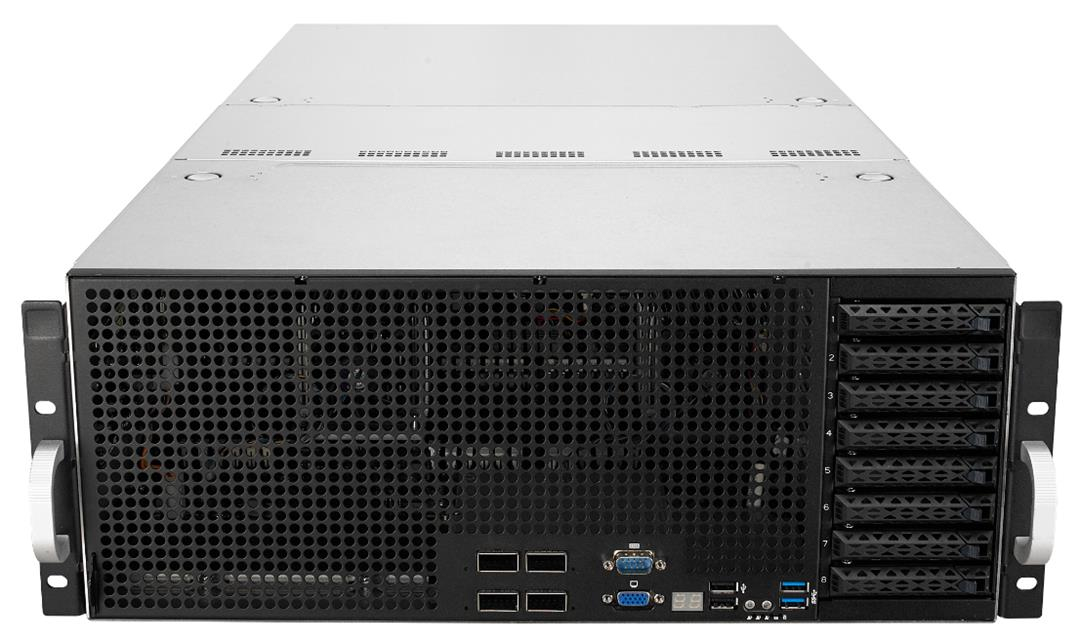

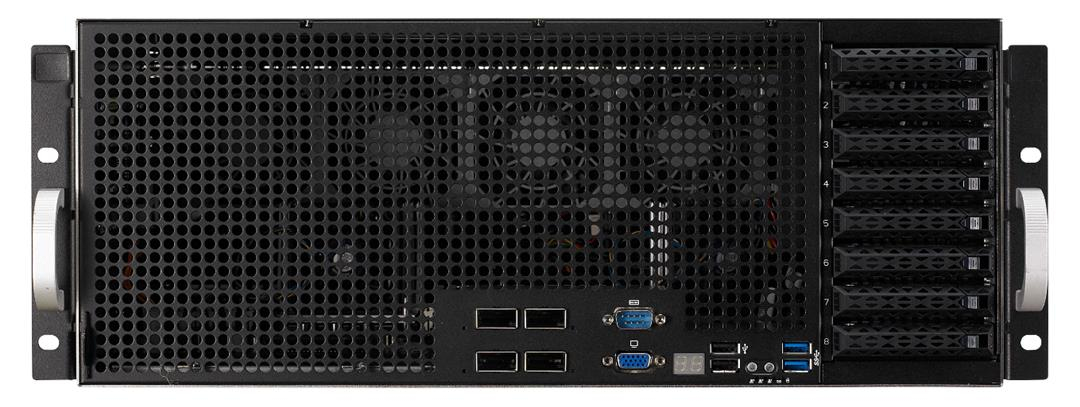

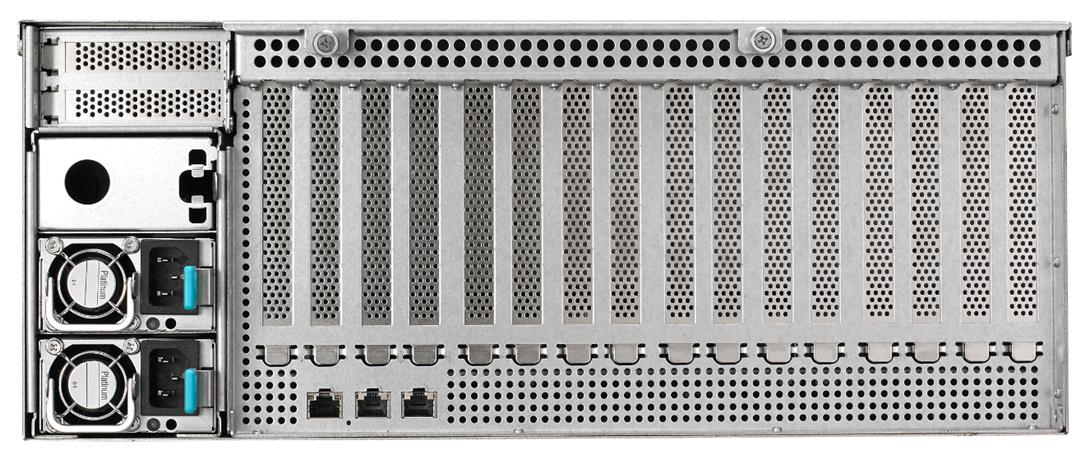

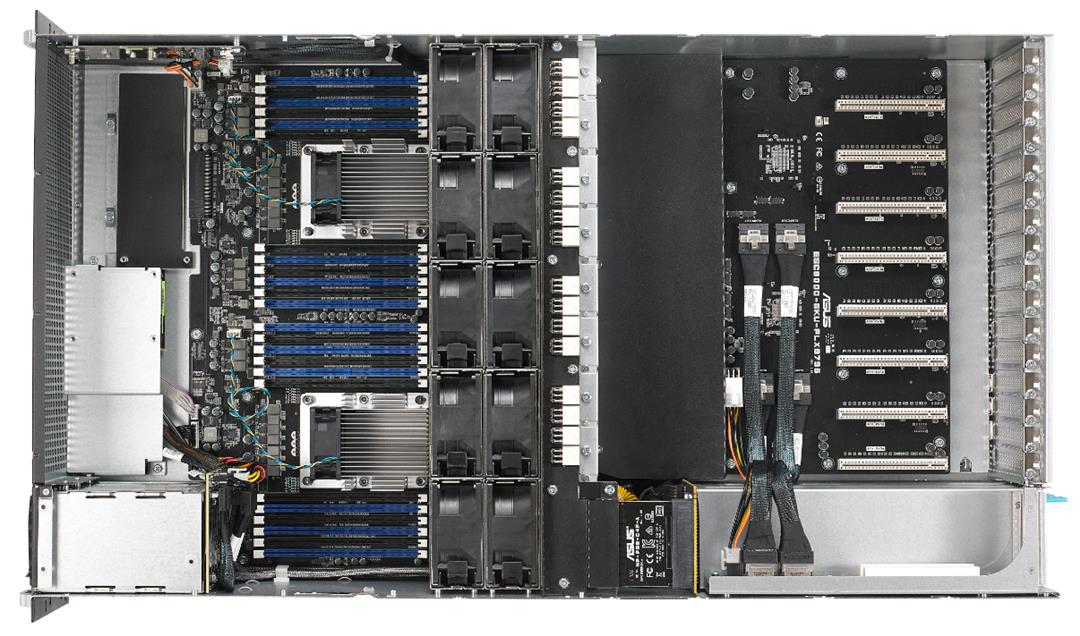

ASUS ESC8000 G4

ASUS ESC8000 G4

Model ESC8000 G4Part no. 90SF00H1-M05560EAN 4711081243366

38 specifications
  • ColourBlack, Stainless steel
  • Built-in processorNo
  • Number of DIMM slots24
  • Number of storage drives supported10
  • On-board graphics card modelAspeed AST2500
  • Ethernet LANYes
See all specifications

Overview

Colour
Black, Stainless steel
Built-in processor
No
Number of DIMM slots
24
Number of storage drives supported
10
On-board graphics card model
Aspeed AST2500
Ethernet LAN
Yes
Brand
ASUS
Model
ESC8000 G4
Part numbers
90SF00H1-M05560, 90SF00H1-M00080, 90SF00H1-M00380, 90SF00H1-M04960
EAN / UPC
4711081243366, 889349997345, 4712900954005, 4718017058483 +1 more
Also known as
ASUS ESC8000 G4 LGA 3647 (Socket P) Rack (4U) Black, Stainless steel

Specifications

38 specifications in 11 groups

Processor

Built-in processorNo
Processor socketLGA 3647 (Socket P)
Number of processors supported2
Compatible processor seriesIntel® Xeon®

Memory

Number of DIMM slots24
Supported memory typesDDR4-SDRAM
Supported DIMM module capacities8GB, 16GB, 32GB, 64GB, 128MB
Maximum internal memory3 TB
Supported RDIMM clock speeds2133,2400,2666 MHz

Storage

Number of storage drives supported10
Hot-swap HDD baysYes
Supported storage drive interfacesM.2, Serial ATA III
RAID levels0, 1, 5, 10

Graphics

On-board graphics card modelAspeed AST2500
On-board graphics card memory64 MB

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1
COM ports quantity1

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (4U)
Product colourBlack, Stainless steel
CertificationBSMI, CE, FCC(Class A)

Power

Power supply1600 W
AC input voltage100 - 240 V
AC input frequency47 - 63 Hz
80 PLUS certification80 PLUS

Operational conditions

Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%
Storage temperature (T-T)-40 - 70 °C

Weight & dimensions

Depth798 mm
Height175.6 mm
Width439 mm
