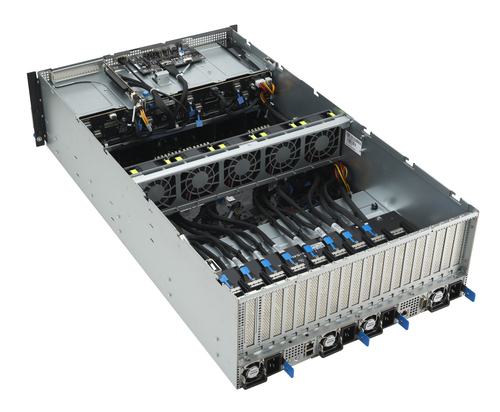

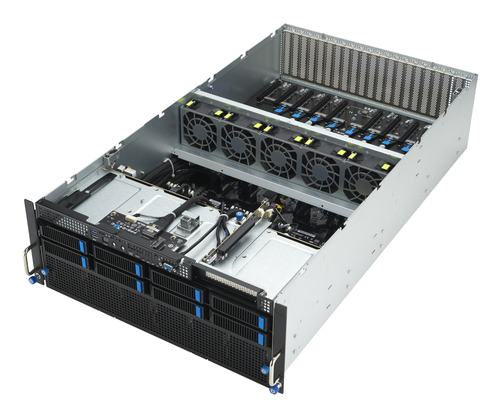

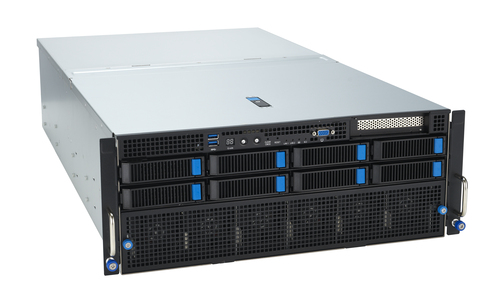

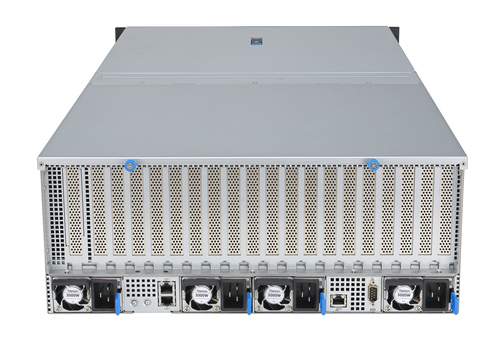

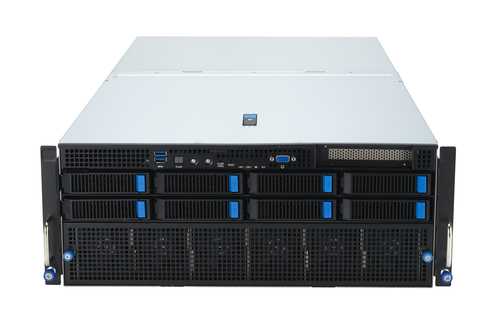

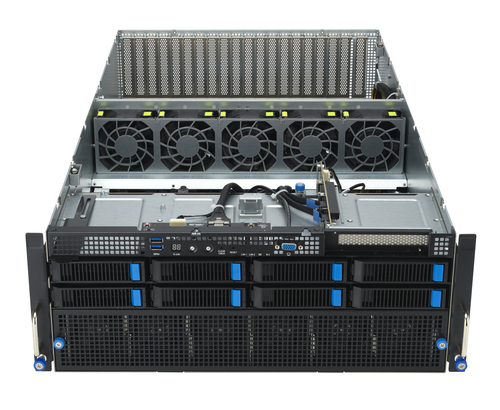

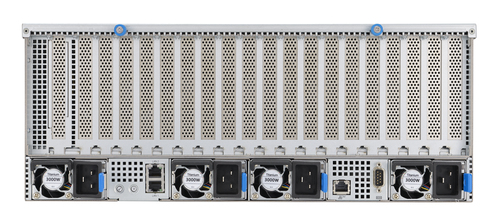

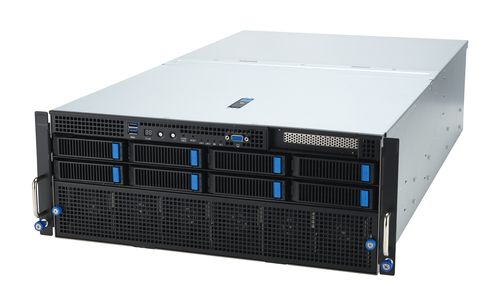

ESC8000-E11 Rack (4U) Grey
Model ESC8000-E11Part no. 90SF02I2-M003E0EAN 4711387206331
42 specifications
- ProcessorIntel® Xeon® Scalable
- Weight27 kg
- ColourGrey
- Processor manufacturerIntel
- Number of DIMM slots32
- Number of storage drives supported9
Overview
- Processor
- Intel® Xeon® Scalable
- Weight
- 27 kg
- Colour
- Grey
- Processor manufacturer
- Intel
- Number of DIMM slots
- 32
- Number of storage drives supported
- 9
- Brand
- ASUS
- Category
- Server Barebone
- Model
- ESC8000-E11
- Part numbers
- 90SF02I2-M003E0, 90SF02I1-M003D0
- EAN / UPC
- 4711387206331, 4711387206324
- Also known as
- ASUS ESC8000-E11 Rack (4U) Grey
Specifications
42 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Scalable |
| Number of processors supported | 2 |
| Compatible processor series | Intel® Xeon® |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 32 |
| Supported memory types | DDR5-SDRAM |
| Supported DIMM module capacities | 32GB, 128GB, 64GB, 16GB, 256GB |
| Maximum internal memory | 6 TB |
| Supported RDIMM clock speeds | 4400 MHz |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 9 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 8 |
| Number of 3.5" bays | 8 |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Supported storage drive types | HDD & SSD |
| SSD form factor | M.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 5.0 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | BSMI, CB, CE, RCM, Federal Communications Commission (FCC) |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (4U) |
| Product colour | Grey |
| LED indicators | Yes |
| On/off switch | Yes |
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15.5 A |
| 80 PLUS certification | 80 PLUS Titanium |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 800 mm |
| Height | 174.5 mm |
| Weight | 27 kg |
| Width | 440 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 52 kg |
