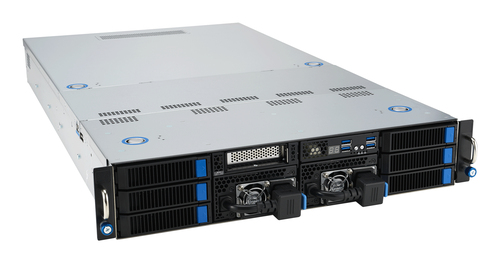

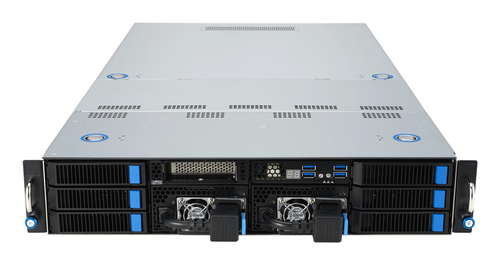

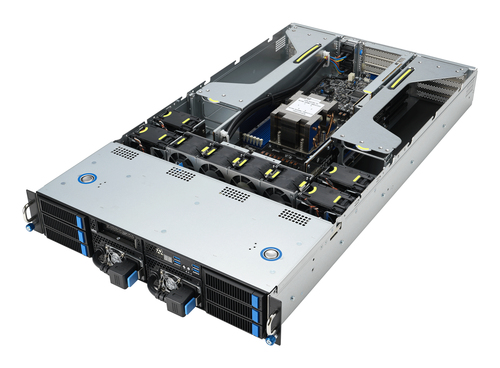

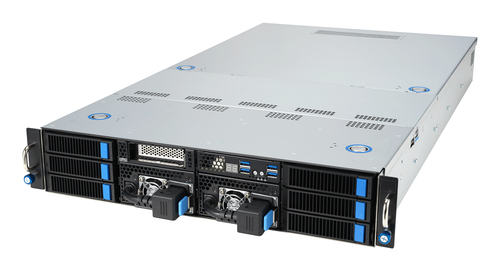

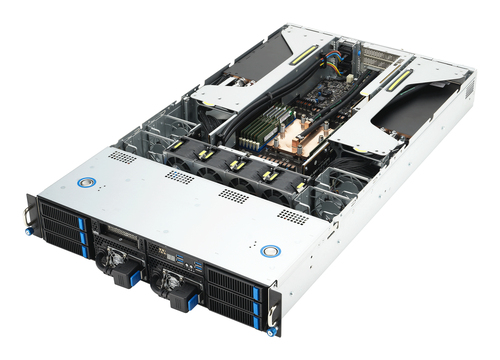

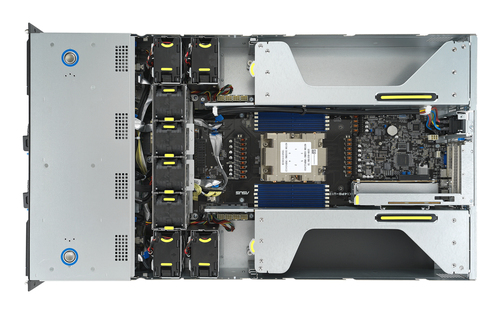

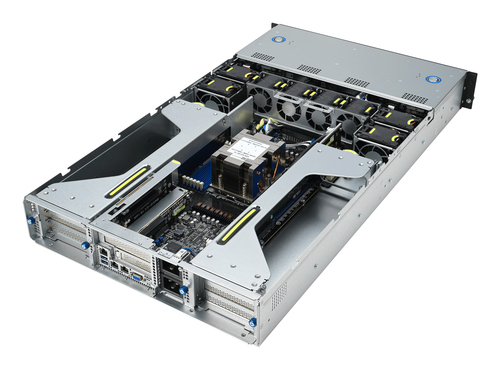

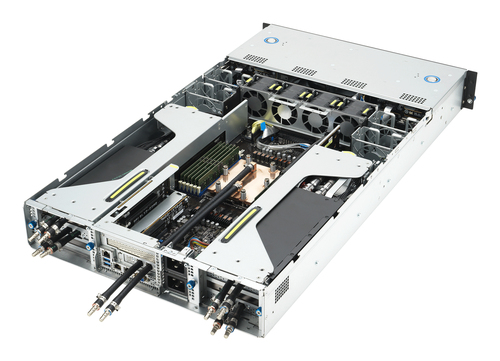

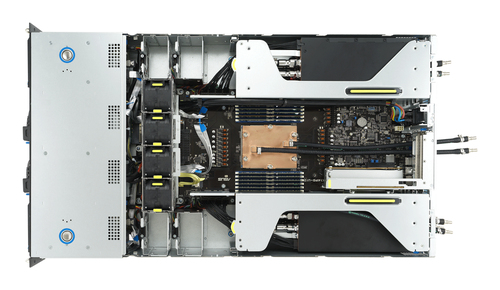

ESC4000A-E12 Socket SP5 Rack (2U) Silver
Model ESC4000A-E12Part no. 90SF02M3-M01090EAN 4711636185295
47 specifications
- Processor9004
- Weight24 kg
- ColourSilver
- Built-in processorNo
- Number of DIMM slots12
- Ethernet LANYes
Overview
- Processor
- 9004
- Weight
- 24 kg
- Colour
- Silver
- Built-in processor
- No
- Number of DIMM slots
- 12
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Server Barebone
- Model
- ESC4000A-E12
- Part numbers
- 90SF02M3-M01090, 90SF02M1-M000W0
- EAN / UPC
- 4711636185295, 4711387030370
- Also known as
- ASUS ESC4000A-E12 Socket SP5 Rack (2U) Silver
Specifications
47 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor socket | Socket SP5 |
| Processor model | 9004 |
| Number of processors supported | 1 |
| Maximum cache | 1152 MB |
| Compatible processor series | AMD EPYC 9004 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 12 |
| Supported memory types | DDR5-SDRAM |
| Supported DIMM module capacities | 256GB, 16GB, 32GB, 64GB, 128GB |
| Maximum internal memory | 3 TB |
| Supported RDIMM clock speeds | 4400,4800 MHz |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 12 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 8 |
| Storage drive sizes supported | 2.5,3.5" |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel® I350 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 2 |
| PCI Express x16 slots | 14 |
Features
| Specification | Value |
|---|---|
| Integrated BMC with IPMI | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | TCO |
| Sustainability compliance | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Silver |
Power
| Specification | Value |
|---|---|
| Power supply | 2600 W |
| Number of main power supplies | 2 |
| 80 PLUS certification | 80 PLUS Titanium |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 439.5 mm |
| Height | 88.9 mm |
| Weight | 24 kg |
| Width | 800 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 34.8 kg |
