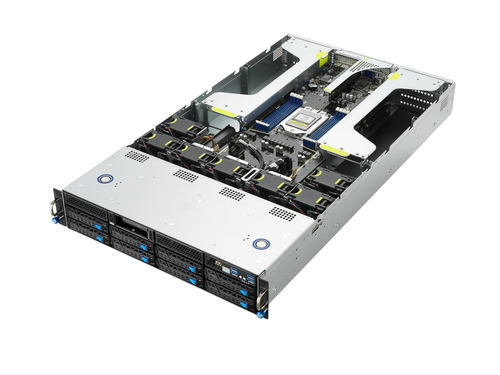

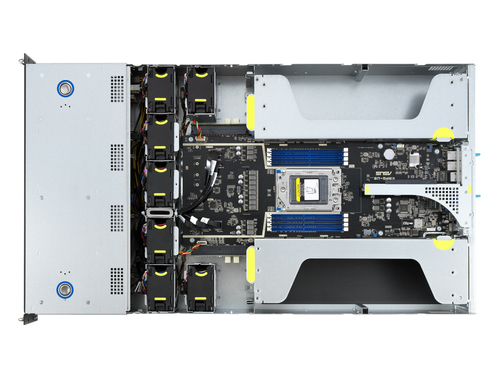

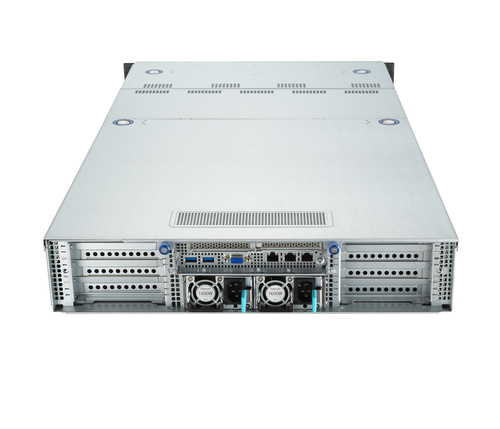

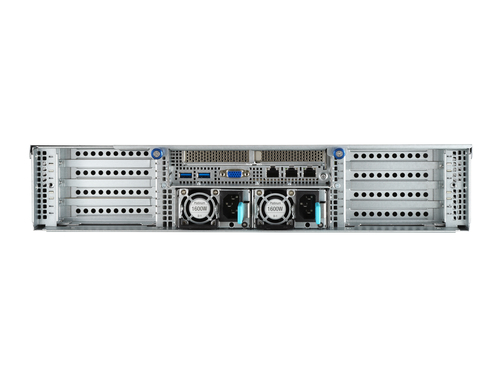

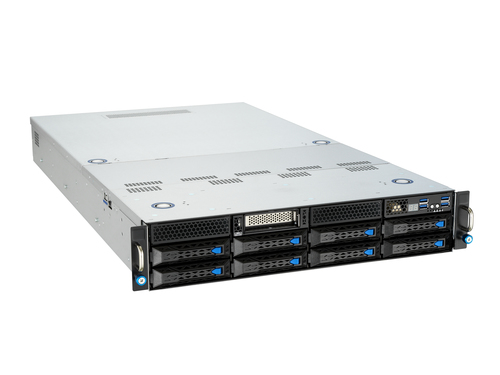

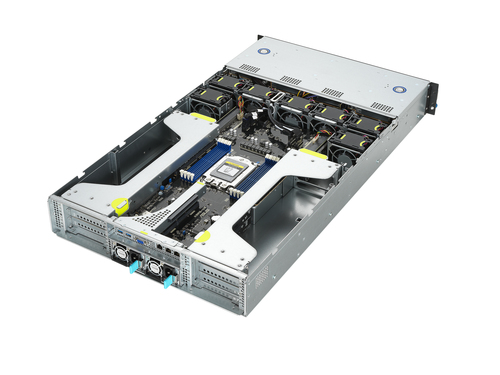

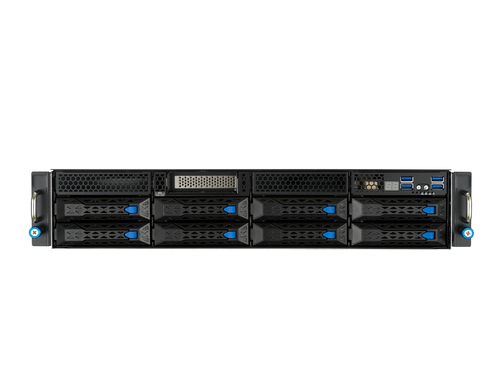

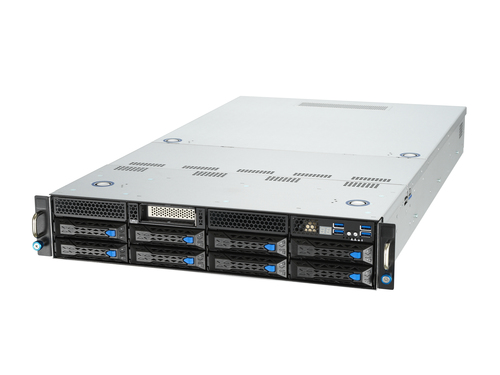

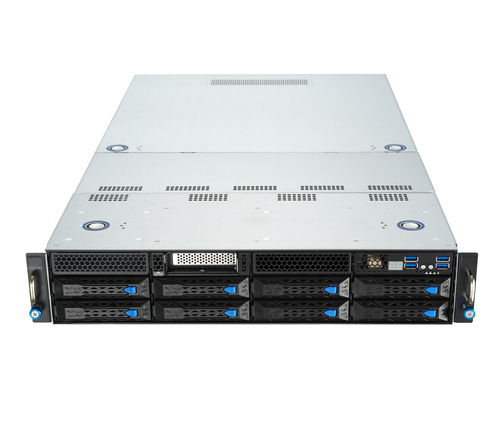

ESC4000A-E10 Socket SP3 Rack (2U)
Model ESC4000A-E10Part no. 90SF01A1-M00180EAN 4718017921374
32 specifications
- ProcessorAMD EPYC
- Weight34 kg
- Built-in processorYes
- Number of DIMM slots8
- LAN controllerIntel® I350-AM2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
Overview
- Processor
- AMD EPYC
- Weight
- 34 kg
- Built-in processor
- Yes
- Number of DIMM slots
- 8
- LAN controller
- Intel® I350-AM2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 6
- Brand
- ASUS
- Category
- Server Barebone
- Model
- ESC4000A-E10
- Part numbers
- 90SF01A1-M00180, 90SF01A1-M00070, 90SF01A1-M00090, 90SF01A1-M00760, 90SF01A1-M01230
- EAN / UPC
- 4718017921374, 192876861011, 195553168892, 4718017843744 +3 more
- Also known as
- ASUS ESC4000A-E10 Socket SP3 Rack (2U)
Specifications
32 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor socket | Socket SP3 |
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 8 |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 16GB, 32GB, 64GB, 128GB, 256MB |
| Maximum internal memory | 2 TB |
Storage
| Specification | Value |
|---|---|
| Hot-swap HDD bays | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® I350-AM2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 4 |
Features
| Specification | Value |
|---|---|
| Optical drive type | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
Power
| Specification | Value |
|---|---|
| Power supply | 1600 W |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| 80 PLUS certification | 80 PLUS Platinum |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 440 mm |
| Height | 88.9 mm |
| Weight | 34 kg |
| Width | 800 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 44 kg |
Other features
| Specification | Value |
|---|---|
| Memory slots | 8 |
