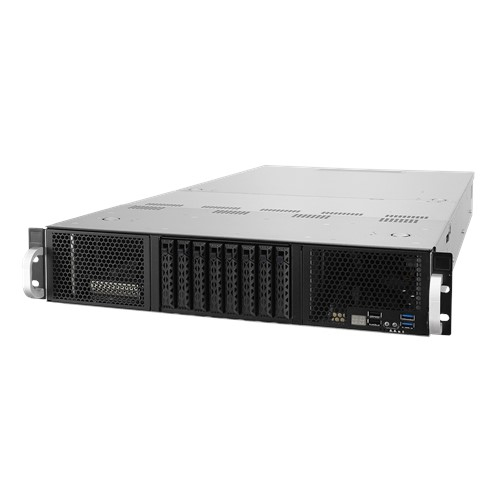

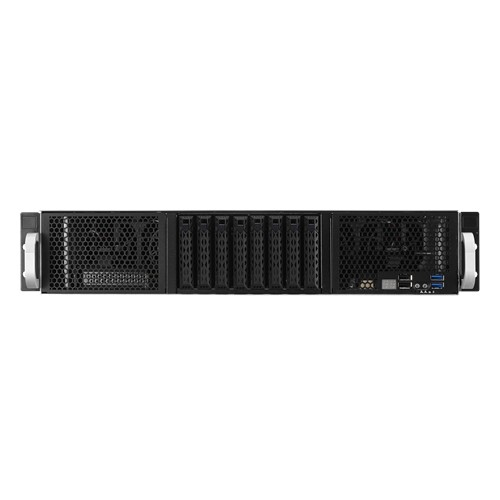

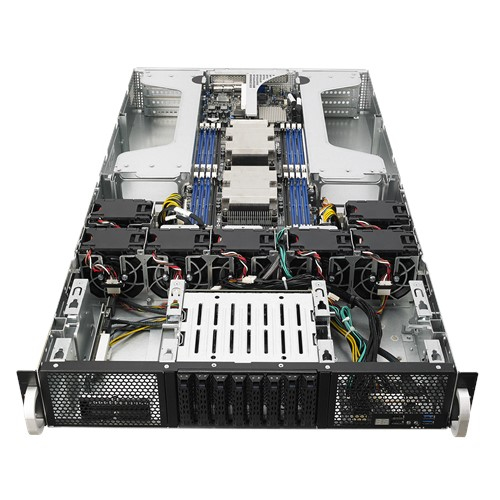

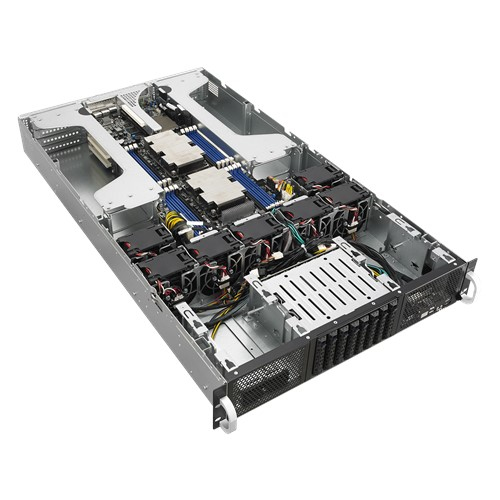

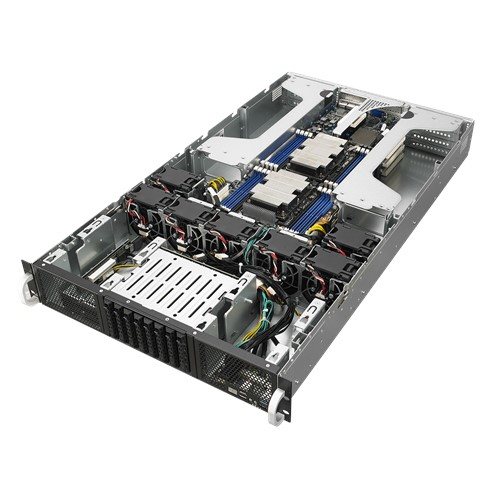

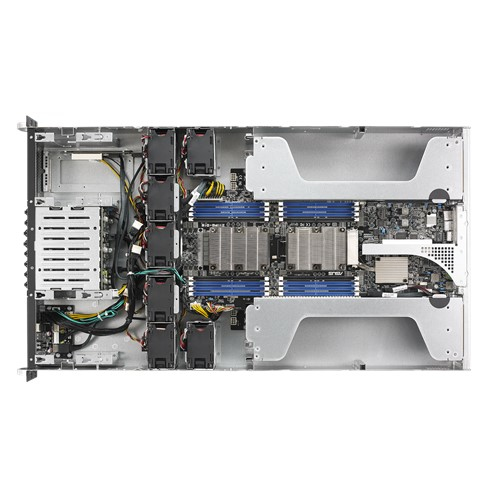

ASUS ESC4000 G4S

ASUS ESC4000 G4S

Model ESC4000 G4SPart no. 90SF0071-M03420EAN 4712900956610

33 specifications
  • ProcessorIntel® Xeon® Scalable
  • ColourBlack
  • Motherboard chipsetIntel® C621
  • Number of DIMM slots16
  • Number of storage drives supported8
  • On-board graphics card modelAspeed AST2500
See all specifications

Overview

Processor
Intel® Xeon® Scalable
Colour
Black
Motherboard chipset
Intel® C621
Number of DIMM slots
16
Number of storage drives supported
8
On-board graphics card model
Aspeed AST2500
Brand
ASUS
Model
ESC4000 G4S
Part numbers
90SF0071-M03420, 90SF0071-M00360
EAN / UPC
4712900956610, 192876209516, 4712900934700, 4711081274919
Also known as
ASUS ESC4000 G4S Intel® C621 LGA 3647 (Socket P) Rack (2U) Black

Specifications

33 specifications in 11 groups

Processor

Motherboard chipsetIntel® C621
Processor socketLGA 3647 (Socket P)
Processor familyIntel® Xeon® Scalable
Number of processors supported2

Memory

Number of DIMM slots16
Supported memory typesDDR4-SDRAM
Supported DIMM module capacities4GB, 8GB, 16GB, 32GB, 64GB
Maximum internal memory2 TB
Maximum RDIMM memory64 GB

Storage

Number of storage drives supported8
Number of 2.5" bays8
Storage drive sizes supported2.5"
Supported storage drive interfacesM.2

Graphics

On-board graphics card modelAspeed AST2500
On-board graphics card memory64 MB

Network

Ethernet interface typeFast Ethernet, Gigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports3
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express slots version3.0
PCI Express x16 slots8

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (2U)
Product colourBlack
LED indicatorsHDD, LAN, Power

Operational conditions

Operating relative humidity (H-H)20 - 90%
Operating temperature (T-T)10 - 35 °C

Weight & dimensions

Depth800 mm
Height88 mm
Width440 mm
