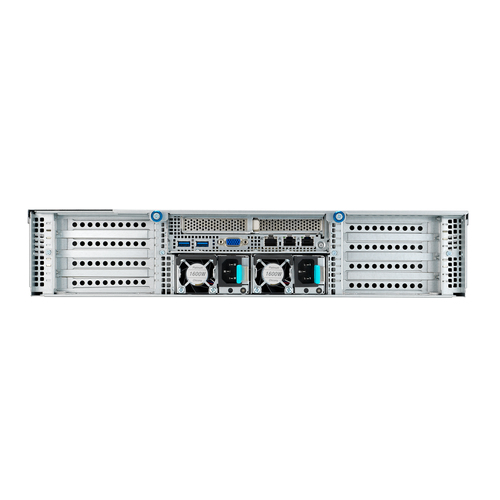

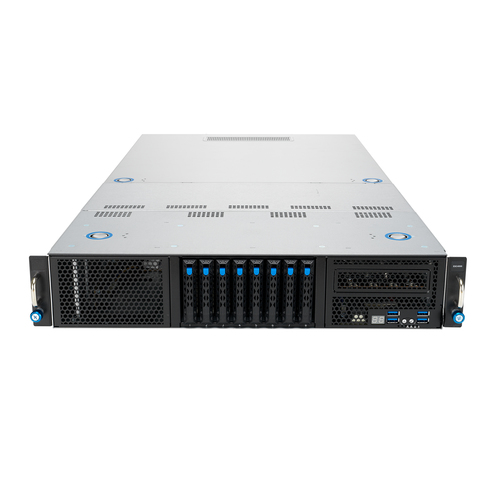

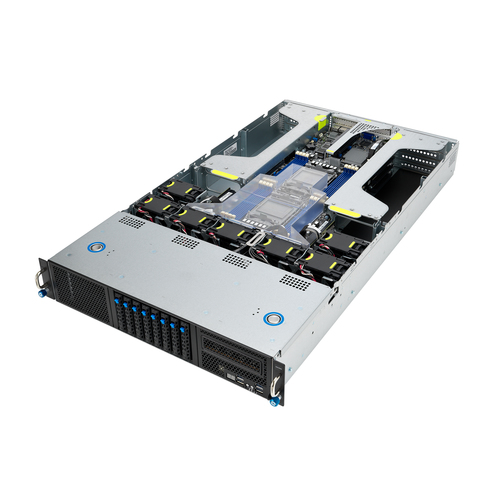

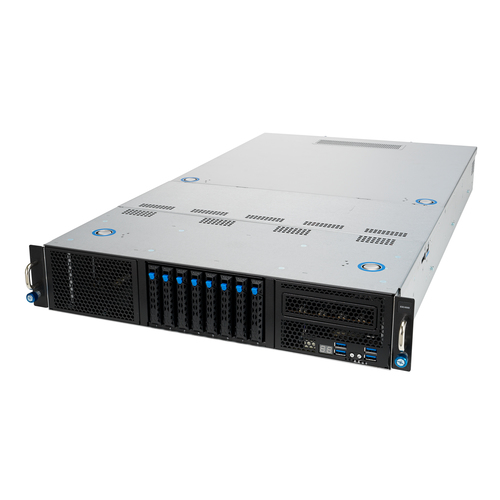

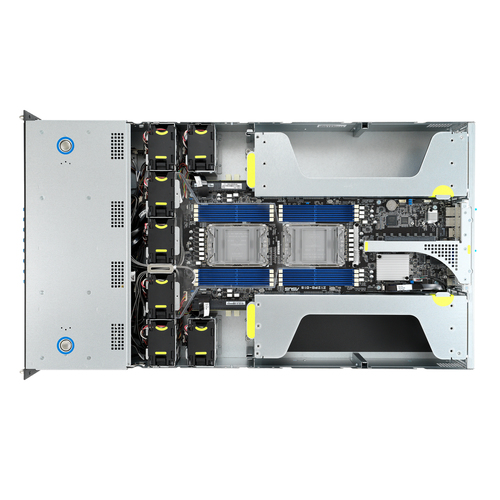

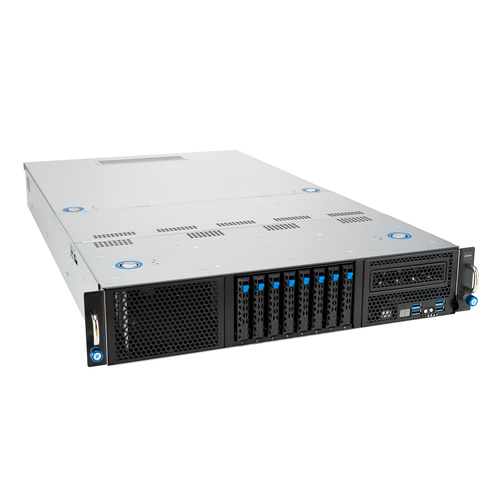

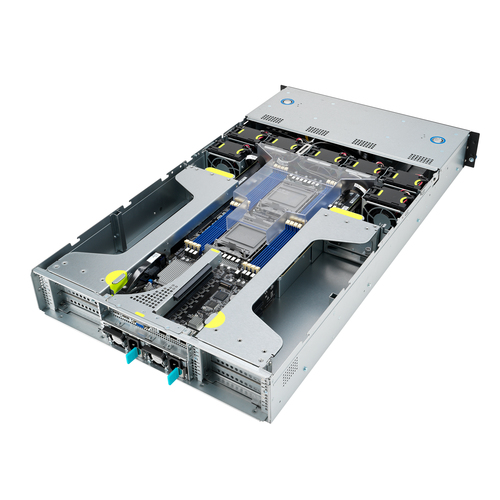

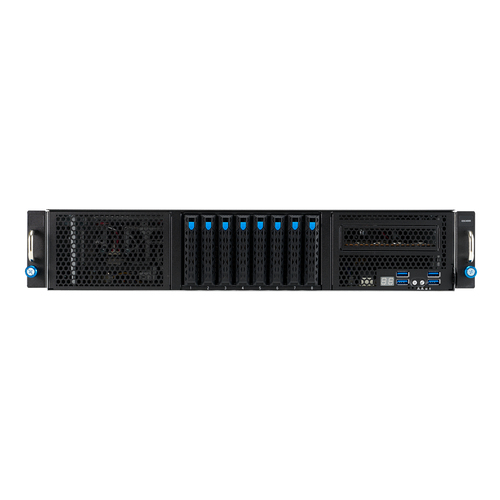

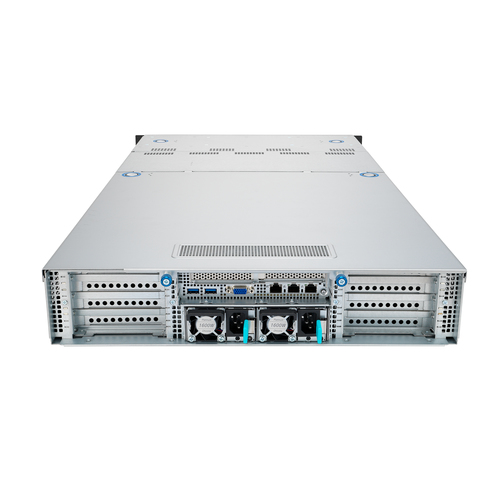

ESC4000-E10S LGA 4189 Rack (2U) Silver
Model ESC4000-E10SPart no. 90SF01B3-M004R0EAN 4711081721161
33 specifications
- ProcessorIntel
- Weight34 kg
- ColourSilver
- Built-in processorNo
- Number of DIMM slots16
- Hot-swap HDD baysYes
Overview
- Processor
- Intel
- Weight
- 34 kg
- Colour
- Silver
- Built-in processor
- No
- Number of DIMM slots
- 16
- Hot-swap HDD bays
- Yes
- Brand
- ASUS
- Category
- Server Barebone
- Model
- ESC4000-E10S
- Part number
- 90SF01B3-M004R0
- EAN / UPC
- 4711081721161
- Also known as
- ASUS ESC4000-E10S LGA 4189 Rack (2U) Silver
Specifications
33 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor socket | LGA 4189 |
| Processor manufacturer | Intel |
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 16 |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 16GB, 32GB, 64GB, 128GB |
| Maximum internal memory | 2 TB |
Storage
| Specification | Value |
|---|---|
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5,3.5" |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel® I350-AM2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 3 |
| PCI Express x16 slots | 6 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Silver |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 440 mm |
| Height | 88.9 mm |
| Weight | 34 kg |
| Width | 800 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 44 kg |
