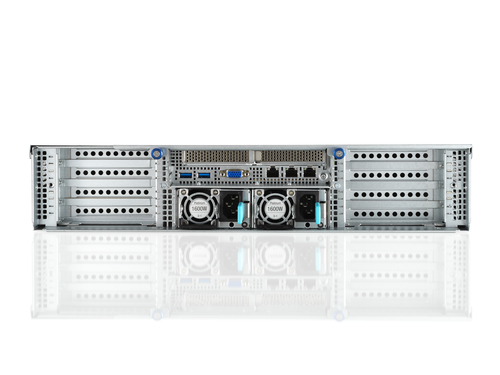

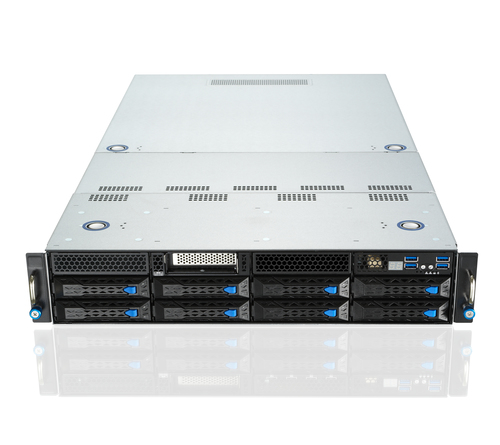

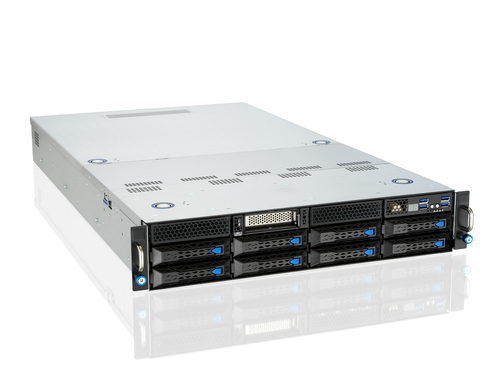

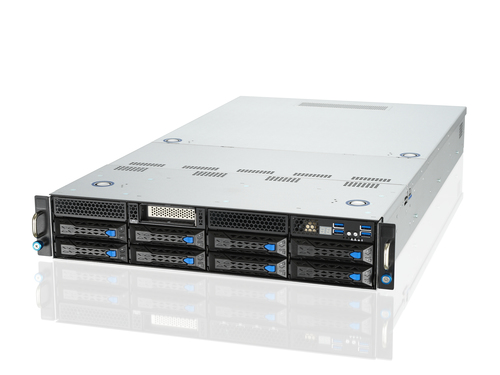

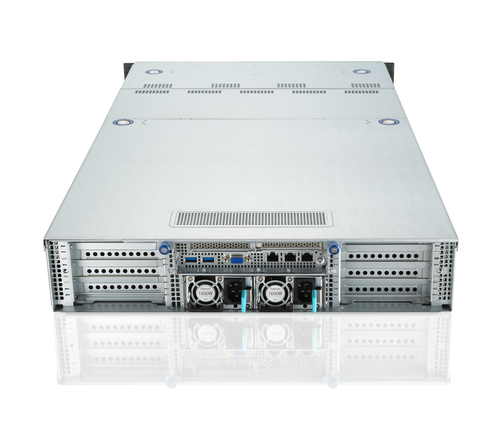

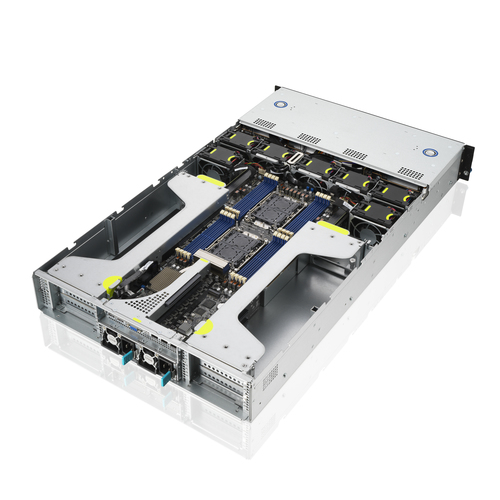

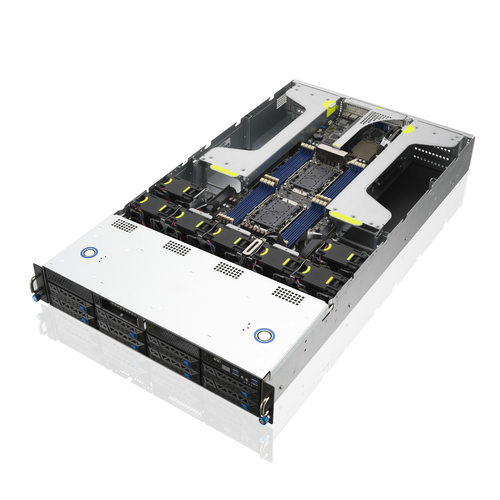

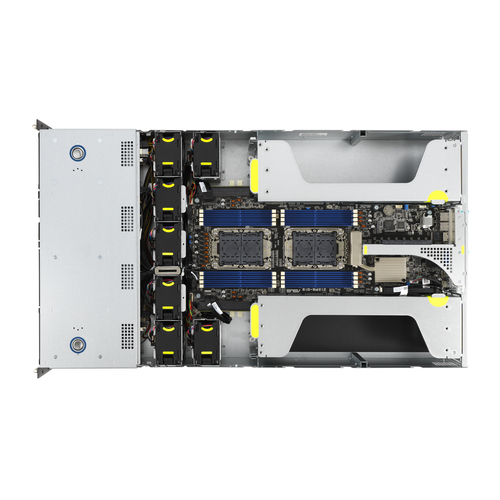

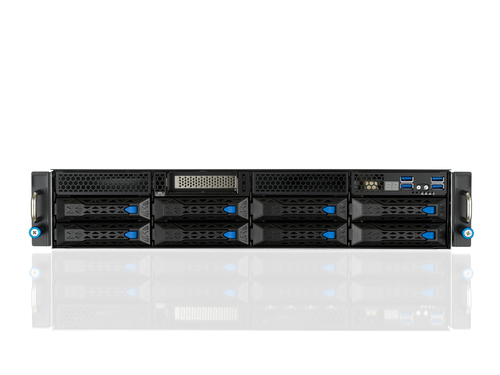

ESC4000-E10/2200W Intel C621A LGA 4189 Rack (2U) Black
Model ESC4000-E10/2200WPart no. 90SF01B3-M00500EAN 4711081274087
55 specifications
- ProcessorIntel® Xeon® Scalable
- Weight34 kg
- ColourBlack
- Motherboard chipsetIntel C621A
- Number of DIMM slots16
- Number of storage drives supported9
Overview
- Processor
- Intel® Xeon® Scalable
- Weight
- 34 kg
- Colour
- Black
- Motherboard chipset
- Intel C621A
- Number of DIMM slots
- 16
- Number of storage drives supported
- 9
- Brand
- ASUS
- Category
- Server Barebone
- Model
- ESC4000-E10/2200W
- Part number
- 90SF01B3-M00500
- EAN / UPC
- 4711081274087
- Also known as
- ASUS ESC4000-E10/2200W Intel C621A LGA 4189 Rack (2U) Black
Specifications
55 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Motherboard chipset | Intel C621A |
| Processor socket | LGA 4189 |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Scalable |
| Number of processors supported | 2 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 16 |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 16GB, 32GB, 64GB, 128GB |
| Maximum RDIMM memory | 2 TB |
| Supported RDIMM clock speeds | 3200 MHz |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 9 |
| Hot-swap HDD bays | Yes |
| Number of 3.5" bays | 8 |
| Storage drive sizes supported | 3.5,M.2 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, Serial ATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
| Maximum graphics card memory | 64 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel® I350-AM2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Number of SATA III connectors | 8 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 2 |
| Number of M.2 (M) slots | 4 |
Features
| Specification | Value |
|---|---|
| Optical drive type | No |
| Compatible operating systems | Windows Server 2019 RHEL 8.2 RHEL 7.9 SUSE Enterprise 15 SP2 SUSE Enterprise 15 SP1 SUSE Enterprise 12 SP5 Ubuntu 20.04 LTS Ubuntu 18.04 LTS ESXi 7.0 Hypervisor 8.2 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
| LED indicators | Yes |
| On/off switch | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 2200 W |
| Number of main power supplies | 1 |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 14 A |
| 80 PLUS certification | 80 PLUS Platinum |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 440 mm |
| Height | 88 mm |
| Weight | 34 kg |
| Width | 800 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 44 kg |
