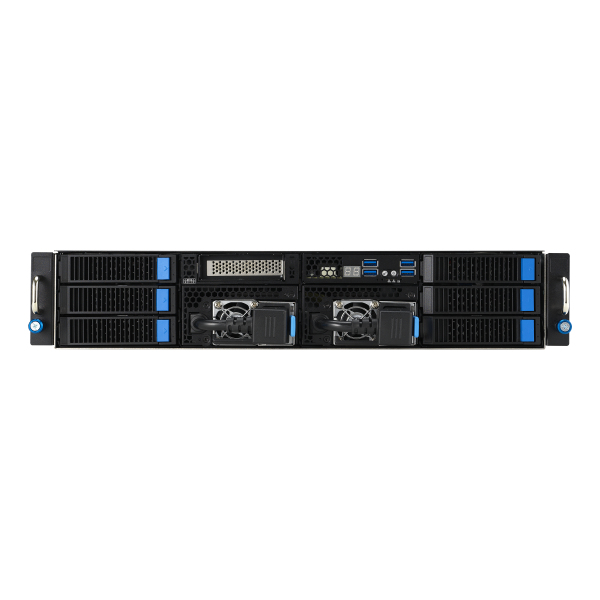

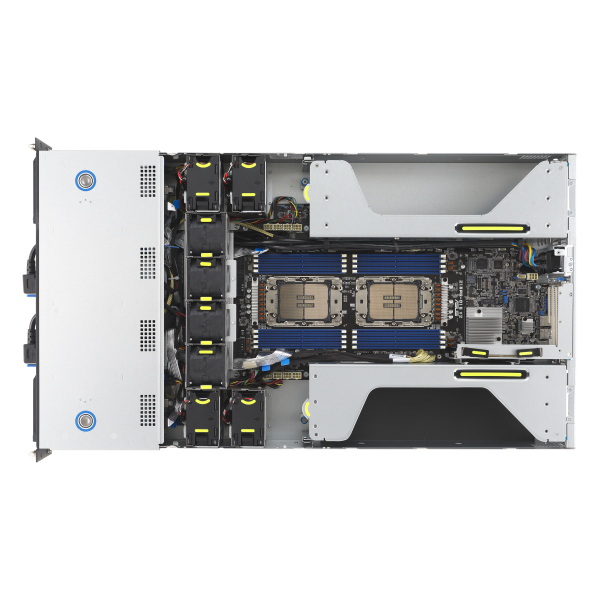

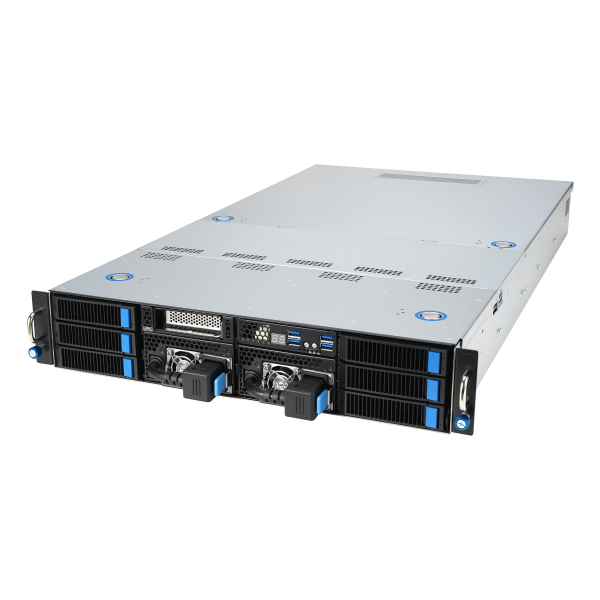

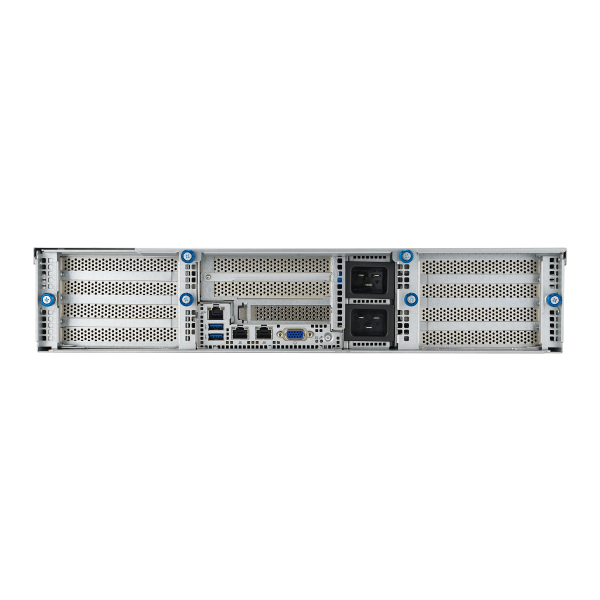

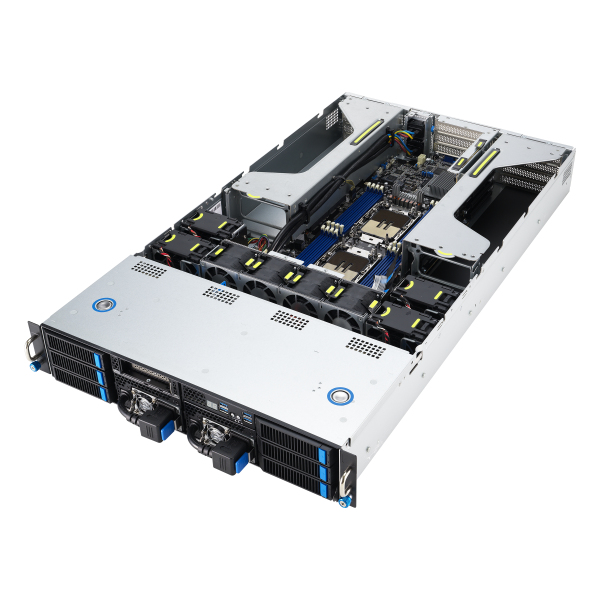

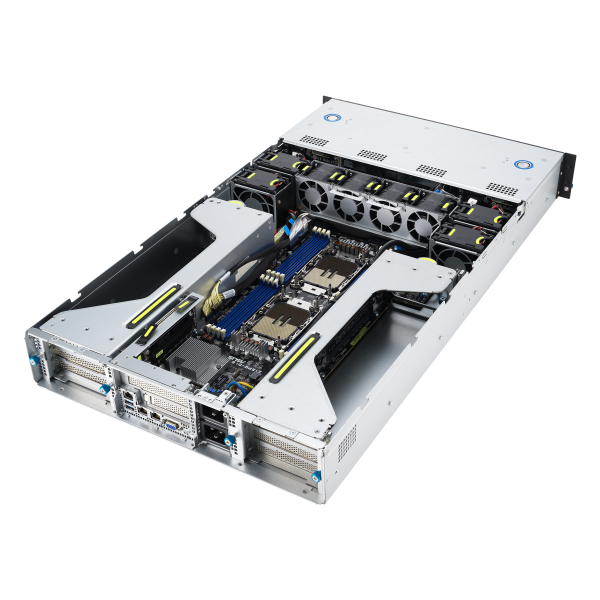

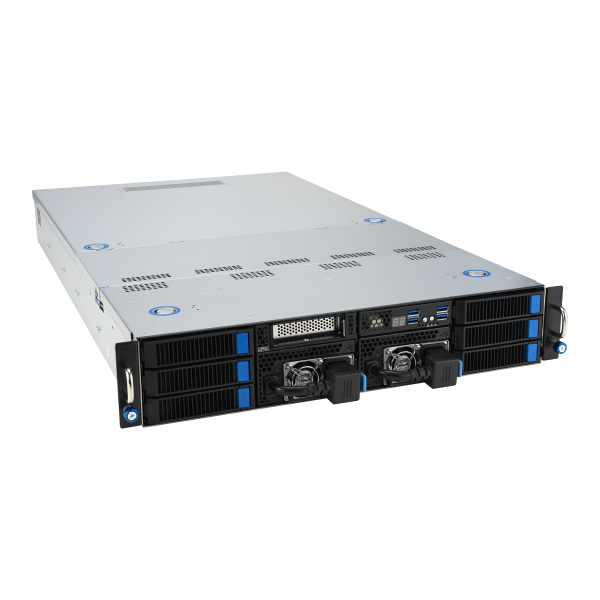

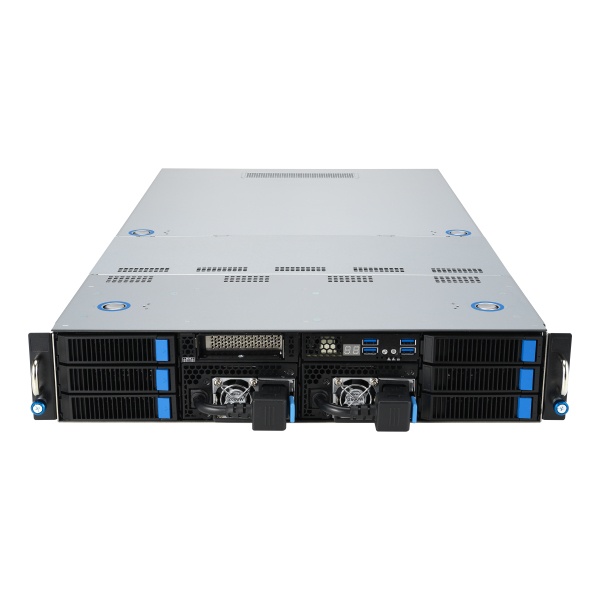

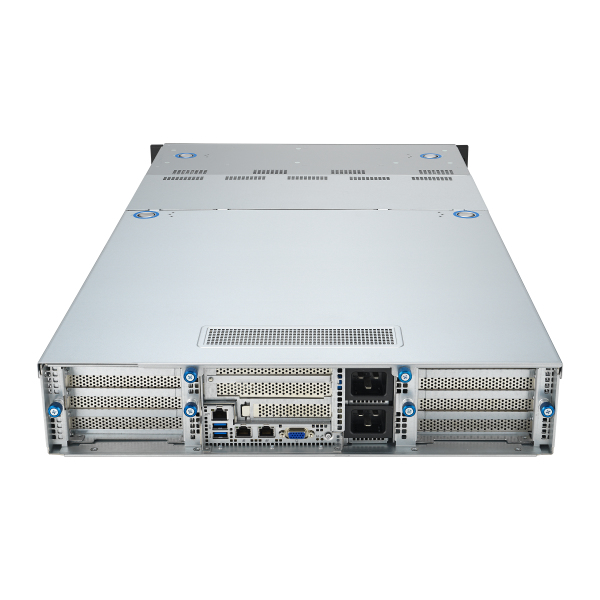

90SF0251-M004X0 server barebone Intel C741 Rack (2U) Black, Steel
Model 90SF0251-M004X0EAN 4711387029756
45 specifications
- ProcessorIntel® Xeon® Scalable
- Weight26 kg
- ColourBlack, Steel
- Built-in processorNo
- Number of DIMM slots16
- Number of storage drives supported6
Overview
- Processor
- Intel® Xeon® Scalable
- Weight
- 26 kg
- Colour
- Black, Steel
- Built-in processor
- No
- Number of DIMM slots
- 16
- Number of storage drives supported
- 6
- Brand
- ASUS
- Category
- Server Barebone
- Model
- 90SF0251-M004X0
- Part number
- 90SF0251-M004X0
- EAN / UPC
- 4711387029756
- Also known as
- ASUS 90SF0251-M004X0 server barebone Intel C741 Rack (2U) Black, Steel
Specifications
45 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Motherboard chipset | Intel C741 |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Scalable |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 16 |
| Supported memory types | DDR5-SDRAM |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 6 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 4 |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I350 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 5.0 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 14 |
Features
| Specification | Value |
|---|---|
| Integrated BMC with IPMI | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Compatible operating systems | Windows Server RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS Ubuntu Vmware |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Steel |
| LED indicators | Yes |
| Certification | BSMI, CE, RCM, FCC(Class A) |
Power
| Specification | Value |
|---|---|
| Power supply | 2600 W |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 2 |
| 80 PLUS certification | 80 PLUS Titanium |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 800 mm |
| Height | 88.9 mm |
| Weight | 26 kg |
| Width | 439.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Bundled software | ASUS Control Center ASUS ASMB11-iKVM |
| Package weight | 36.8 kg |
