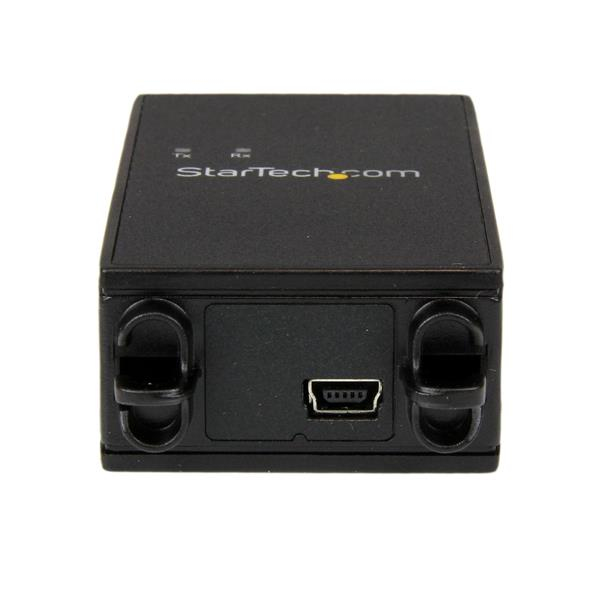

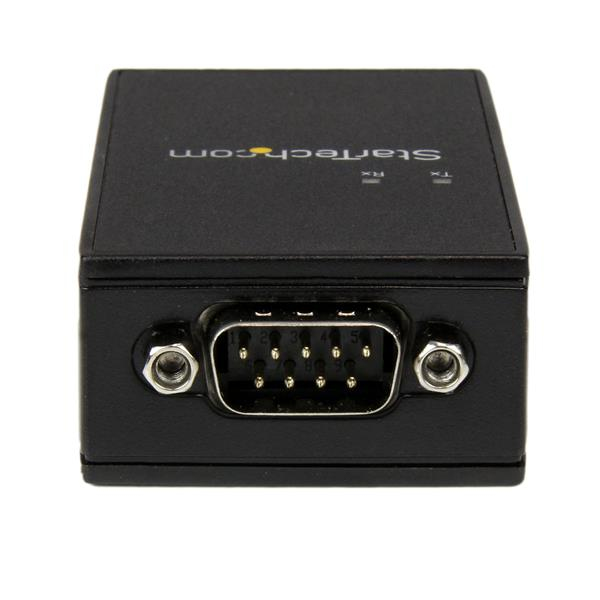

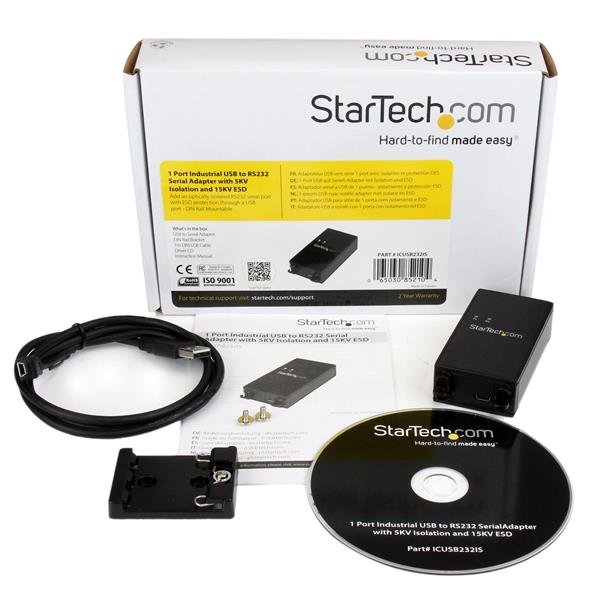

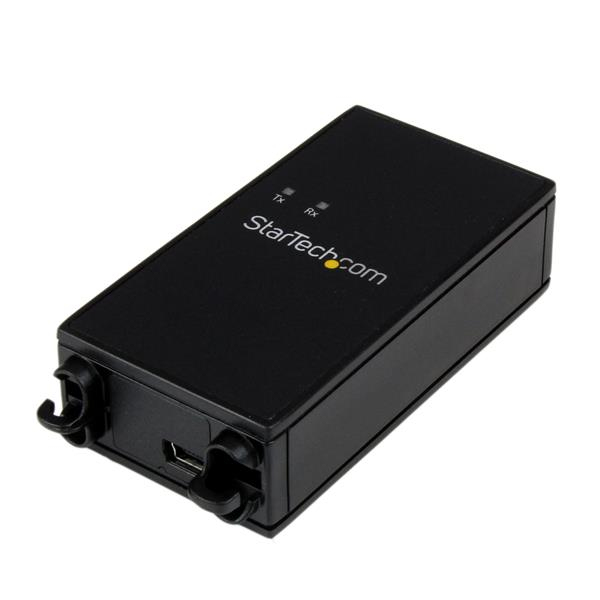

1 Port Industrial USB to RS232 Serial Adapter with 5KV Isolation and 15KV ESD Protection

1 Port Industrial USB to RS232 Serial Adapter with 5KV Isolation and 15KV ESD Protection

Model ICUSB232ISEAN 8502201625836

24 specifications

Weight50 g
ColourBlack
Host interfaceRS-232
Width42 mm
Mac operating systems supportedMac OS X 13.0 Ventura
LED indicatorsActivity

See all specifications

Overview

Weight: 50 g
Colour: Black
Host interface: RS-232
Width: 42 mm
Mac operating systems supported: Mac OS X 13.0 Ventura
LED indicators: Activity

Brand: StarTech.com
Category: Serial Converters/Repeaters/Isolators
Model: ICUSB232IS
Part number: ICUSB232IS
EAN / UPC: 8502201625836, 065030852104, 642964822863, 650308521044 +6 more
Also known as: StarTech.com 1 Port Industrial USB to RS232 Serial Adapter with 5KV Isolation and 15KV ESD Protection

Specifications

24 specifications in 8 groups

Technical details

Specification	Value
Host interface	RS-232
Connector 1	USB Mini-B
Connector 2	DB-9
Connector gender	Female/Female
Baud rate	921.6 Kbit/s
Data bits	7, 8
Isolation	5 kV
Product colour	Black
Stop bits	1, 2

Weight & dimensions

Specification	Value
Width	42 mm
Depth	84 mm
Height	22 mm
Weight	50 g
Package width	146 mm
Package depth	211 mm
Package height	41 mm
Package weight	212 g

Software

Specification	Value
Mac operating systems supported	Mac OS X 13.0 Ventura

Certificates

Specification	Value
Certification	RoHS

Indication

Specification	Value
LED indicators	Activity

Material

Specification	Value
Housing material	Plastic

Operational conditions

Specification	Value
Operating temperature (T-T)	-30 - 75 °C
Storage temperature (T-T)	-40 - 85 °C

Packaging data

Specification	Value
Manual	Yes
