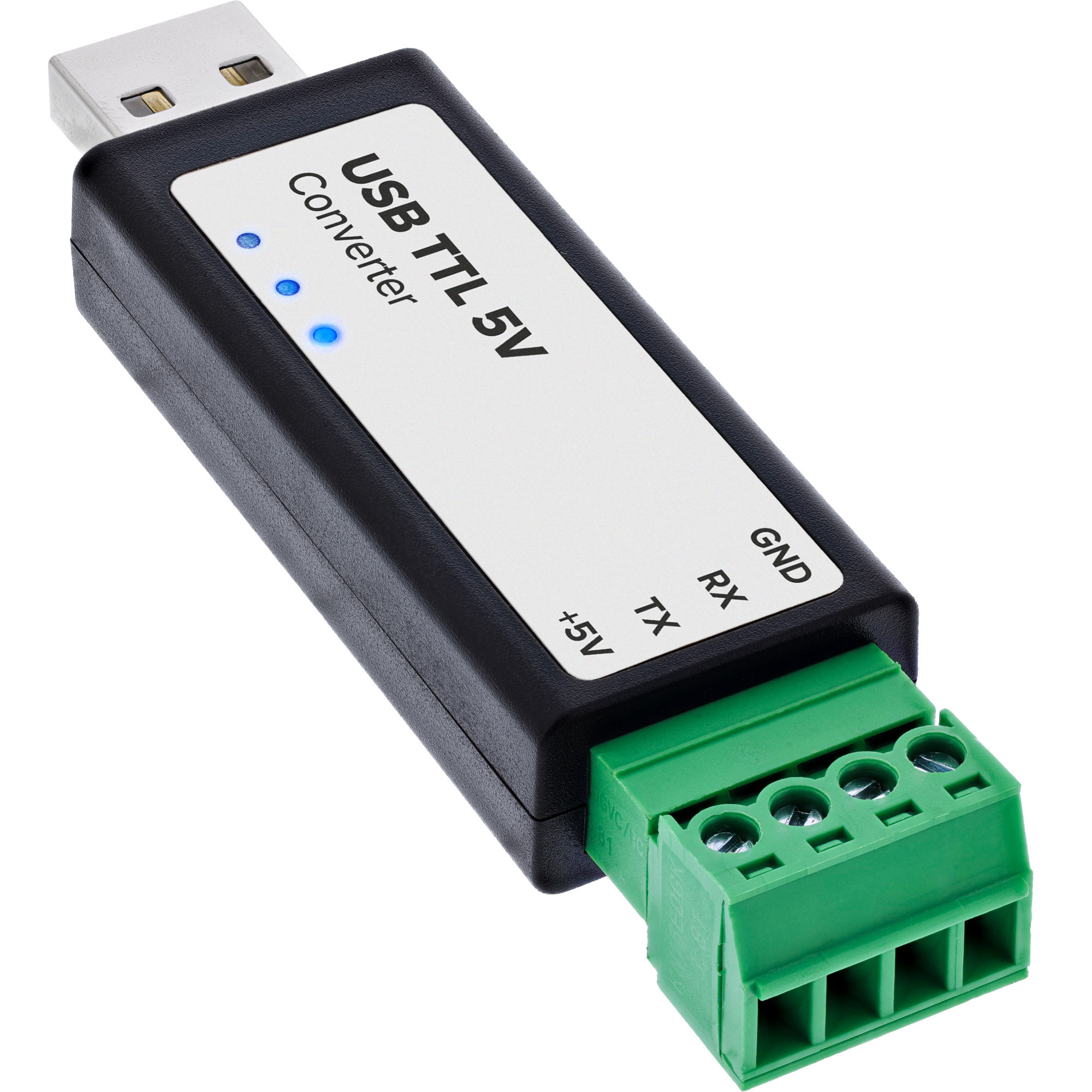

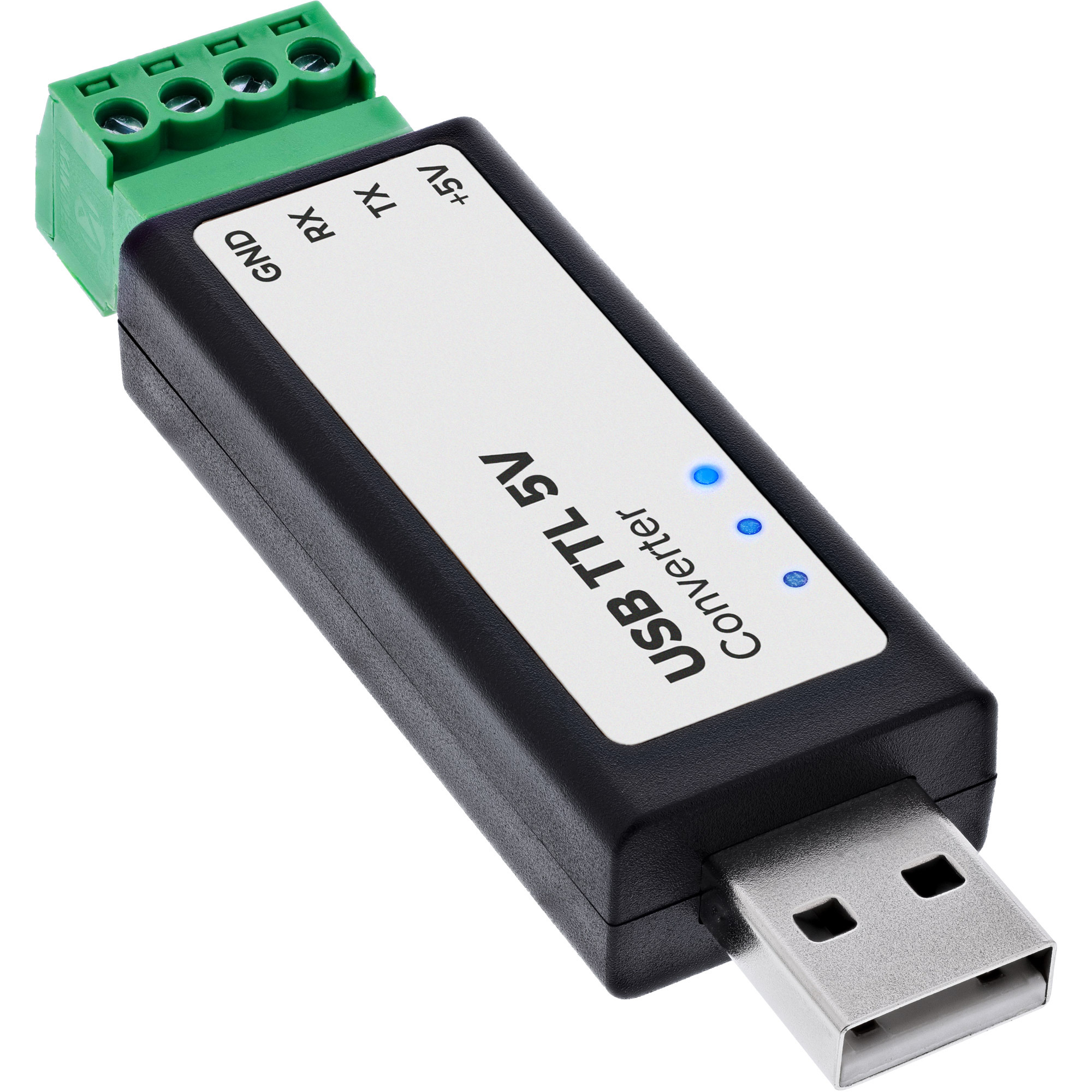

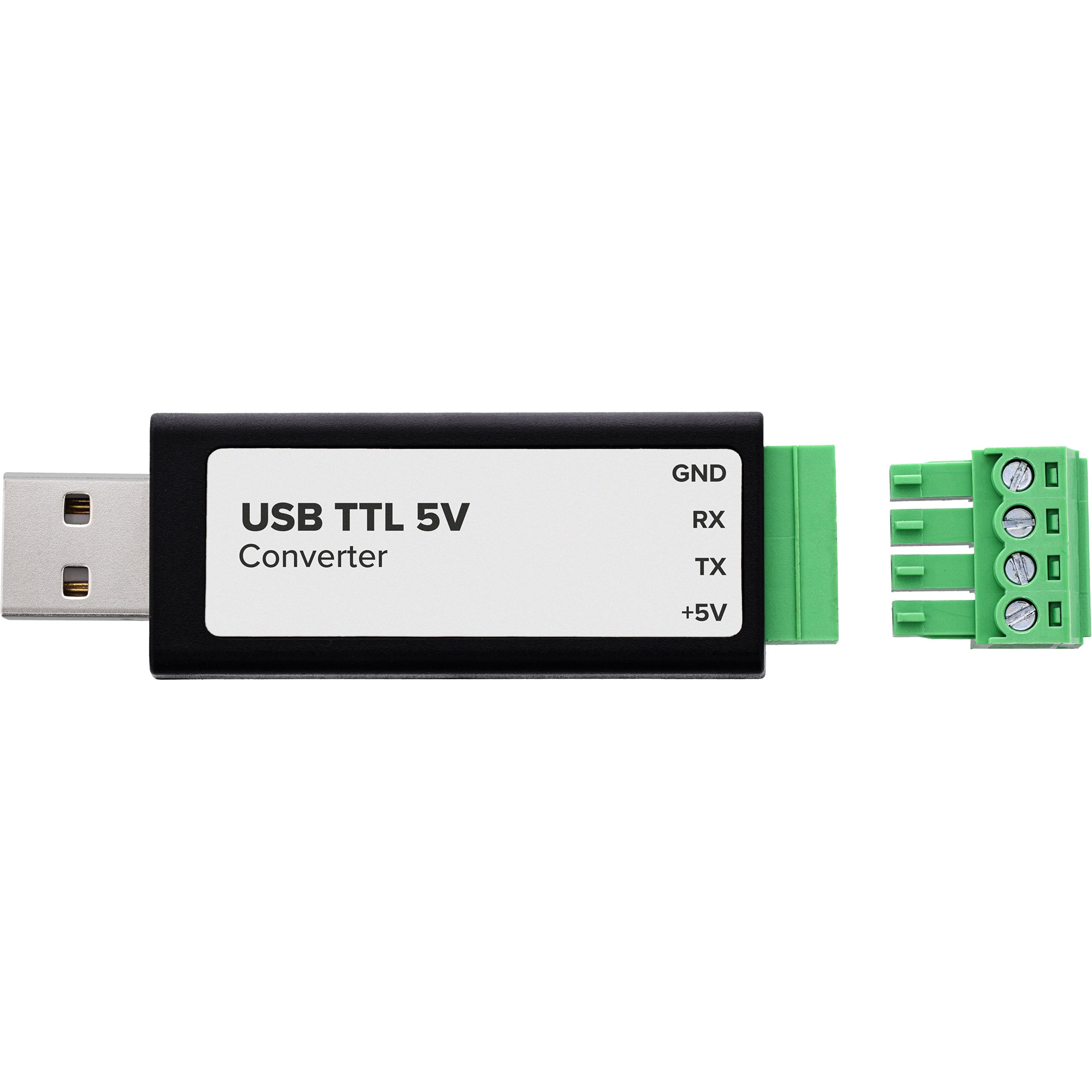

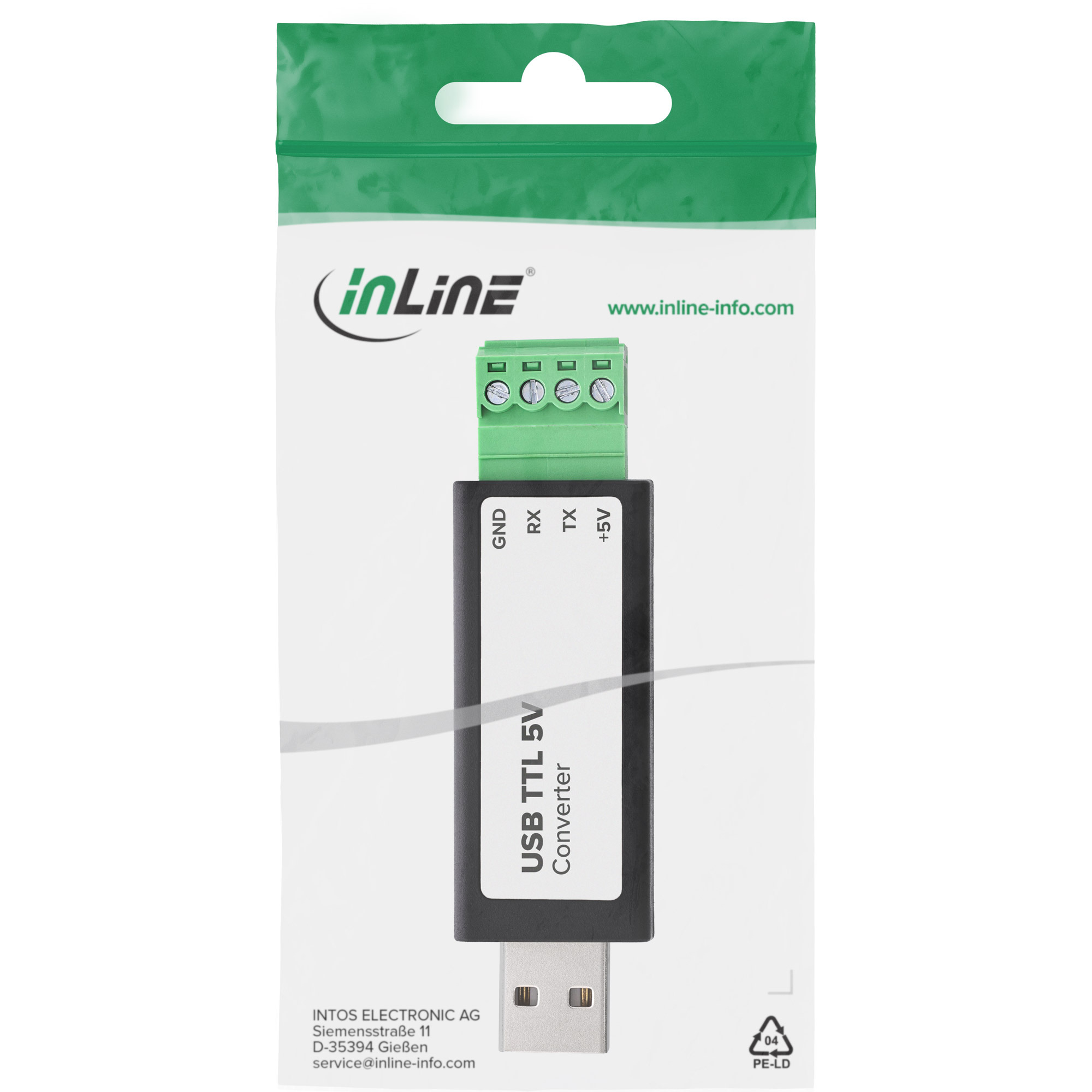

33307F serial converter/repeater/isolator USB 2.0 TTL Black
Model 33307FEAN 4043718353170
26 specifications
- Weight14 g
- ColourBlack
- Host interfaceUSB 2.0
- Width22 mm
- Mac compatibilityYes
- Operating relative humidity (H-H)5 - 95%
Overview
- Weight
- 14 g
- Colour
- Black
- Host interface
- USB 2.0
- Width
- 22 mm
- Mac compatibility
- Yes
- Operating relative humidity (H-H)
- 5 - 95%
- Brand
- InLine
- Model
- 33307F
- Part number
- 33307F
- EAN / UPC
- 4043718353170
- Also known as
- InLine 33307F serial converter/repeater/isolator USB 2.0 TTL Black
Specifications
26 specifications in 7 groups
Technical details
| Specification | Value |
|---|---|
| Host interface | USB 2.0 |
| Output interface | TTL |
| Connector 1 | USB Type-A |
| Connector 2 | Terminal block |
| Connector gender | Male/Female |
| Baud rate | 3000 Kbit/s |
| Chipset | FTDI FT232RNL |
| Package volume | 200 cm³ |
| Product colour | Black |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22 mm |
| Depth | 78 mm |
| Height | 11 mm |
| Weight | 14 g |
| Package width | 100 mm |
| Package depth | 165 mm |
| Package height | 11 mm |
| Package weight | 29 g |
| Dimensions (WxDxH) | 22 x 78 x 11 mm |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7, Windows 8, Windows 8.1, Windows 11, Windows 10, Windows XP |
| Mac compatibility | Yes |
| Mac operating systems supported | MacOS |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -15 - 70 °C |
Packaging content
| Specification | Value |
|---|---|
| Package type | Polybag |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 V |
