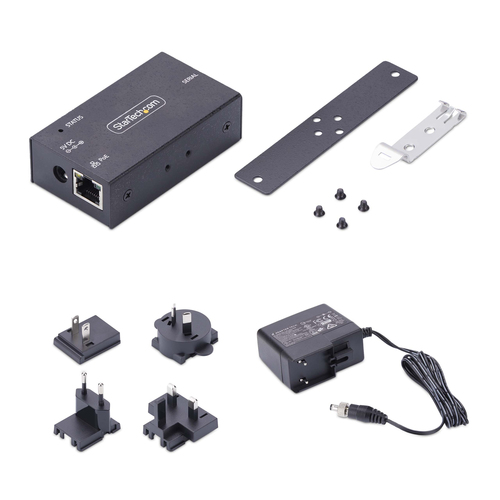

StarTech.com 1-Port Serial to Ethernet Adapter, 802.3af PoE IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mountable, RJ45 LAN to DB9 Serial Co
StarTech.com

1-Port Serial to Ethernet Adapter, 802.3af PoE IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mountable, RJ45 LAN to DB9 Serial Co

Model I13P-SERIAL-ETHERNETEAN 065030906005

42 specifications
  • Weight155 g
  • ColourBlack
  • Auto-negotiationYes
  • Host interfaceRS-232
  • Width82 mm
  • Housing materialSteel
See all specifications

Overview

Weight
155 g
Colour
Black
Auto-negotiation
Yes
Host interface
RS-232
Width
82 mm
Housing material
Steel
Brand
StarTech.com
Model
I13P-SERIAL-ETHERNET
Part number
I13P-SERIAL-ETHERNET
EAN / UPC
065030906005
Also known as
StarTech.com 1-Port Serial to Ethernet Adapter, 802.3af PoE IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mountable, RJ45 LAN to DB9 Serial Co

Specifications

42 specifications in 10 groups

Network

Networking standardsIEEE 802.3af, IEEE 802.3i, IEEE 802.3u
Auto-negotiationYes
Auto MDI/MDI-XYes
Full duplexYes

Technical details

Host interfaceRS-232
Output interfaceRJ-45
Connector 1DB-25S
Connector 2RJ-45
Connector genderFemale/Female
MountingWall/DIN
Baud rate921.6 Kbit/s
Compliance certificatesTrade Agreements Act (TAA)
Data bits7, 8
Electrostatic Discharge (ESD) protection (air)15 kV
Electrostatic Discharge (ESD) protection (contact)8 kV
Flow Control typeNo, RTS/CTS, XON/XOFF
Parity bitEven, Mark, No, Odd, Space
Product colourBlack
Stop bits1, 2

Weight & dimensions

Width82 mm
Depth46 mm
Height25 mm
Weight155 g
Package width213 mm
Package depth146 mm
Package height41 mm
Package weight1.2 kg

Software

Windows operating systems supportedWindows 11 Enterprise x64, Windows 7 Professional x64, Windows Vista Enterprise x64, Windows 10, Windows 11 Home, Windows 7 Starter, Windows Vista Home Basic, Windows 10 Education, Windows 11 Pro, Windows 7 Starter x64, Windows 10 Education x64, Windows 11 x64, Windows 7 Ultimate, Windows Vista Home

Indication

LED indicatorsYes

Logistics data

Master (outer) case height326 mm
Master (outer) case length404 mm
Master (outer) case width519 mm
Products per master (outer) case40 pc(s)

Material

Housing materialSteel

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-20 - 75 °C

Packaging content

AC adapter includedYes
DIN rail includedYes
Mounting brackets includedYes
Number of screws included4 pc(s)

Packaging data

ManualYes
