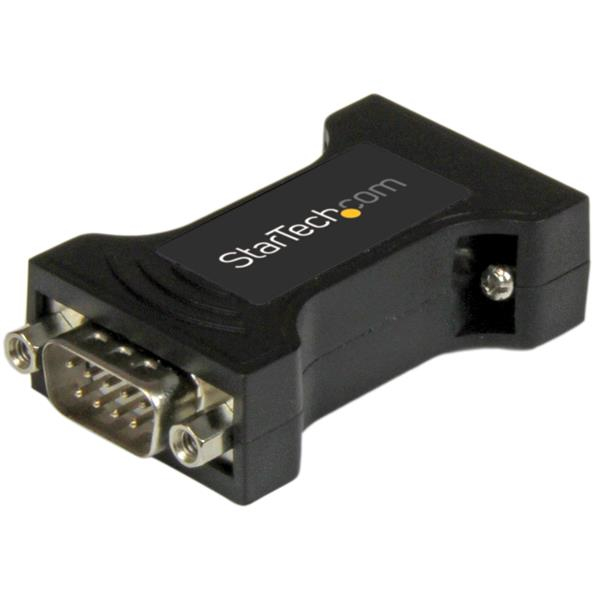

RS232 to TTL serial converter - DB9, F/M
Model IC232TTLEAN 065030859905
24 specifications
- Weight25 g
- ColourBlack
- Host interfaceRS-232
- Housing materialPlastic
- Operating relative humidity (H-H)5 - 95%
Overview
- Weight
- 25 g
- Colour
- Black
- Host interface
- RS-232
- Housing material
- Plastic
- Operating relative humidity (H-H)
- 5 - 95%
- Brand
- StarTech.com
- Model
- IC232TTL
- Part number
- IC232TTL
- EAN / UPC
- 065030859905, 738878114122, 4058829198077, 5054629707890
- Also known as
- StarTech.com RS232 to TTL serial converter - DB9, F/M
Specifications
24 specifications in 6 groups
Technical details
| Specification | Value |
|---|---|
| Host interface | RS-232 |
| Output interface | TTL |
| Connector 1 | DB-9 |
| Connector 2 | DB-9 |
| Connector gender | Male/Female |
| Baud rate | 115.2 Kbit/s |
| Chipset | CD4093 |
| Data bits | 7, 8 |
| Maximum cable length | 5 m |
| Parity bit | Even, Mark, Odd, Space, No |
| Product colour | Black |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 25 g |
| Package width | 142 mm |
| Package depth | 171 mm |
| Package height | 32 mm |
| Package weight | 81 g |
| Dimensions (WxDxH) | 34 x 63 x 15 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
| Compliance industry standards | RS232, TTL, EIA/TIA |
Material
| Specification | Value |
|---|---|
| Housing material | Plastic |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
