Zyxel CAM5525 security camera Box IP security camera Indoor & outdoor

Zyxel CAM5525 security camera Box IP security camera Indoor & outdoor

1280 x 1024 pixels Ceiling/wall

Model CAM5525EAN 4718937523528

61 specifications
  • ProcessorARM9
  • ConnectivityWired
  • TypeIP security camera
  • Weight500 g
  • ColourWhite
  • Form factorBox
See all specifications

Overview

Processor
ARM9
Connectivity
Wired
Type
IP security camera
Weight
500 g
Colour
White
Form factor
Box
Brand
Zyxel
Model
CAM5525
Part number
CAM5525
EAN / UPC
4718937523528
Also known as
Zyxel CAM5525 security camera Box IP security camera Indoor & outdoor 1280 x 1024 pixels Ceiling/wall

Specifications

61 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlNo
Processor modelARM9
CertificationFCC/CE

Design

Form factorBox

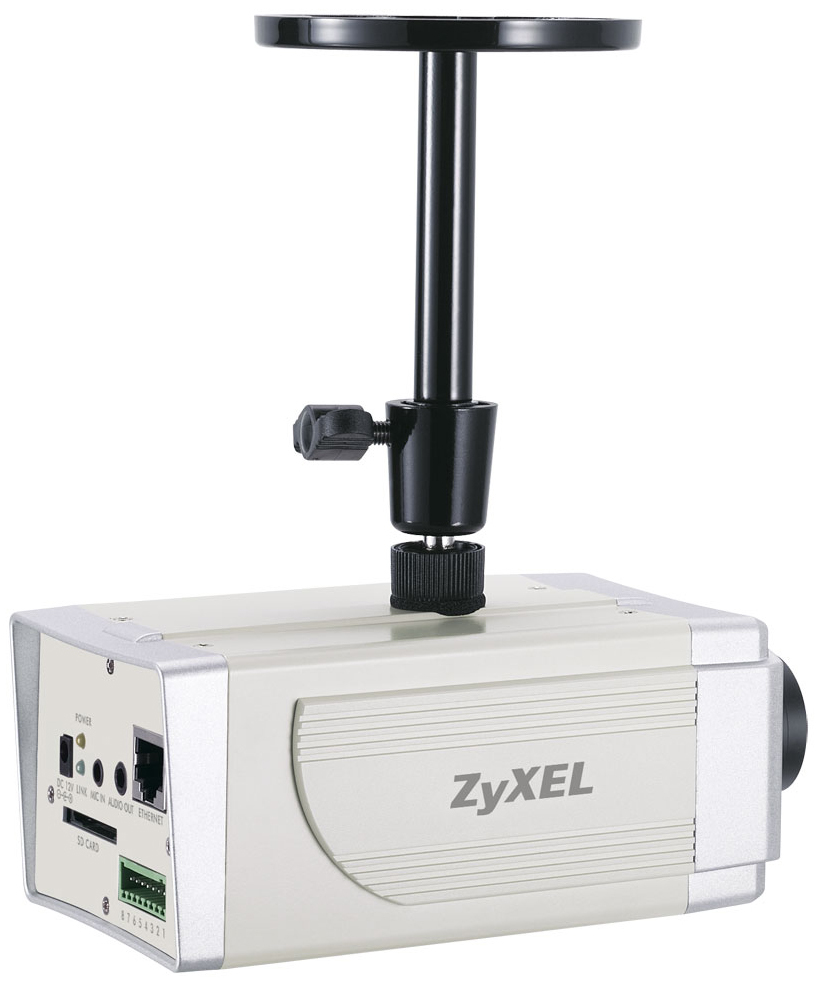

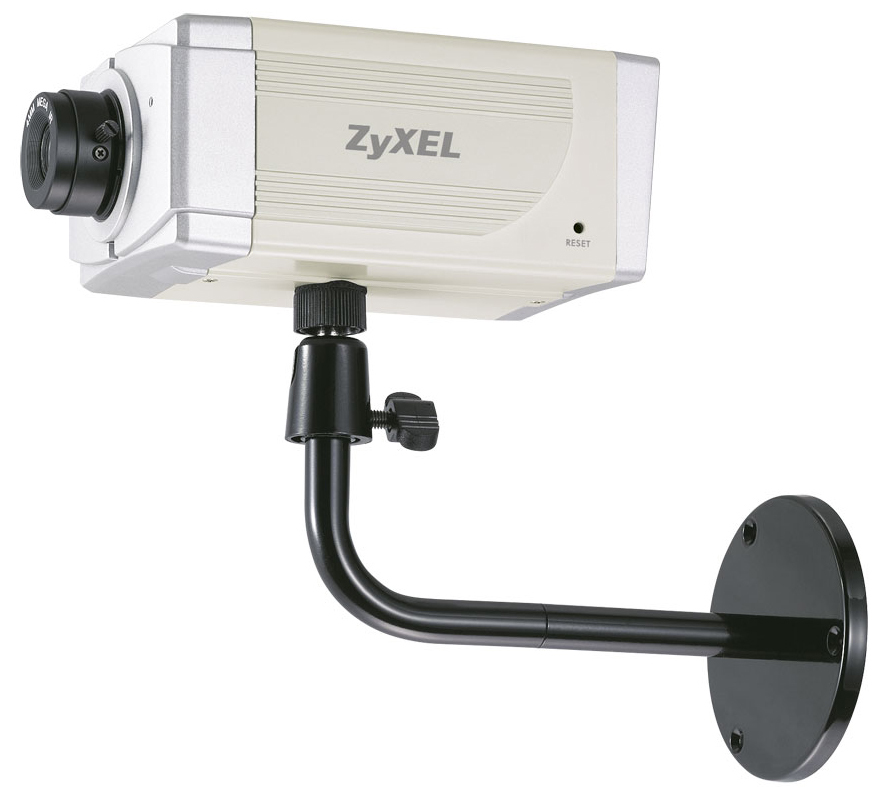

Mounting typeCeiling/wall
Product colourWhite
LED indicatorsLink, Power

Camera

Minimum illumination1 lx

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3.2 mm (1 / 3.2")

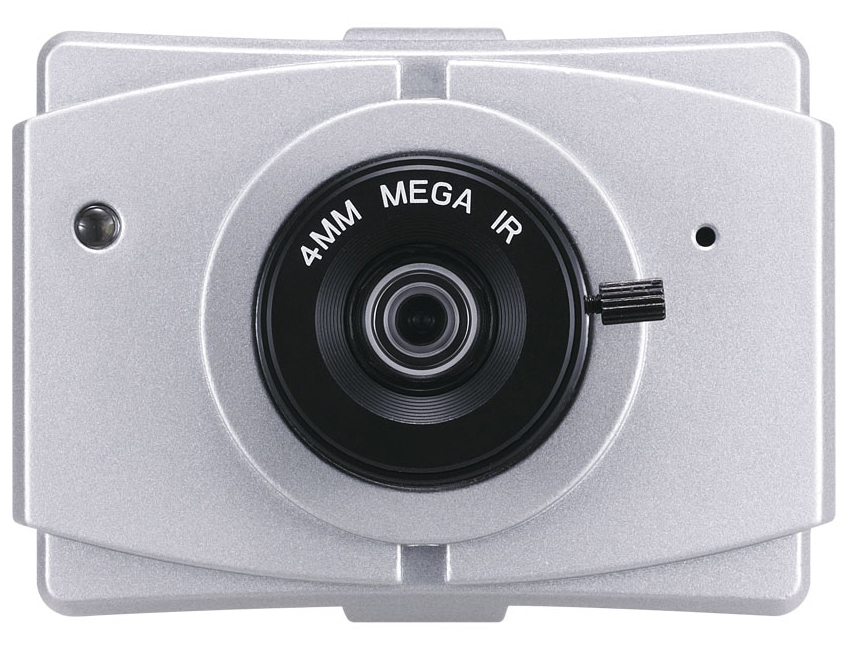

Lens system

Optical zoom0x
Digital zoom3x
Fixed focal length4 mm

Video

Maximum resolution1280 x 1024 pixels
Total megapixels2 MP
Video formats supportedH.264, M-JPEG, MPEG4
Supported graphics resolutions160 x 120, 320 x 240, 640 x 480 (VGA)
Frame rate15 fps

Audio

Audio codecsPCM/AMR
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
Supported network protocolsIP, PPPoE
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsSD, SDHC

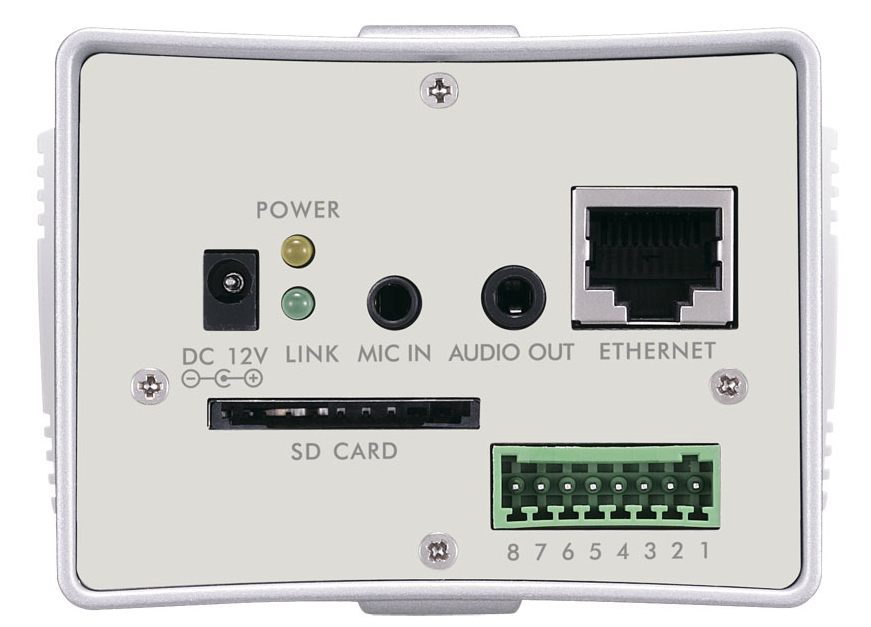

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes
Headphone outputs1
InterfaceRJ-45

Security

IP address filteringYes

Management features

Reset buttonYes

Power

Power source typePoE
AC input voltage120-240 V
Power consumption (typical)8 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)20 - 90%
Storage relative humidity (H-H)20 - 90%

System requirements

Minimum RAM512 MB
Minimum processorIntel Pentium III 800 MHz

Weight & dimensions

Width80 mm
Depth142 mm
Height57 mm
Weight500 g

Packaging data

Package width283 mm
Package depth174 mm
Package height91 mm
Package weight1.22 kg

Packaging content

Cables includedAC, LAN (RJ-45)
Mounting brackets includedYes
Quick start guideYes

Other features

Compatible operating systemsWindows XP, Vista, 7
Compliance industry standardsIEEE 802.3af
Networking featuresFast Ethernet
Power LEDYes
