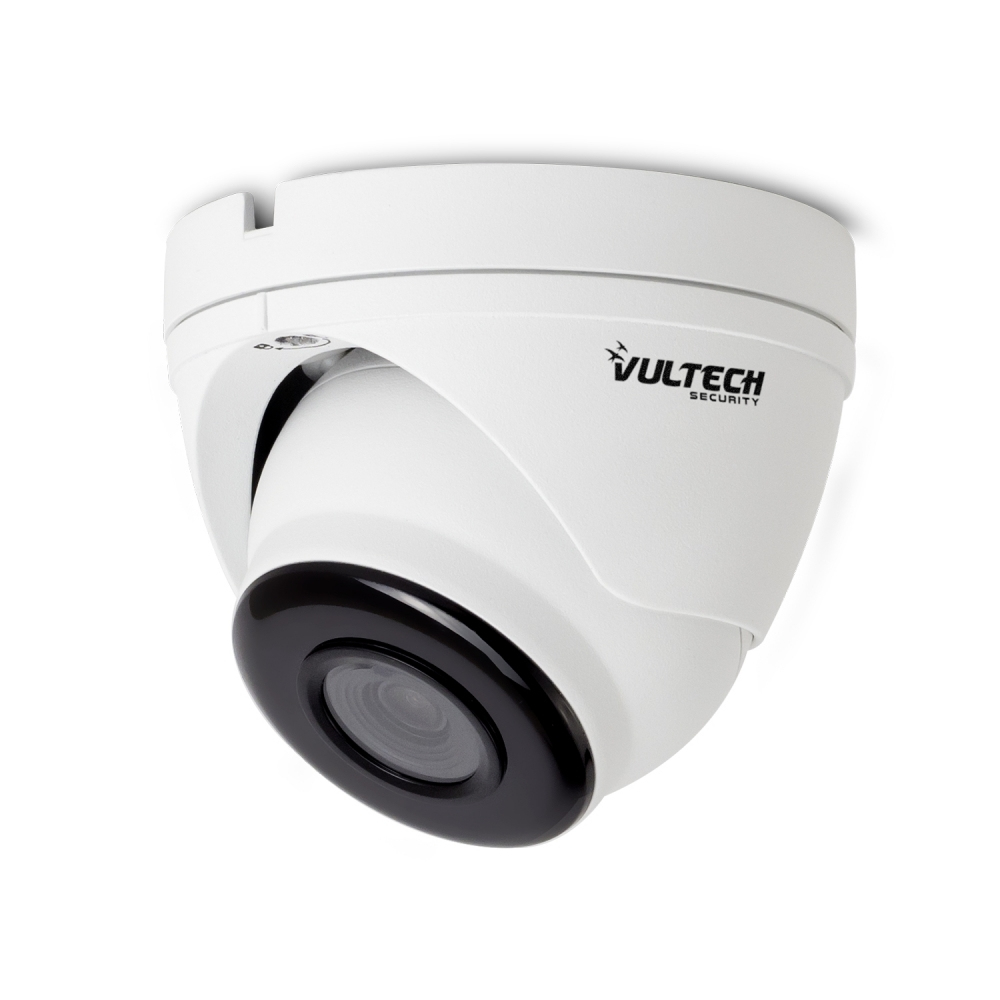

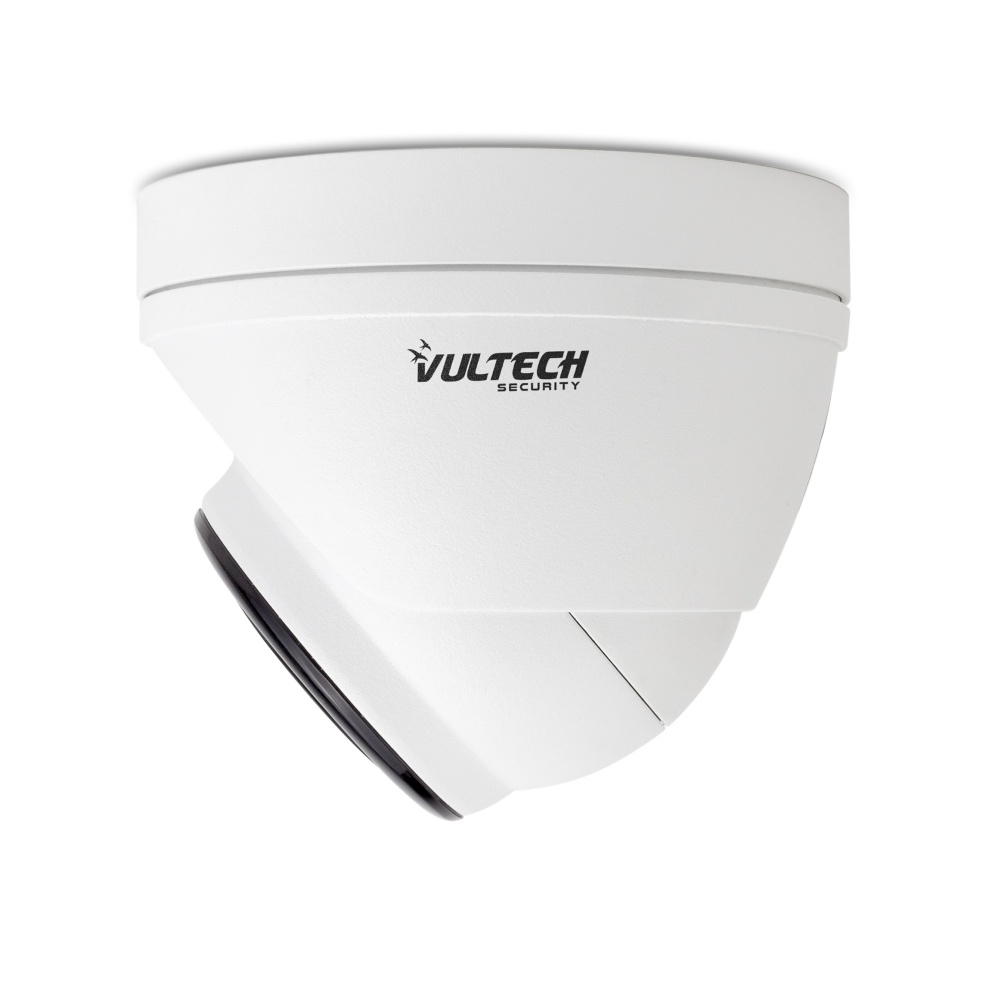

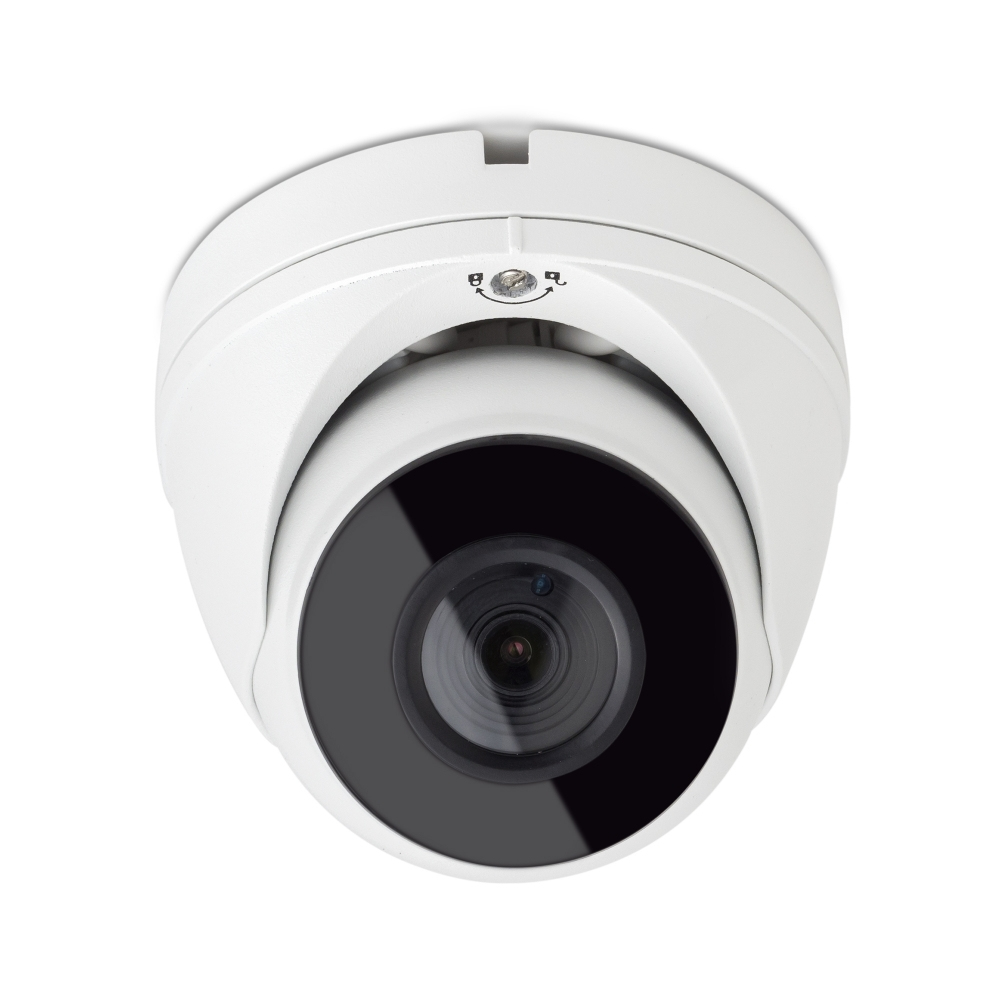

Serie 5000 VS-UVC5020DMF-LT security camera Dome CCTV security camera Indoor & outdoor
1920 x 1080 pixels Ceiling
Model VS-UVC5020DMF-LTEAN 8057284625803
45 specifications
- ConnectivityWired
- TypeCCTV security camera
- ColourWhite
- Form factorDome
- Minimum illumination0.05 lx
- Sensor typeCMOS
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0.05 lx
- Sensor type
- CMOS
- Brand
- Vultech Security
- Category
- Security Camera
- Model
- VS-UVC5020DMF-LT
- Part number
- VS-UVC5020DMF-LT
- EAN / UPC
- 8057284625803
- Also known as
- Vultech Security Serie 5000 VS-UVC5020DMF-LT security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
Specifications
45 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Number of languages | 7 |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Metal |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.05 lx |
| Lens viewing angle, diagonal | 87.4° |
| White balance | ATW, MWB |
| Camera shutter speed | 1/50 (1/60) - 1/50000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Fixed focus | Yes |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Number of illumination LEDs | 18 |
| Infra-red wavelength | 850 nm |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction |
| Back Light Compensation (BLC) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Composite video out | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 3.84 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 82 mm |
| Diameter | 10 cm |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Manual | Yes |
