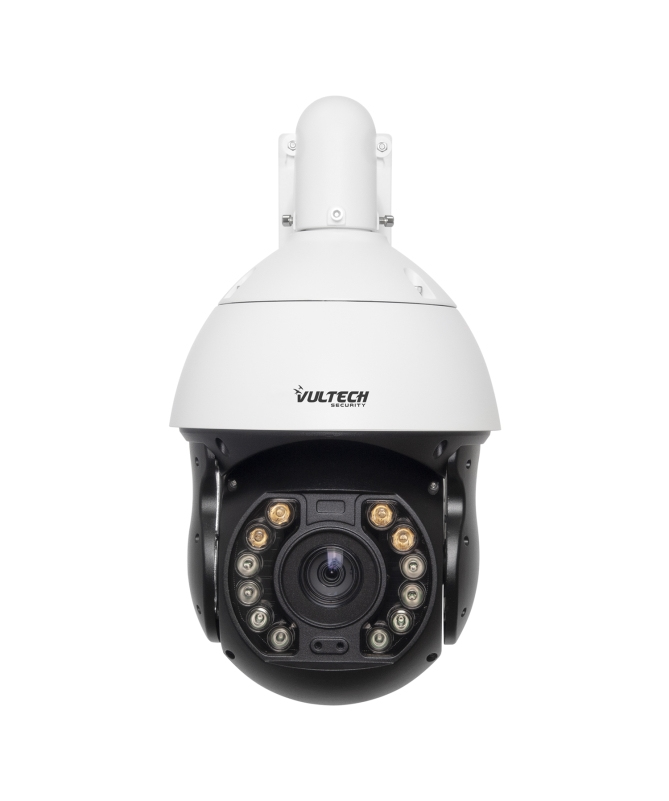

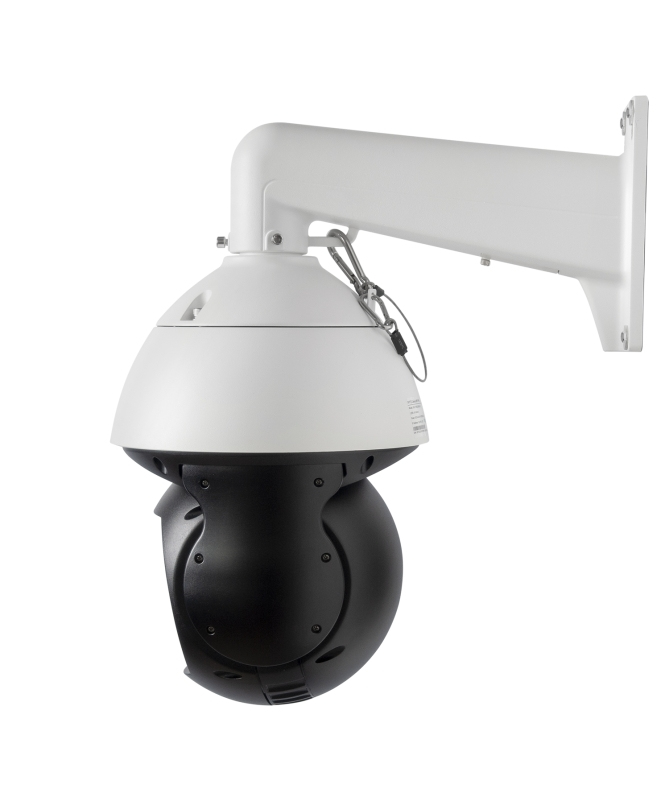

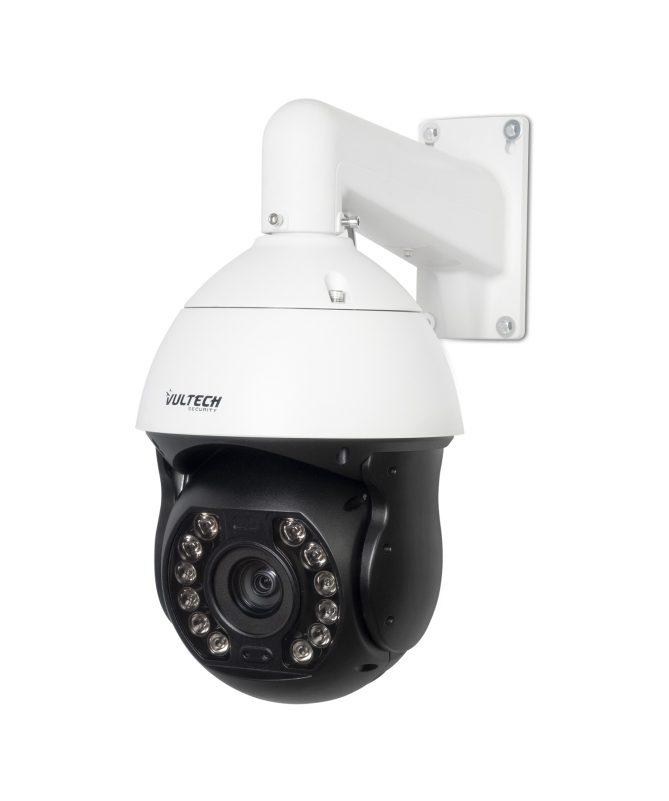

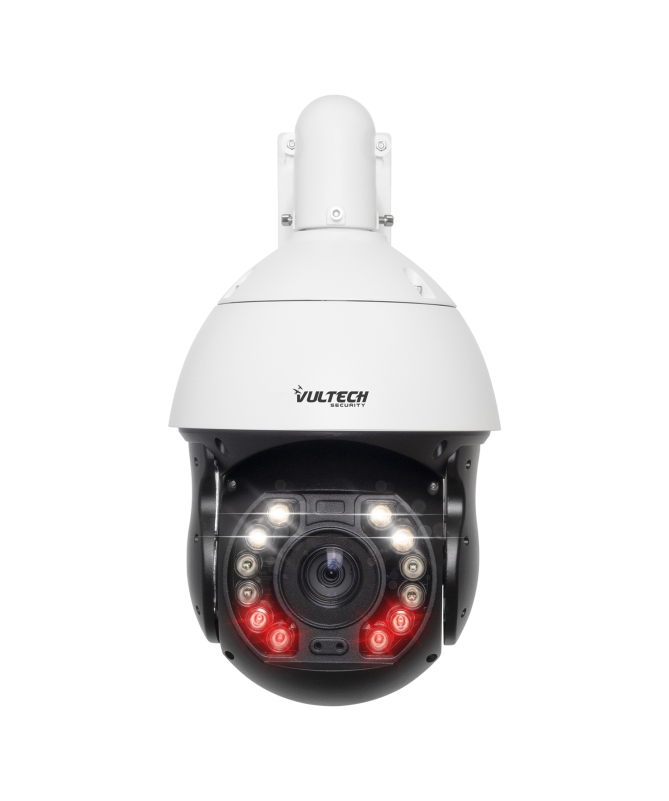

Vultech Security VS-PTZ8532XWDA-LT security camera Spherical IP security camera Indoor & outdoor
Vultech Security

VS-PTZ8532XWDA-LT security camera Spherical IP security camera Indoor & outdoor

2592 x 1944 pixels Wall

Model VS-PTZ8532XWDA-LTEAN 8052780302821

85 specifications
  • ConnectivityWired
  • TypeIP security camera
  • ColourWhite
  • Form factorSpherical
  • Camera pan controlYes
  • Sensor typeCMOS
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Colour
White
Form factor
Spherical
Camera pan control
Yes
Sensor type
CMOS
Brand
Vultech Security
Model
VS-PTZ8532XWDA-LT
Part number
VS-PTZ8532XWDA-LT
EAN / UPC
8052780302821
Also known as
Vultech Security VS-PTZ8532XWDA-LT security camera Spherical IP security camera Indoor & outdoor 2592 x 1944 pixels Wall

Specifications

85 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
Dynamic range120 dB

Design

Form factorSpherical
Mounting typeWall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.006 lx
Tilt angle range-10 - 90°
Tilt speed60 °/sec
Pan range0 - 360°
Pan speed120 °/sec
Auto flipYes
White balanceAuto, Manual
Camera shutter speed1/3 - 1/10000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom32x
Digital zoom16x
Proportional zoomYes
Focal length range4.8 - 154 mm

Night vision

Night visionYes
Night vision distance250 m
LED typeIR
Number of illumination LEDs8

Video

Maximum resolution2592 x 1944 pixels
Total megapixels5 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Frame rate25 fps
Video streamingYes
Noise reductionYes
Noise reduction technology2D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate32Kbps - 8Mbps
Image quality adjustmentBrightness, Contrast, Saturation
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Voice codecsG.711a, G.711u

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels1
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresCrossing line, Human detection, Region entrance detection, Region exiting detection, Vehicle detection
Network access storage (NAS)Yes
Video motion detectionYes

Management features

Firmware upgradeableYes
Remotely operatedYes
Reset buttonYes
Management softwareV-Guardian VMS, V-Guardian Evo Mobile

Power

Power source typeAC, PoE
Power consumption (max)25 W
DC output voltage24
DC output current2.2 A

Operational conditions

Operating temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)10 - 90%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height87 mm
Diameter10.5 cm

Packaging data

Package typeBox

Packaging content

Number of cameras1
Mounting kitYes
ManualYes

Other features

Browser supportedInternet Explorer, Chrome, Firefox
