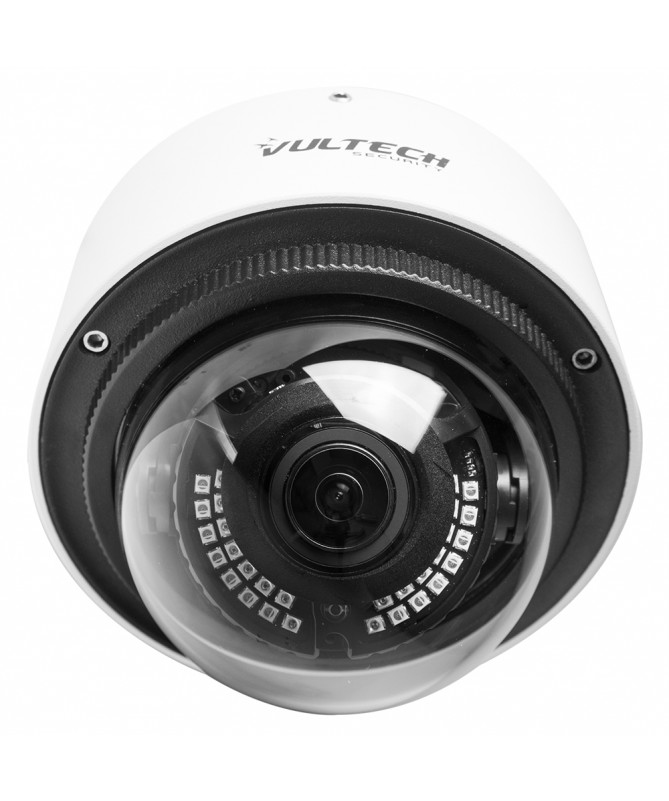

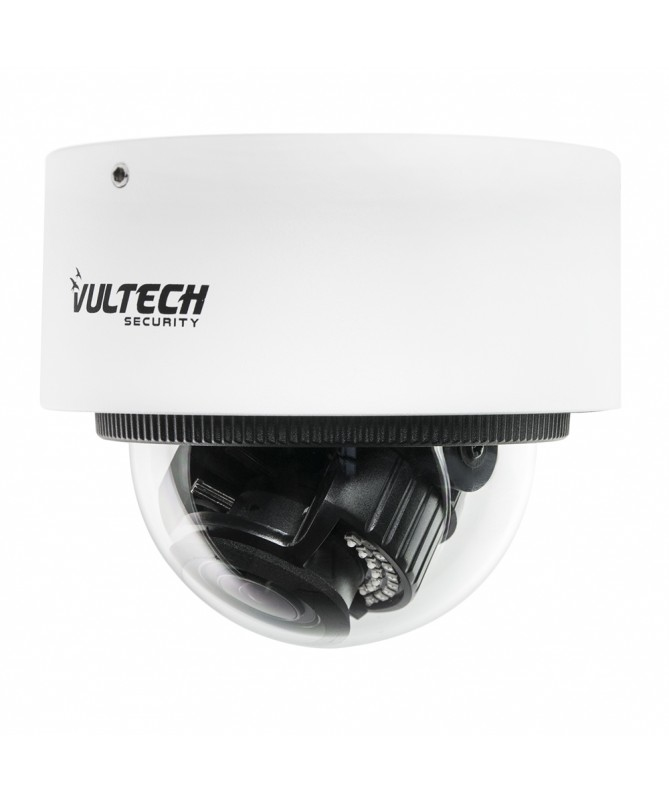

VS-IPC3530DMVWDS-PR security camera Dome IP security camera Indoor & outdoor
2048 x 1536 pixels Ceiling/wall
Model VS-IPC3530DMVWDS-PREAN 8057284625056
67 specifications
- ConnectivityWired
- TypeIP security camera
- ColourWhite
- Form factorDome
- Minimum illumination0.01 lx
- Sensor typeCMOS
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0.01 lx
- Sensor type
- CMOS
- Brand
- Vultech Security
- Category
- Security Camera
- Model
- VS-IPC3530DMVWDS-PR
- Part number
- VS-IPC3530DMVWDS-PR
- EAN / UPC
- 8057284625056
- Also known as
- Vultech Security VS-IPC3530DMVWDS-PR security camera Dome IP security camera Indoor & outdoor 2048 x 1536 pixels Ceiling/wall
Specifications
67 specifications in 18 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Languages support | English, Spanish, Italian, Portuguese |
| Number of languages | 4 |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| International Protection (IP) code | IP66 |
| Fog proof | Yes |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.01 lx |
| Field of view (FOV) angle | 100° |
| White balance | Auto |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/50 (1/60) - 1/10000 s |
| Adjustment shutter speed | Auto/Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focal length range | 2.8 - 12 mm |
| Focus | Manual |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 30 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
| Total megapixels | 3 MP |
| Video formats supported | H.265 |
| Supported video modes | 720p, 1080p |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| 3D NR (Noise Reduction) | Yes |
| Bit rate | 32Kbps - 10Mbps |
| Image quality adjustment | Brightness, Contrast, Saturation |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
Audio
| Specification | Value |
|---|---|
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Supported network protocols | TCP/IP, P2P, HTTP, HTTPS, DHCP, DNS, DDNS, RTSP, SMTP, NTP, UPnP, NAS |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 128 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| BNC output ports | 1 |
| Interface | RJ-45 |
Security
| Specification | Value |
|---|---|
| Motion sensor | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (max) | 10 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 120 mm |
| Diameter | 14 cm |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Manual | Yes |
