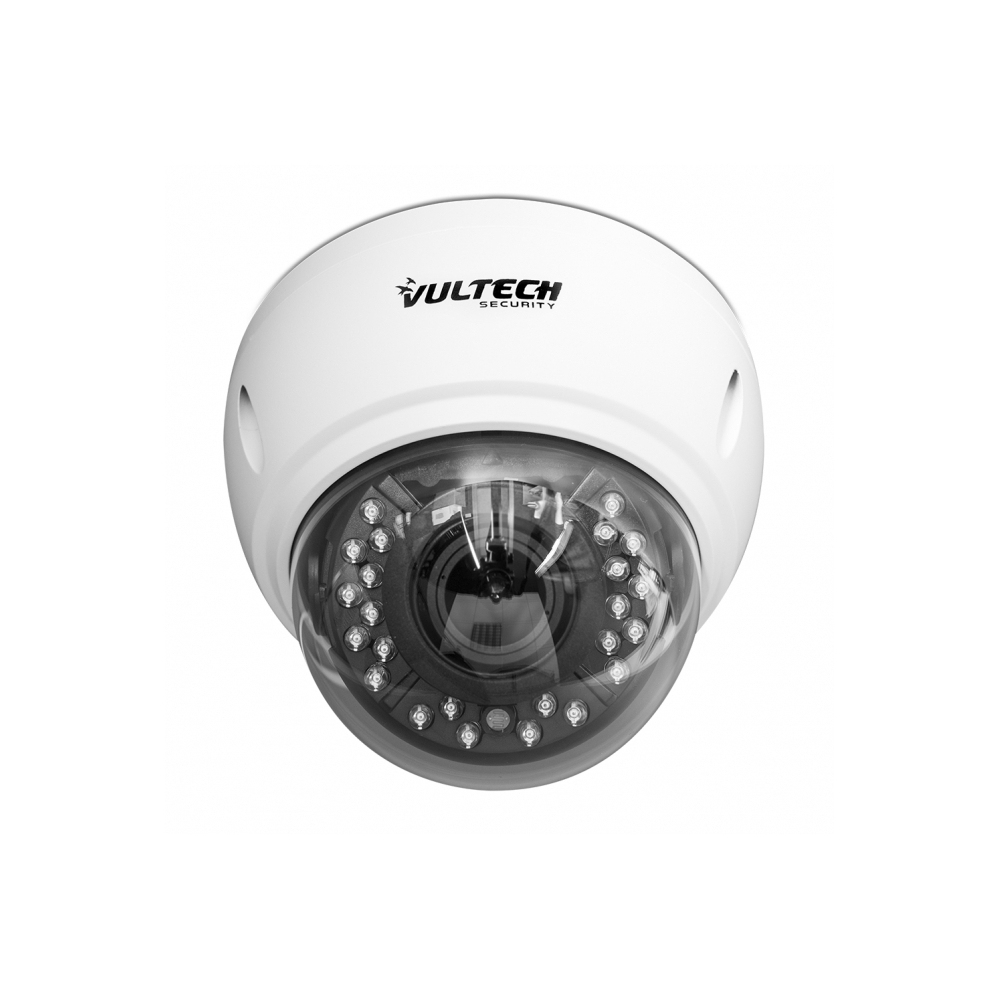

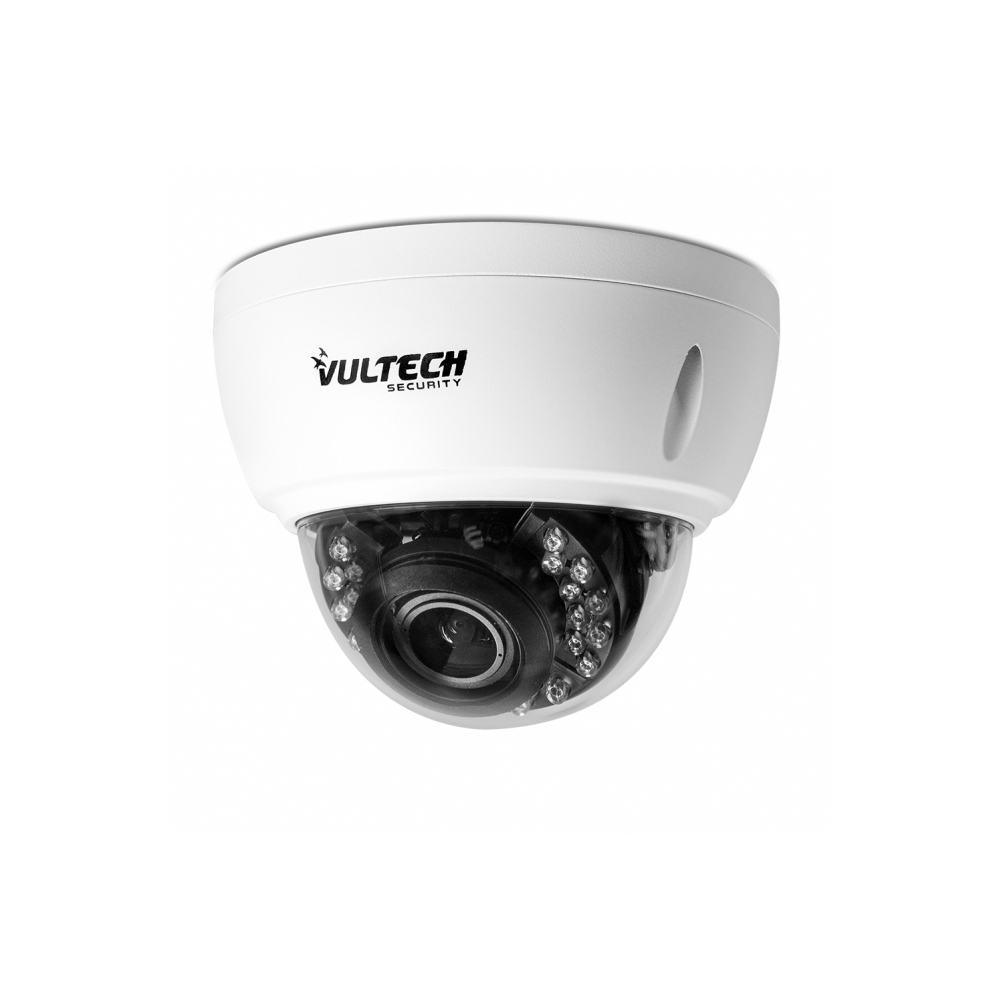

VS-IPC2520DMVK-LT security camera Dome IP security camera Indoor & outdoor
1920 x 1080 pixels Ceiling
Model VS-IPC2520DMVK-LTEAN 8057284625568
71 specifications
- ConnectivityWired
- TypeIP security camera
- ColourWhite
- Form factorDome
- Minimum illumination0 lx
- Sensor typeCMOS
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0 lx
- Sensor type
- CMOS
- Brand
- Vultech Security
- Category
- Security Camera
- Model
- VS-IPC2520DMVK-LT
- Part number
- VS-IPC2520DMVK-LT
- EAN / UPC
- 8057284625568
- Also known as
- Vultech Security VS-IPC2520DMVK-LT security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
Specifications
71 specifications in 20 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Glass, Metal |
| Protection features | Vandal proof |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Field of view (FOV) angle | 100° |
| White balance | Auto, Manual, Natural, Outdoor |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 - 1/10000 s |
| Adjustment shutter speed | Auto/Manual |
| Number of Privacy masking areas | 4 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 2.8 - 12 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 24 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported video modes | 720p, 1080p |
| Frame rate | 25 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 32Kbps - 8Mbps |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | G.711 A-law |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Networking standards | IEEE 802.3af |
| Supported network protocols | TCP/IP, P2P,ICMP,HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, SMTP, NTP, UPnP,UPnP |
| Live view | Yes |
| Number of simultaneous live view channels | 3 channels |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | No |

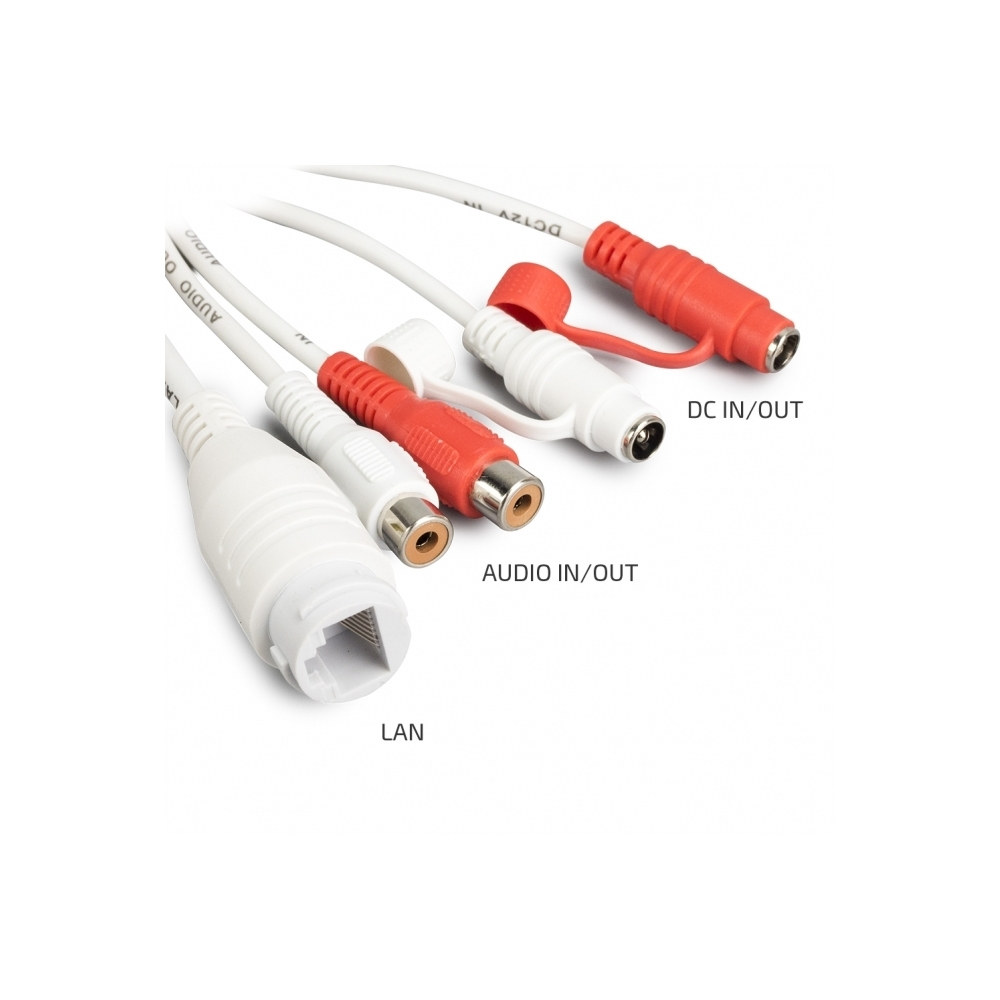

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Crossing line, Intrusion, Missing object |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (typical) | 6 W |
| DC output voltage | 12 |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 105 mm |
| Diameter | 13.7 cm |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Sustainability compliance | Yes |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Audio input | 1 |
Other features
| Specification | Value |
|---|---|
| Audio output | 1 |
| Browser supported | Internet Explorer, Chrome, Firefox, Safari |
