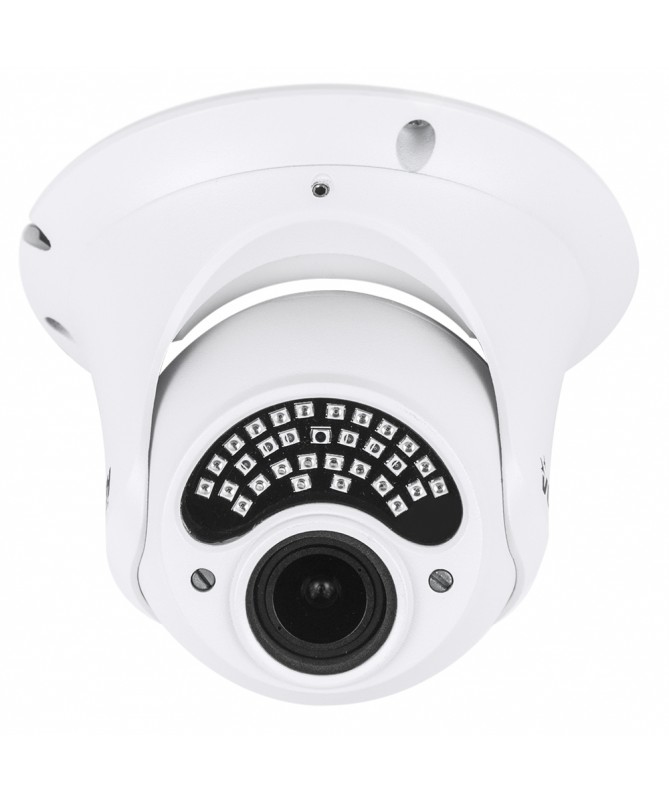

VS-IPC2420DMV-LT security camera Dome IP security camera Indoor & outdoor
1920 x 1080 pixels Ceiling/wall
Model VS-IPC2420DMV-LTEAN 8057284625018
54 specifications
- ConnectivityWired
- TypeIP security camera
- ColourWhite
- Form factorDome
- Minimum illumination0.01 lx
- Sensor typeCMOS
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0.01 lx
- Sensor type
- CMOS
- Brand
- Vultech Security
- Category
- Security Camera
- Model
- VS-IPC2420DMV-LT
- Part number
- VS-IPC2420DMV-LT
- EAN / UPC
- 8057284625018
- Also known as
- Vultech Security VS-IPC2420DMV-LT security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
Specifications
54 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Certification | CE |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| International Protection (IP) code | IP66 |
| Fog proof | Yes |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.01 lx |
| Field of view (FOV) angle | 103° |
| White balance | Auto |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/50 (1/60) - 1 / 10000 s |
| Adjustment shutter speed | Auto/Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focal length range | 2.8 - 12 mm |
| Focus | Manual |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 30 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported video modes | 720p, 1080p |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| 3D NR (Noise Reduction) | Yes |
| Bit rate | 32Kbps - 8Mbps |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | Yes |
| Ethernet interface type | Fast Ethernet |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | RJ-45 |
Security
| Specification | Value |
|---|---|
| Motion sensor | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (max) | 6 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 137 mm |
| Height | 105 mm |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
