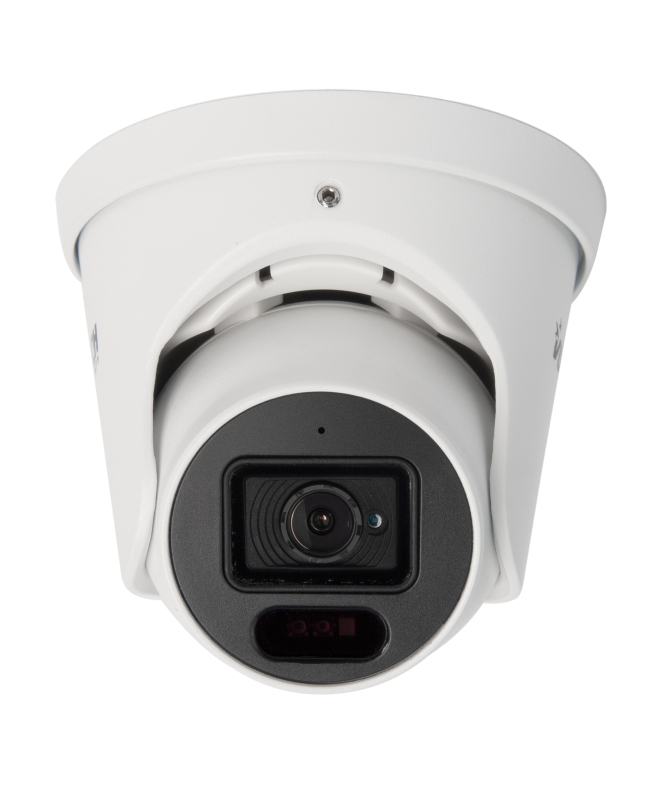

VS-IPC1550D1FE-ECO V1
Model VS-IPC1550D1FE-ECO V1EAN 8052780302708
54 specifications
- ConnectivityWired
- TypeIP security camera
- ColourWhite
- Form factorDome
- Minimum illumination0 lx
- Sensor typeCMOS
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0 lx
- Sensor type
- CMOS
- Brand
- Vultech Security
- Category
- Security Camera
- Model
- VS-IPC1550D1FE-ECO V1
- Part number
- VS-IPC1550D1FE-ECO V1
- EAN / UPC
- 8052780302708
- Also known as
- Vultech Security VS-IPC1550D1FE-ECO V1 security camera Dome IP security camera Indoor & outdoor Ceiling
Specifications
54 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Field of view (FOV) angle | 100° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 - 1/10000 s |
| Number of Privacy masking areas | 4 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Number of effective pixels (H x V) | 2880 x 1620 pixels |
Lens system
| Specification | Value |
|---|---|
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
Video
| Specification | Value |
|---|---|
| Total megapixels | 5 MP |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Frame rate | 20 fps |
| Video streaming | Yes |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 97/8504 |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Image quality adjustment | DNR |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Voice codecs | G.711a, G.711u |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Supported network protocols | TCP/IP, P2P,HTTP, HTTPS,DHCP, DNS, DDNS, RTP, RTSP, RTCP, SMTP, NTP, UPnP,UPnP™, Bonjour |
Security
| Specification | Value |
|---|---|
| Human and vehicle targets classification | Yes |
| Motion sensor | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| AC input voltage | 12 V |
| Power consumption (typical) | 5.5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Diameter | 10.2 cm |
| Length | 87 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Manual | Yes |
