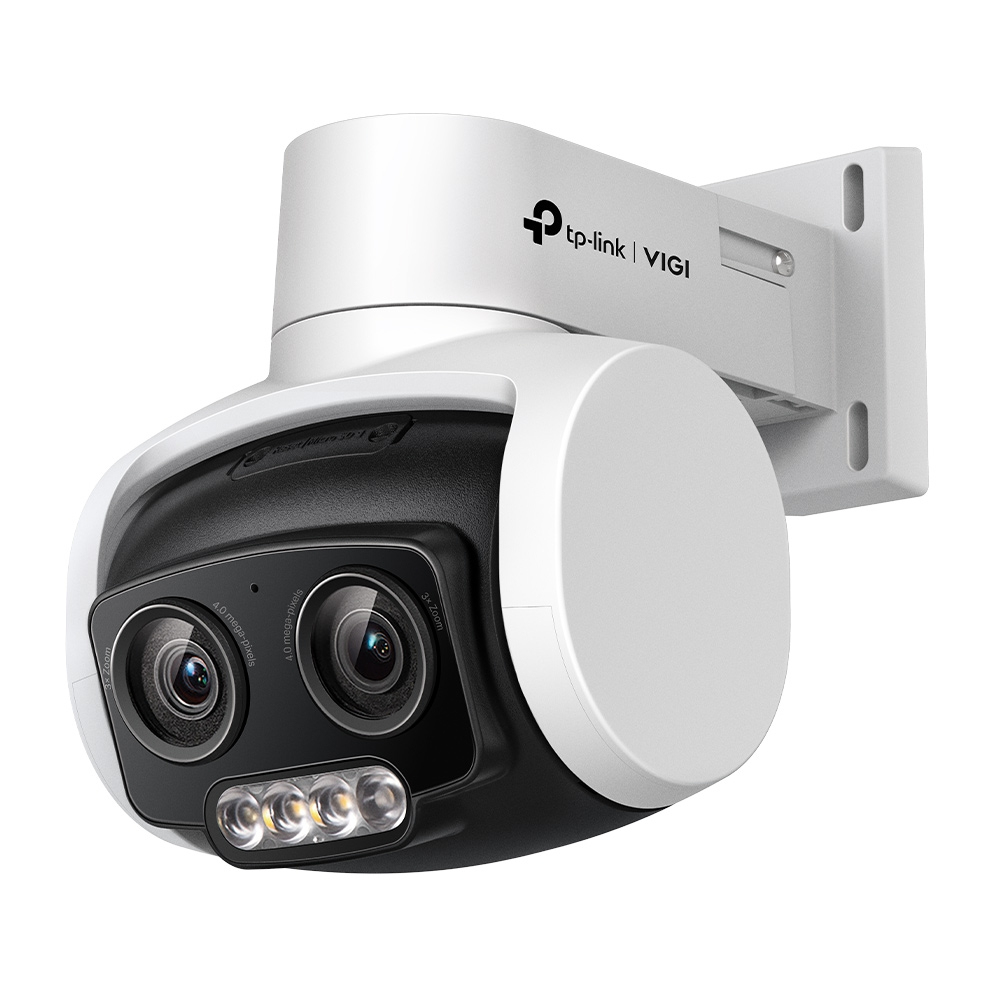

VIGI C540V
Model VIGI C540VEAN 4895252500837
65 specifications
- ConnectivityWired
- TypeIP security camera
- Weight430 g
- ColourWhite, Black
- Mounting typeCeiling
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 430 g
- Colour
- White, Black
- Mounting type
- Ceiling
- Camera pan control
- Yes
- Brand
- TP-Link
- Category
- Security Camera
- Model
- VIGI C540V
- Part number
- VIGI C540V
- EAN / UPC
- 4895252500837, 4895252500844
- Also known as
- TP-Link VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera
Specifications
65 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Certification | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
Design
| Specification | Value |
|---|---|
| Mounting type | Ceiling |
| Product colour | White, Black |
| Housing material | Plastic |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 84° |
| Lens viewing angle, vertical | 46° |
| Lens viewing angle, diagonal | 100° |
| Tilt angle range | 0 - 120° |
| Tilt speed | 40 °/sec |
| Pan range | 0 - 332° |
| Pan speed | 55 °/sec |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Digital zoom | 3x |
| Focal length range | 4 - 12 mm |
| Maximum aperture number | 1.6 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
| Infra-red wavelength | 850 nm |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Supported video modes | 720p, 1080p, 1440p |
| Video recording | Yes |
| Frame rate | 30 fps |
| Bit rate | 256 Kbps - 4 Mbps |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power consumption (typical) | 2.9 W |
| Power consumption (max) | 14 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 136 mm |
| Depth | 139 mm |
| Height | 107 mm |
| Weight | 430 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 660 g |
| Package type | Box |

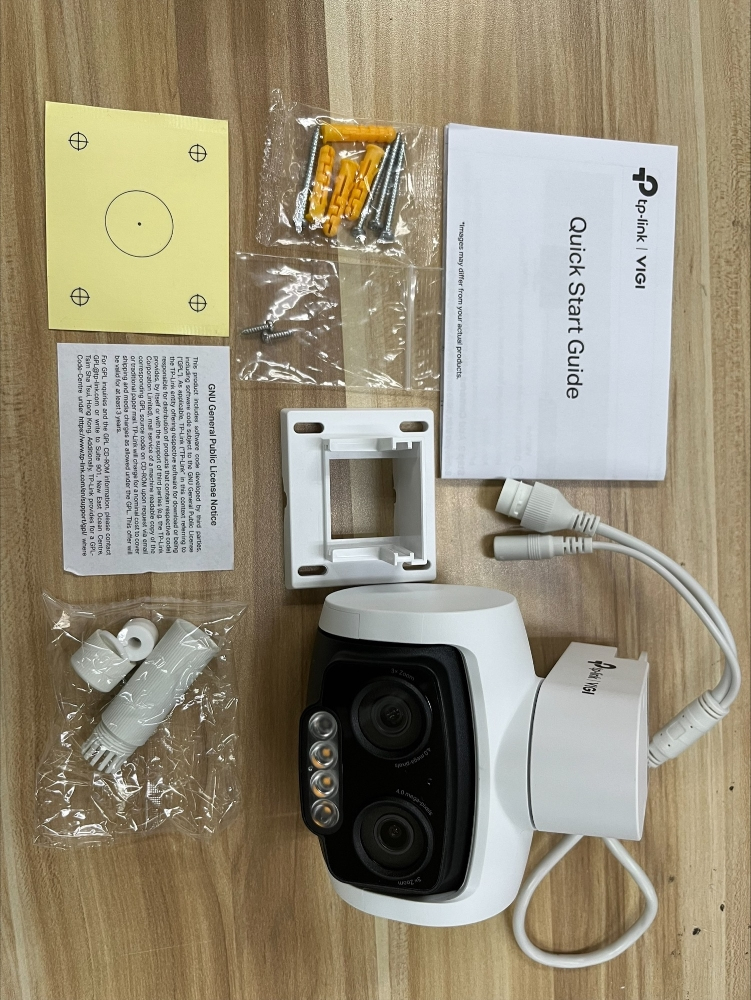

Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Manual | Yes |
