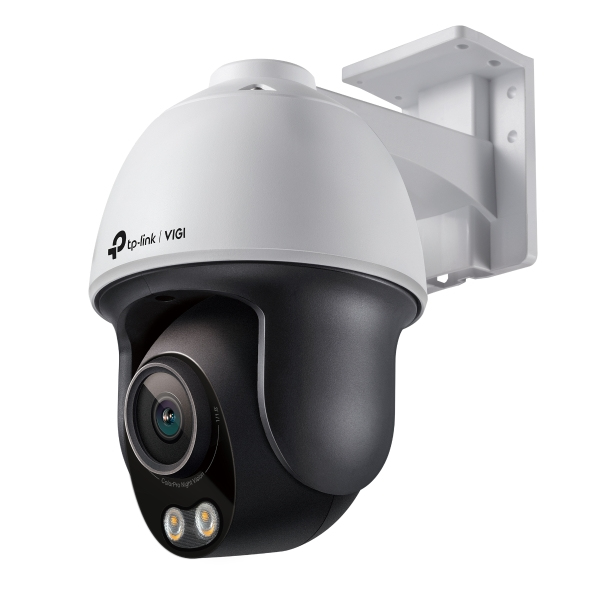

TP-Link VIGI C540S(4mm)
TP-Link

VIGI C540S(4mm)

Model VIGI C540S(4mm)Part no. VIGI C540S(4MM)EAN 4895252503098

91 specifications
  • ConnectivityWired
  • TypeIP security camera
  • ColourBlack, White
  • Form factorTurret
  • Camera pan controlYes
  • Sensor typeCMOS
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Colour
Black, White
Form factor
Turret
Camera pan control
Yes
Sensor type
CMOS
Brand
TP-Link
Model
VIGI C540S(4mm)
Part number
VIGI C540S(4MM)
EAN / UPC
4895252503098
Also known as
TP-Link VIGI C540S(4mm) Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall

Specifications

91 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modesAuto scan, Preset point
Preset pointsYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC

Design

Form factorTurret
Mounting typeCeiling/wall
Product colourBlack, White
Housing materialPlastic
International Protection (IP) codeIP66

Camera

Camera pan controlYes
Camera tilt controlYes
Lens viewing angle, horizontal104°
Lens viewing angle, vertical55°
Lens viewing angle, diagonal127°
Tilt angle range0 - 105°
Tilt speed44 °/sec
Pan range0 - 348°
Pan speed44 °/sec

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")

Lens system

Number of lenses1
Detect distance63 m
Observe distance26 m
Recognize distance13 m
Lens diameter4 mm
Identify distance6 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Frame rate30 fps
Video streamingYes
Back Light Compensation (BLC)Yes
Bit rate256 Kbps - 6 Mbps
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Image quality adjustmentBrightness, Contrast, DNR, Mirror, Saturation, Sharpness
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Built-in speaker(s)Yes
Audio system2-way
Audio input channels1.0 channels
Audio output channels1.0 channels
Built-in microphoneYes
Bit rate range0 - 64 Kbit/s
Sample rates0 - 8 kHz

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Live viewYes
Number of simultaneous live view channels3 channels

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

Password protectionYes
Digest authenticationYes
HTTPS encryptionYes
Human and vehicle targets classificationYes
IP address filteringYes
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Human detection, Vehicle detection
MirrorYes

Management features

Web browserYes
Behavior analysisIntrusion detection, Line crossing detection, Region exiting detection
Reset buttonYes
Smartphone/tablet remote supportYes

Power

Power source typeDC, PoE
Power consumption (max)13.13 W
Power consumption (Power over Ethernet (PoE))16.47 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width120 mm
Depth172 mm
Height203 mm

Packaging content

Number of cameras1
