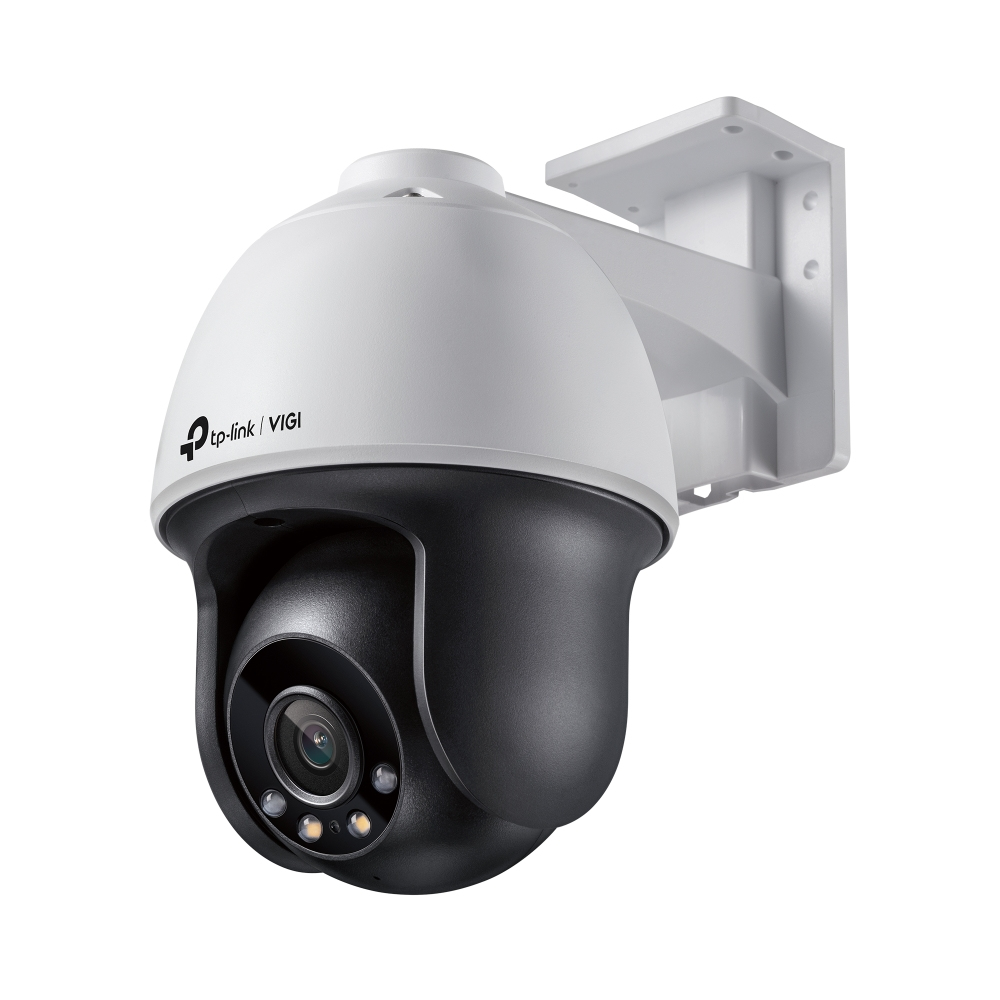

TP-Link VIGI C540
TP-Link

VIGI C540

Model VIGI C540Part no. VIGI C540(4MM)EAN 840030703782

72 specifications
  • ConnectivityWired
  • TypeIP security camera
  • ColourBlack, White
  • Form factorTurret
  • Camera pan controlYes
  • Sensor typeCMOS
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Colour
Black, White
Form factor
Turret
Camera pan control
Yes
Sensor type
CMOS
Brand
TP-Link
Model
VIGI C540
Part number
VIGI C540(4MM)
EAN / UPC
840030703782, 4897098681862, 4897098683781
Also known as
TP-Link VIGI 4MP Outdoor Full-Color Pan Tilt Network Camera

Specifications

72 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
CertificationRCM, BSMI, VCCI, NTRA, KC

Design

Form factorTurret
Mounting typeCeiling/wall
Product colourBlack, White
Housing materialPlastic
International Protection (IP) codeIP66

Camera

Camera pan controlYes
Camera tilt controlYes
Lens viewing angle, horizontal79°
Lens viewing angle, vertical43°
Lens viewing angle, diagonal93°

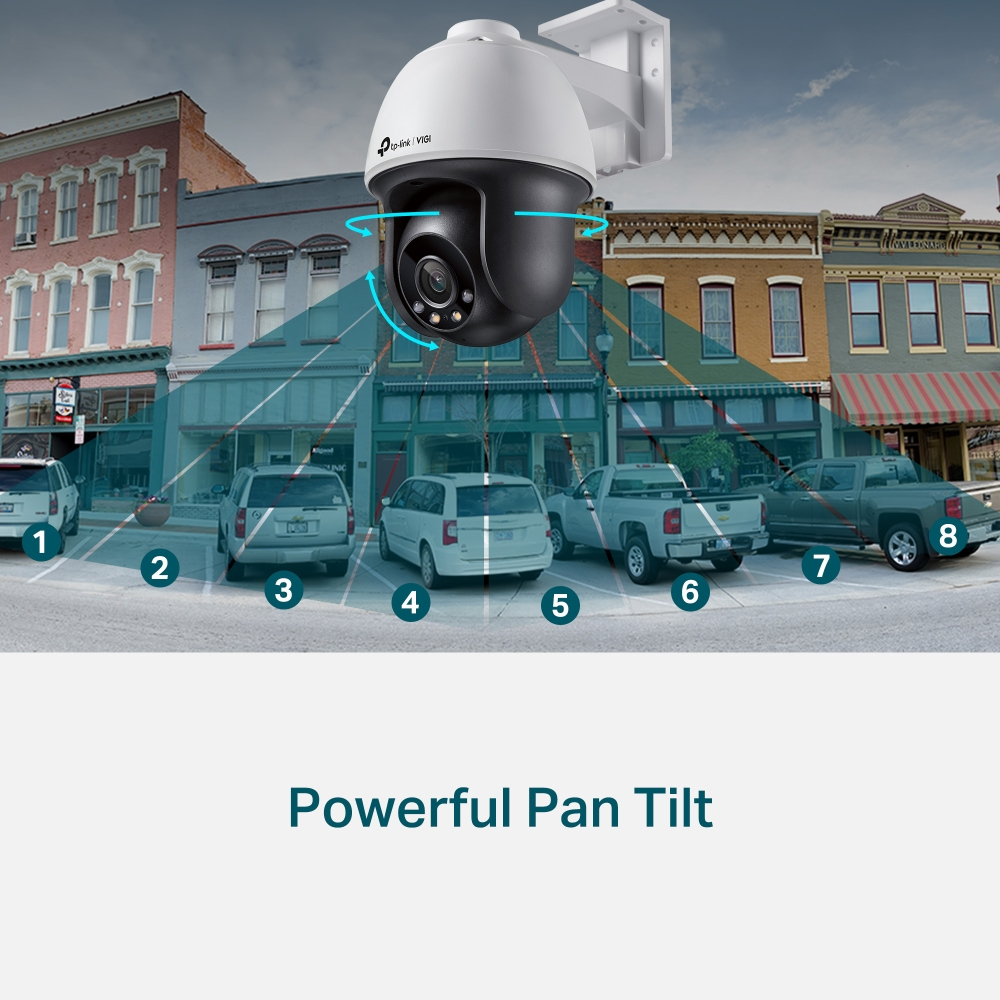

Tilt angle range0 - 120°
Pan range0 - 350°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")

Lens system

Number of lenses1
Zoom capabilityYes
Lens diameter4 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Bit rate256 Kbps - 4 Mbps
Digital Wide Dynamic Range (DWDR)Yes
Image quality adjustmentBrightness, Contrast, Mirror, Saturation, Sharpness
Privacy maskingYes

Audio

Built-in speaker(s)Yes
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

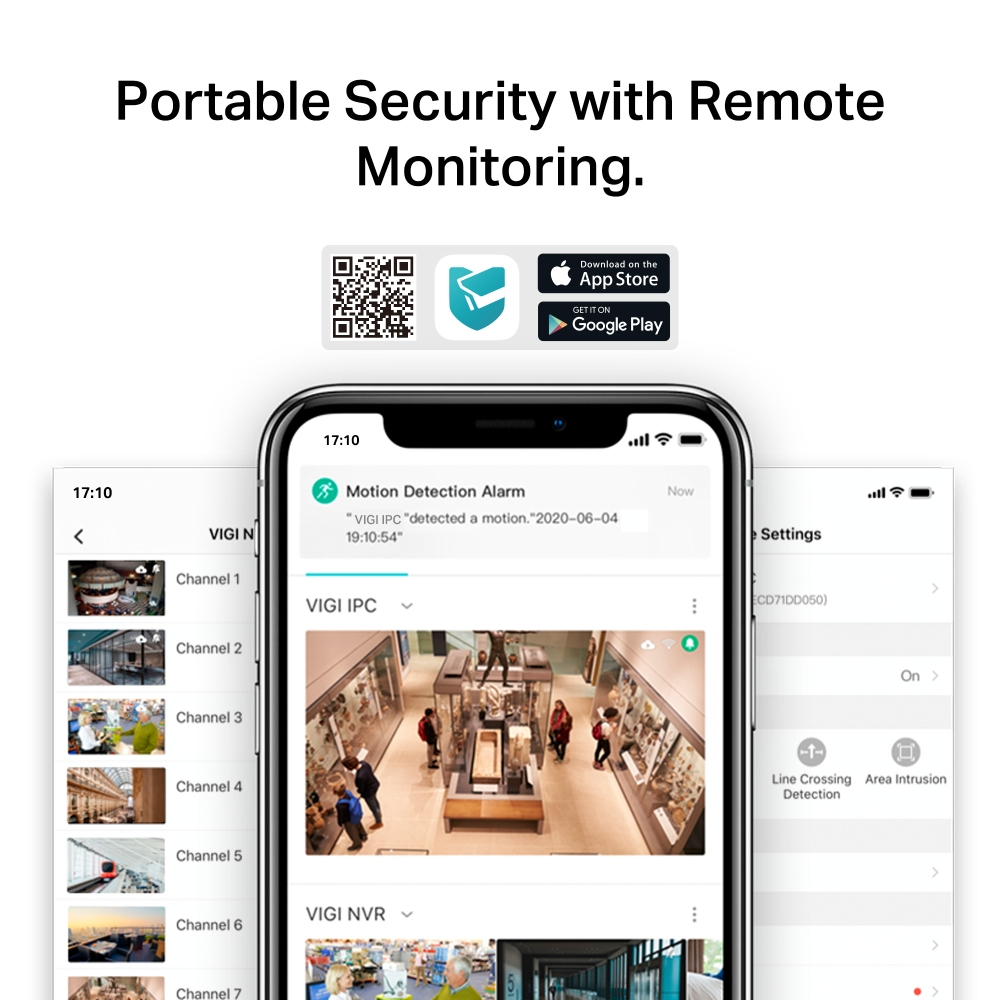

Live viewYes
Number of simultaneous live view channels3 channels

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Password protectionYes
Digest authenticationYes
HTTPS encryptionYes
IP address filteringYes
Intelligent Video Surveillance (IVS) system featuresHuman detection
MirrorYes

Management features

Behavior analysisIntrusion detection, Line crossing detection
Reset buttonYes

Power

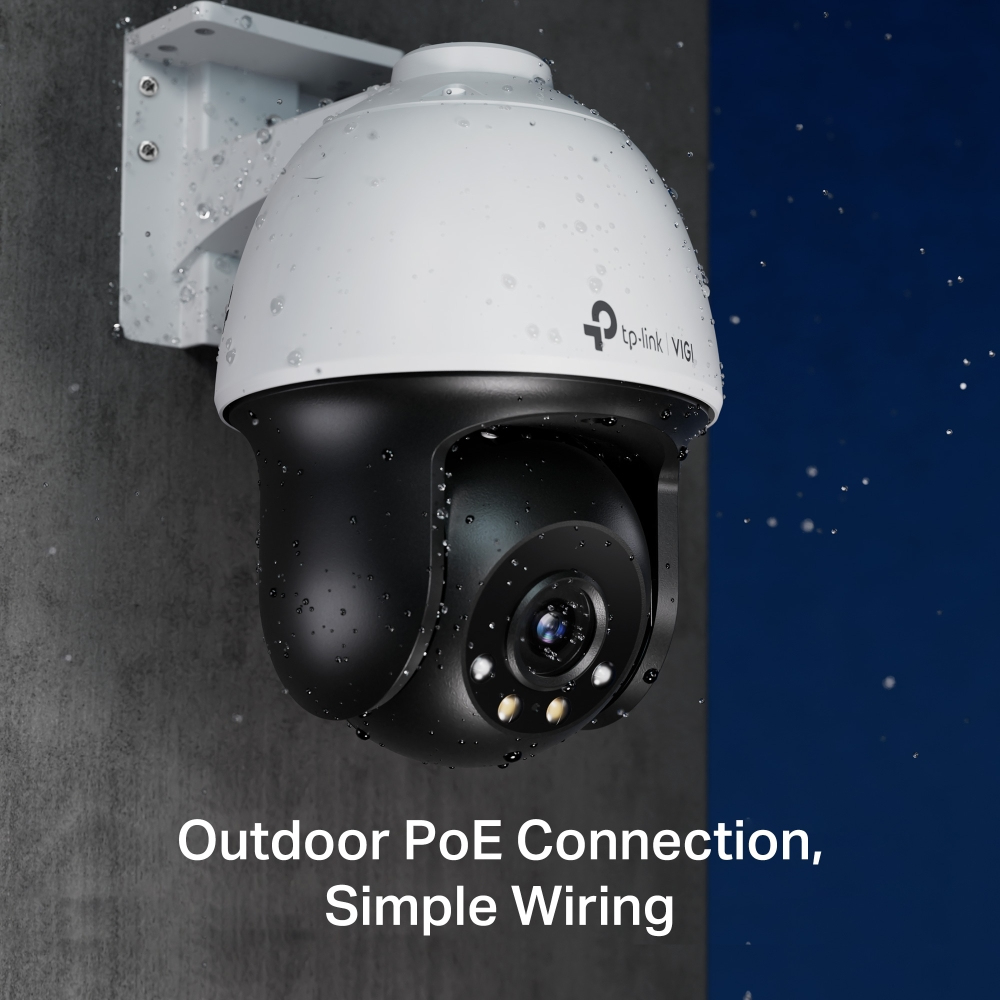

Power source typePoE
Power consumption (Power over Ethernet (PoE))14 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C

Weight & dimensions

Width120 mm
Depth172 mm
Height198 mm

Sustainability

Compliance certificatesCE, RoHS

Packaging data

Package width163 mm
Package depth213 mm
Package height243 mm
Package weight950 g

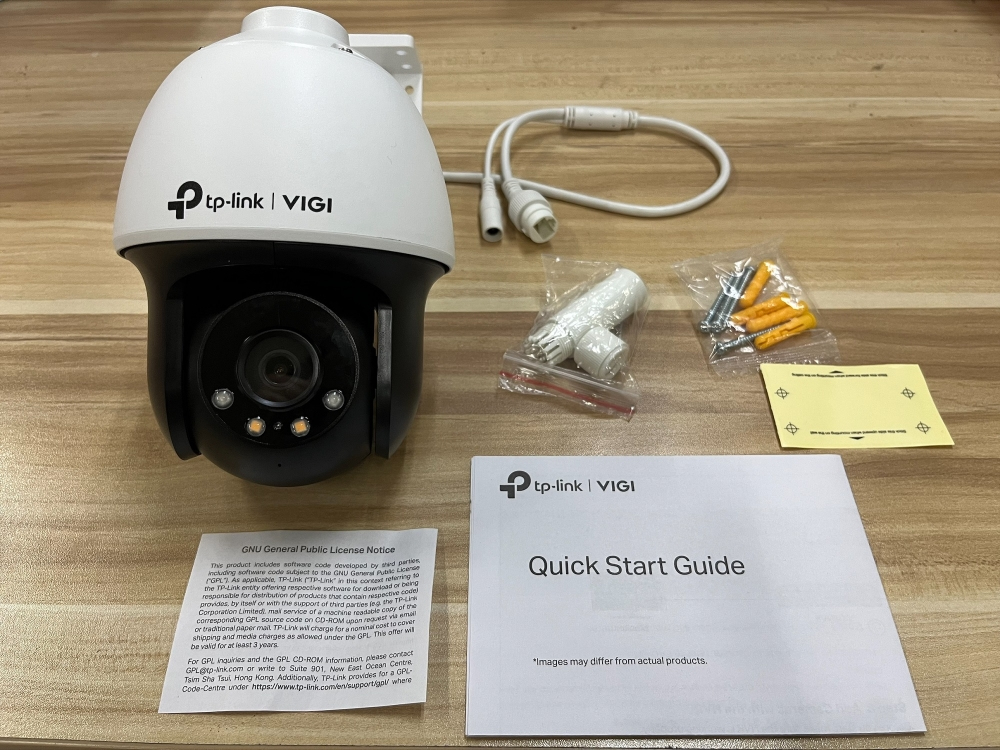

Packaging content

Number of cameras1
Mounting kitYes
