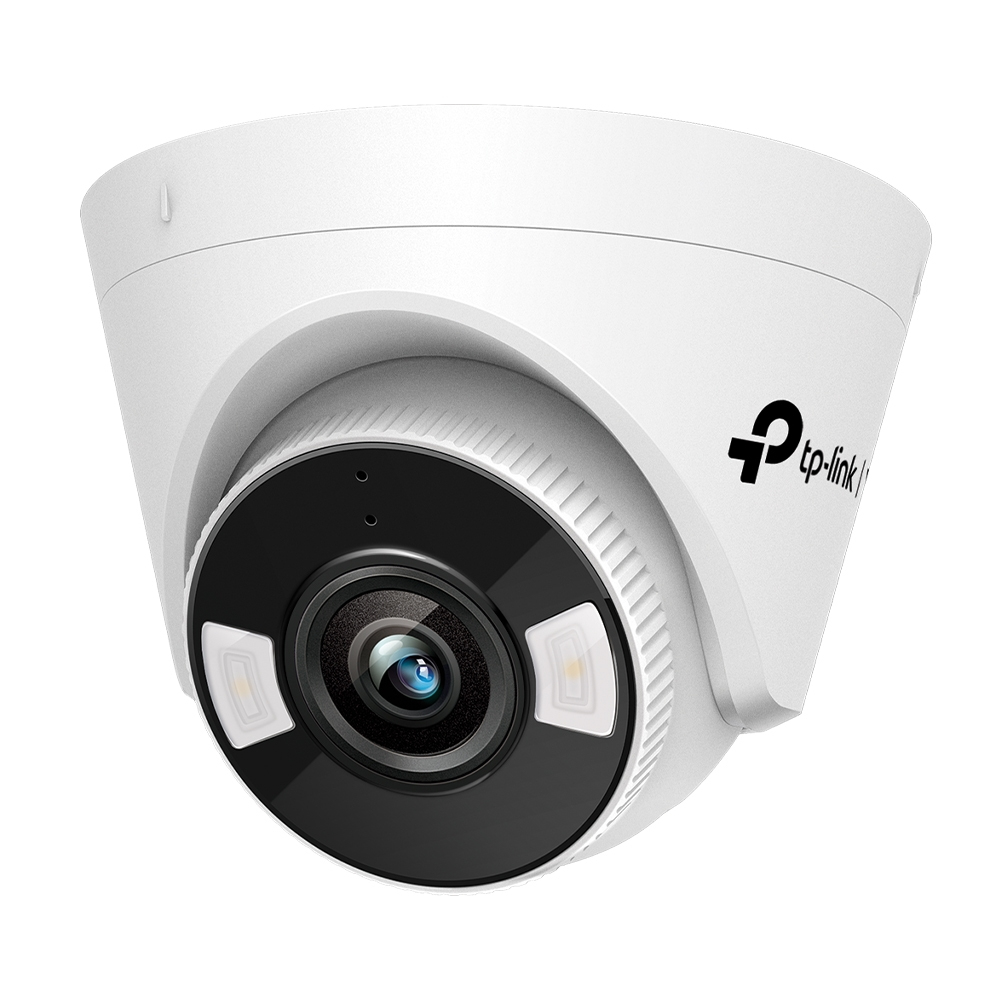

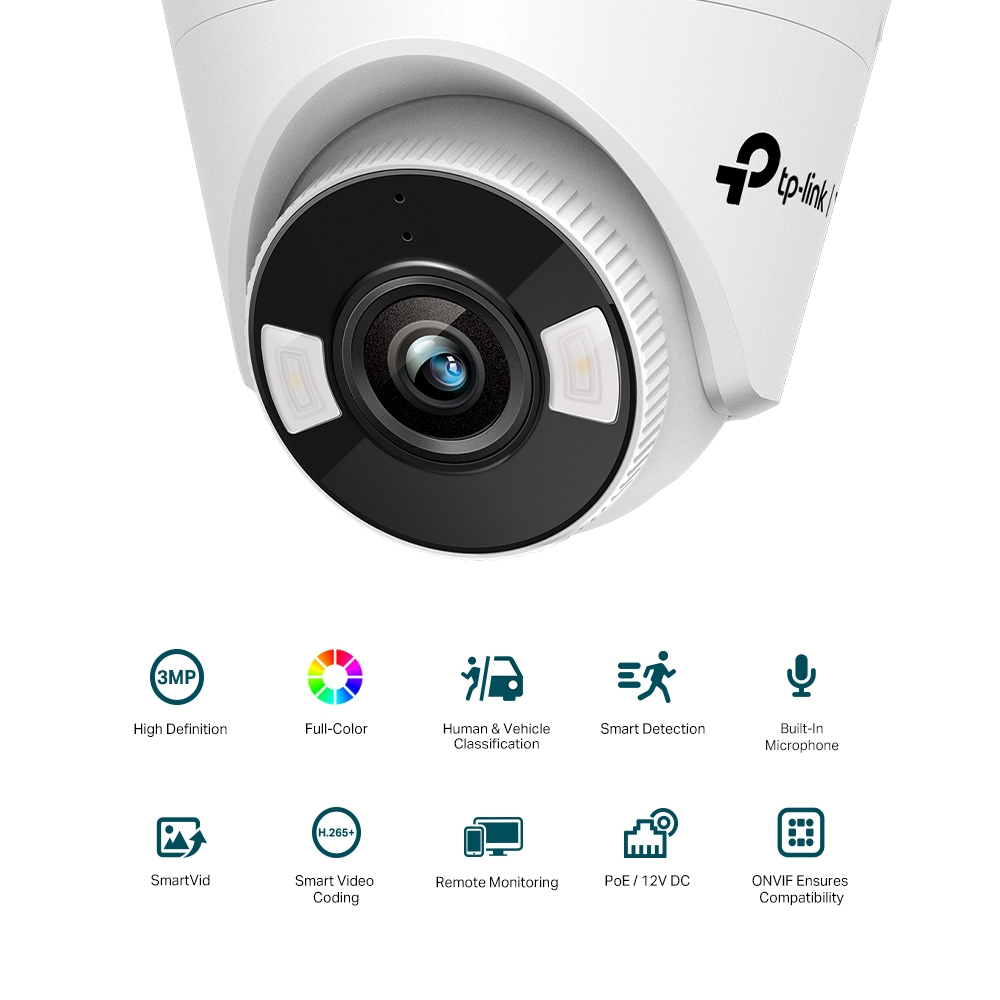

VIGI C430
Model VIGI C430Part no. VIGI C430(4MM)EAN 4895252501704
59 specifications
- ConnectivityWired
- TypeIP security camera
- ColourBlack, White
- Form factorDome
- Minimum illumination0.005 lx
- Sensor typeCMOS
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Colour
- Black, White
- Form factor
- Dome
- Minimum illumination
- 0.005 lx
- Sensor type
- CMOS
- Brand
- TP-Link
- Category
- Security Camera
- Model
- VIGI C430
- Part numbers
- VIGI C430(4MM), VIGI C430 2.8MM
- EAN / UPC
- 4895252501704, 4897098689929
- Also known as
- TP-Link VIGI C430 Dome IP security camera Indoor & outdoor 2304 x 1296 pixels Ceiling
Specifications
59 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |

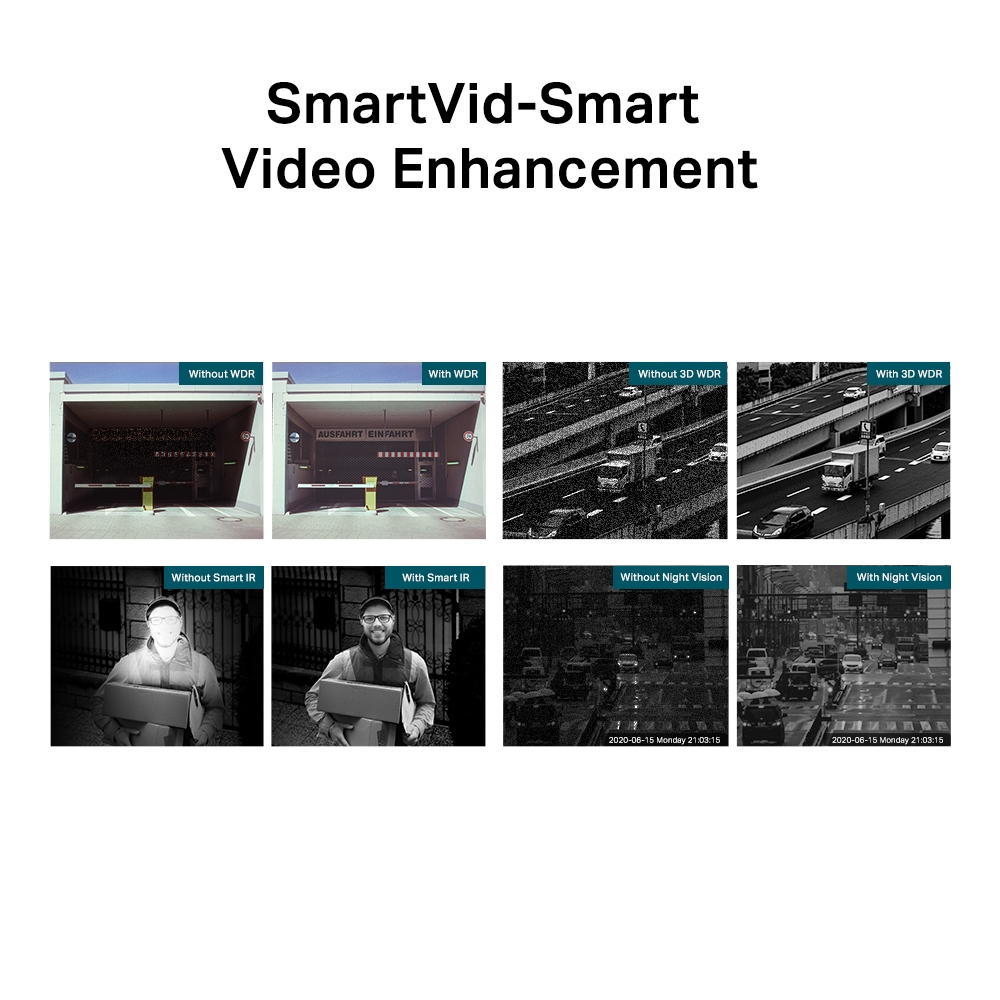

| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE/BSMI/VCCI/ONVIF |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Black, White |
| Housing material | Plastic |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.005 lx |
| Lens viewing angle, horizontal | 89.1° |
| Lens viewing angle, vertical | 45.1° |
| Lens viewing angle, diagonal | 106.9° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
Panoramic camera
| Specification | Value |
|---|---|
| Digital Wide Dynamic Range (DWDR) (panoramic camera) | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Lens diameter | 4 mm |
| Maximum aperture number | 1.6 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2304 x 1296 pixels |
| Total megapixels | 3 MP |

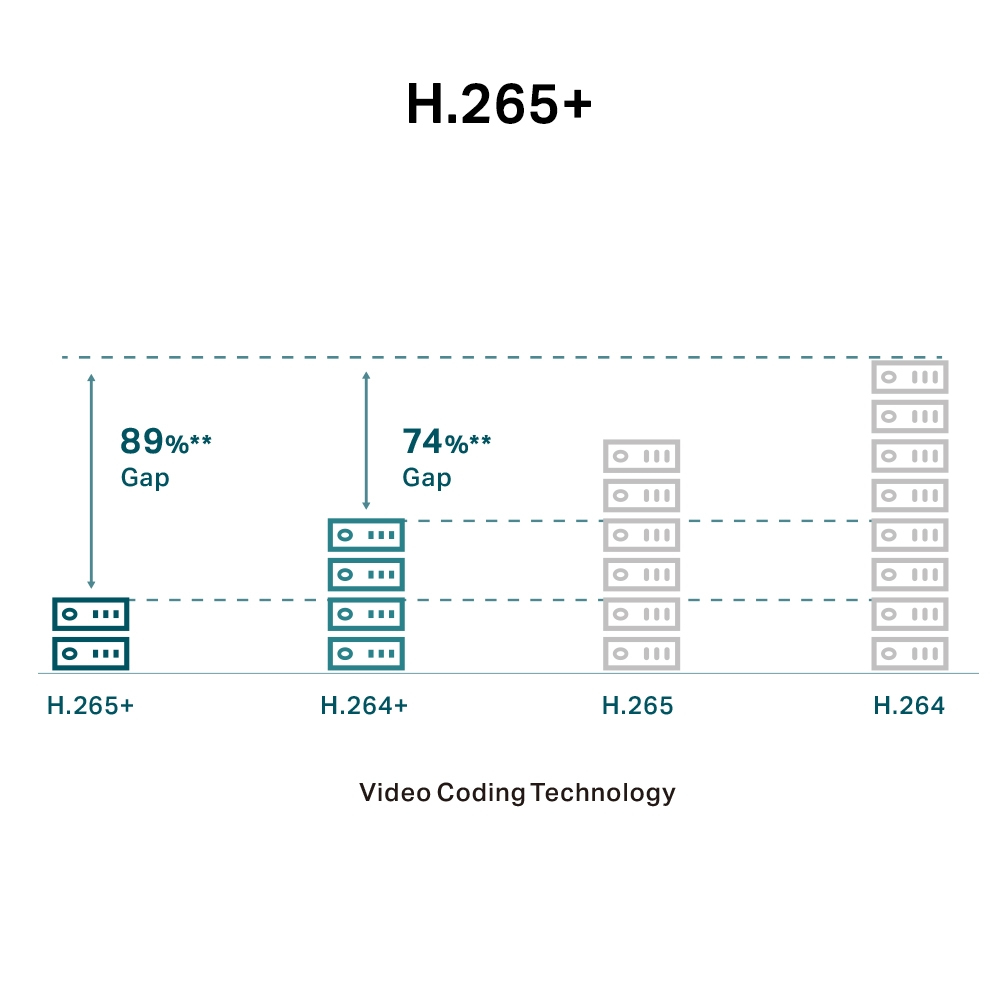

| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 64 Kbps to 4 Mbps |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Privacy masking | Yes |
| Smart IR | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Security
| Specification | Value |
|---|---|
| Password protection | Yes |
| Digest authentication | Yes |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
| Password reset via email | Yes |
Management features
| Specification | Value |
|---|---|
| Web browser | Yes |
| Behavior analysis | Intrusion detection, Line crossing detection |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 123 mm |
| Depth | 83 mm |
| Height | 123 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Mounting kit | Yes |
