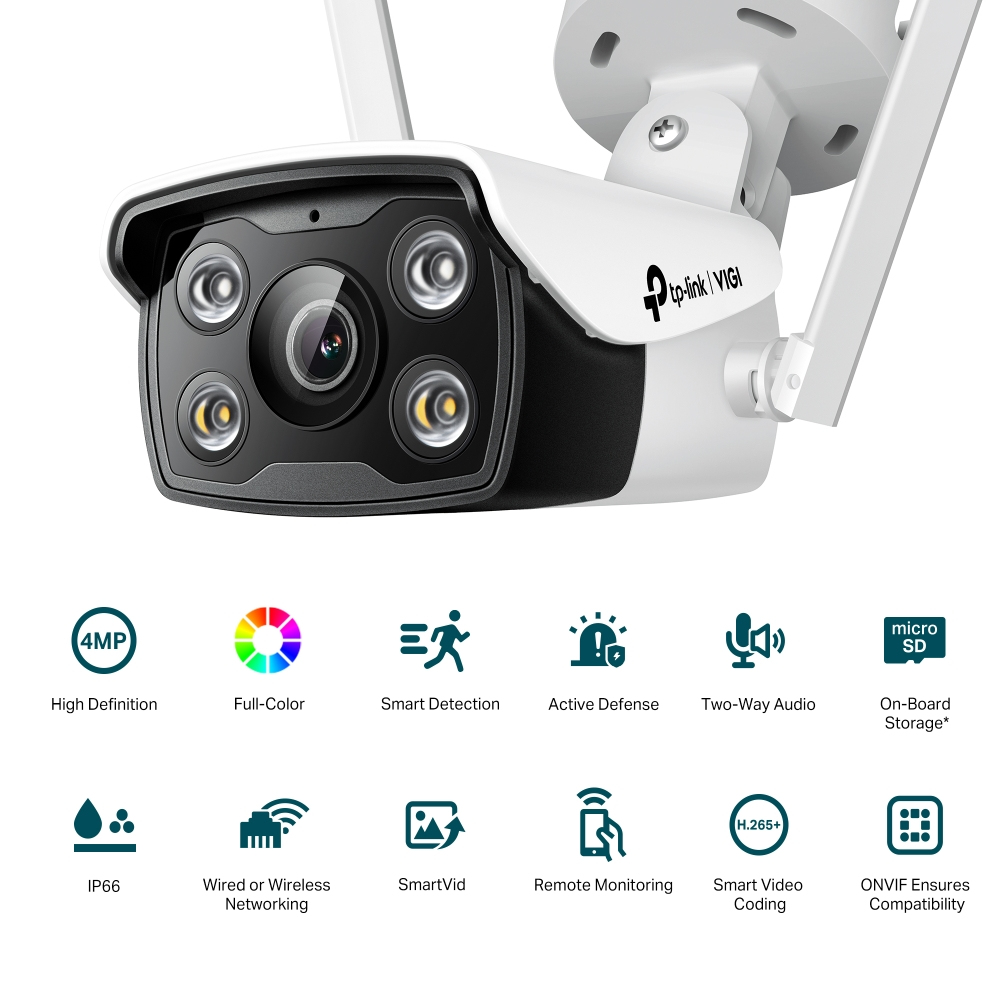

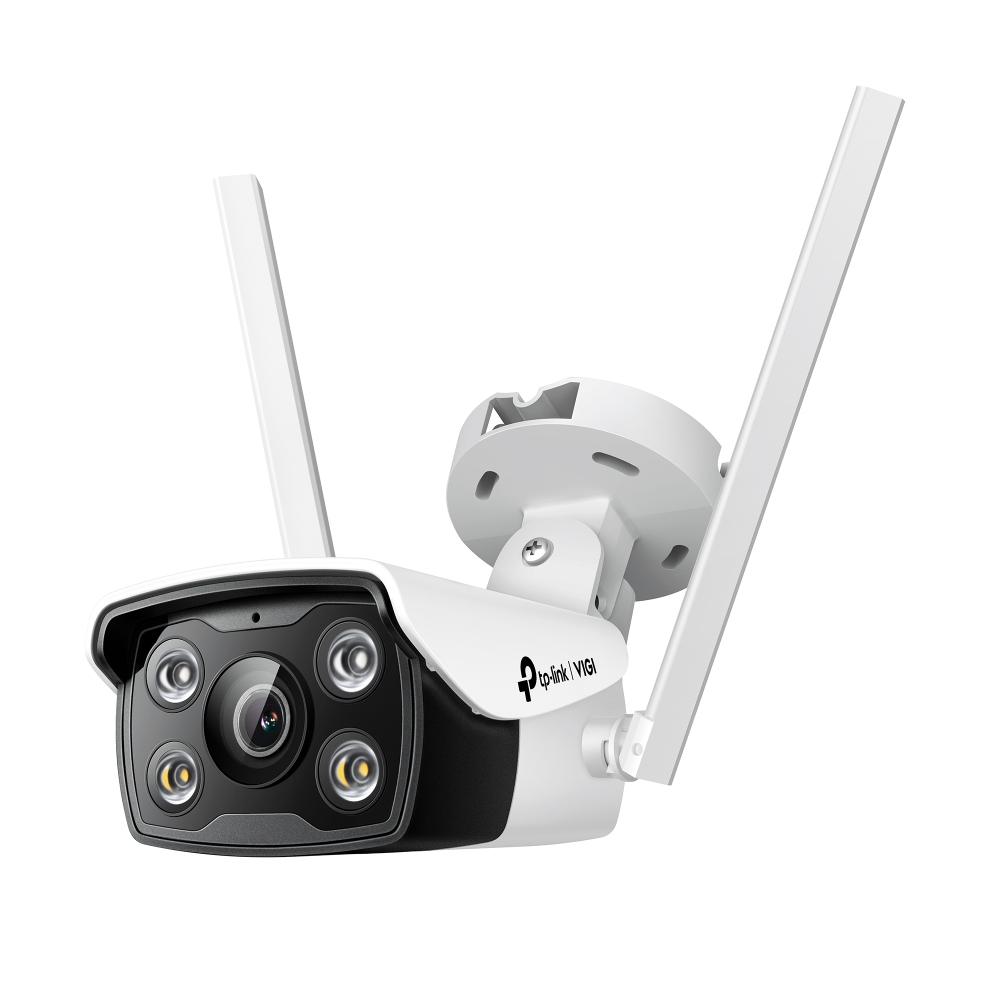

VIGI C340-W
Model VIGI C340-WPart no. VIGI C340-W(4MM)EAN 4897098681947
56 specifications
- ConnectivityWired & Wireless
- TypeIP security camera
- Weight195 g
- ColourWhite
- Form factorBox
- Minimum illumination0 lx
Overview
- Connectivity
- Wired & Wireless
- Type
- IP security camera
- Weight
- 195 g
- Colour
- White
- Form factor
- Box
- Minimum illumination
- 0 lx
- Brand
- TP-Link
- Category
- Security Camera
- Model
- VIGI C340-W
- Part numbers
- VIGI C340-W(4MM), C340-W
- EAN / UPC
- 4897098681947, 4897098683675
- Also known as
- TP-Link VIGI 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera
Specifications
56 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired & Wireless |
| Certification | CE, RCM, BSMI, VCCI, RoHS, NTRA, KC |
Design
| Specification | Value |
|---|---|
| Form factor | Box |
| Mounting type | Ceiling/wall |
| Product colour | White |
| LED indicators | Yes |
| Housing material | Plastic |
| International Protection (IP) code | IP66 |
| Weatherproof | Yes |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 79° |
| Lens viewing angle, vertical | 43° |
| Lens viewing angle, diagonal | 93° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
Panoramic camera
| Specification | Value |
|---|---|
| Digital Wide Dynamic Range (DWDR) (panoramic camera) | Yes |
Lens system
| Specification | Value |
|---|---|
| Fixed focus | Yes |
| Maximum aperture number | 1.6 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Supported video modes | 1080p, 1440p |
| Video recording | Yes |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Mirror |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi data rate (max) | 150 Mbit/s |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70.6 mm |
| Depth | 173.4 mm |
| Height | 80 mm |
| Weight | 195 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 152 mm |
| Package depth | 258 mm |
| Package height | 111 mm |
| Package weight | 600 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Manual | Yes |
