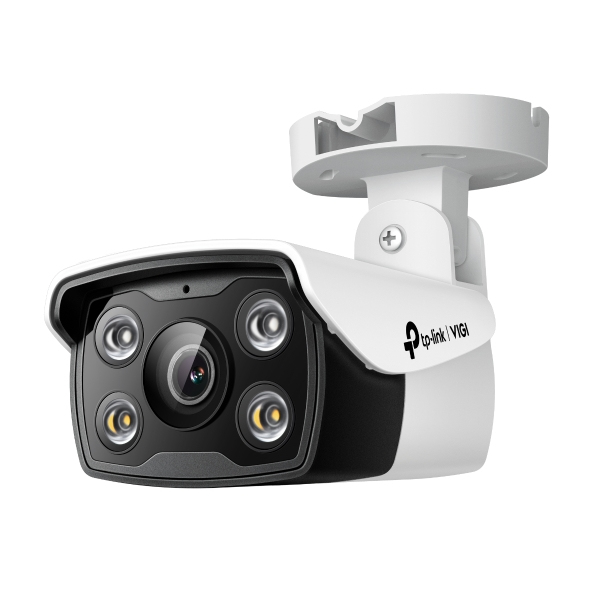

VIGI C340
Model VIGI C340Part no. VIGI C340 2.8MMEAN 4897098688618
64 specifications
- ConnectivityWired
- TypeIP security camera
- Weight195 g
- ColourWhite
- Form factorBullet
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 195 g
- Colour
- White
- Form factor
- Bullet
- Minimum illumination
- 0 lx
- Brand
- TP-Link
- Category
- Security Camera
- Model
- VIGI C340
- Part numbers
- VIGI C340 2.8MM, VIGI C340 (4MM), C340, VIGI C340(4MM), VIGI C340 6MM
- EAN / UPC
- 4897098688618, 840030708626, 4897098688625, 4897098688663 +1 more
- Also known as
- TP-Link VIGI C340 Bullet IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall
Specifications
64 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Certification | CE, RCM, BSMI, VCCI, RoHS, NTRA, KC |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 79° |
| Lens viewing angle, vertical | 43° |
| Lens viewing angle, diagonal | 93° |
| White balance | Auto |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 4 mm |
| Maximum aperture number | 1.6 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Live view | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Password protection | Yes |
| Mirror | Yes |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoC |
| Power consumption (max) | 5.5 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 700 mm |
| Depth | 174 mm |
| Height | 780 mm |
| Weight | 195 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Screws included | Yes |
| Manual | Yes |
| Waterproof connector | Yes |
| Packaging content | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories (Screws, Drywall Anchors, Hex Key) |
