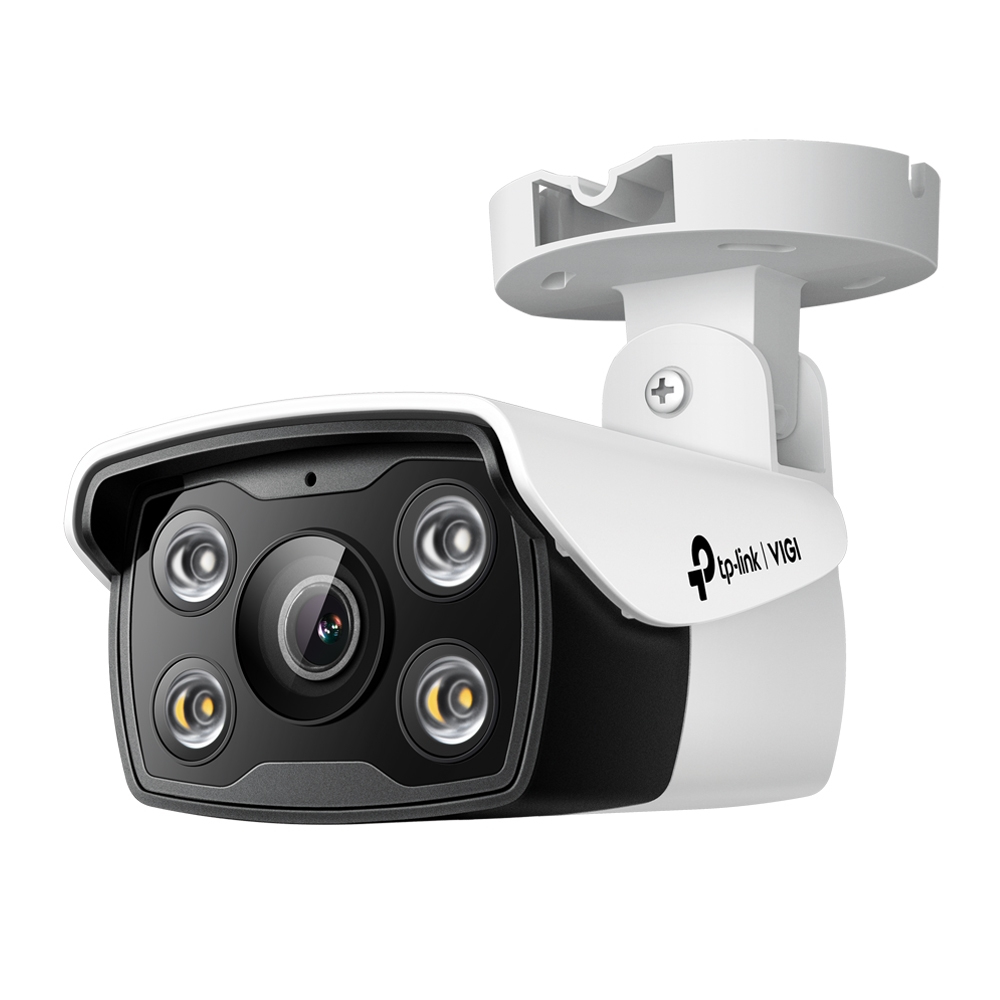

VIGI C330(6MM)
Model VIGI C330(6MM)EAN 4895252501797
58 specifications
- ConnectivityWired
- TypeIP security camera
- ColourWhite
- Form factorBullet
- Minimum illumination0 lx
- Sensor typeCMOS
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Colour
- White
- Form factor
- Bullet
- Minimum illumination
- 0 lx
- Sensor type
- CMOS
- Brand
- TP-Link
- Category
- Security Camera
- Model
- VIGI C330(6MM)
- Part number
- VIGI C330(6MM)
- EAN / UPC
- 4895252501797
- Also known as
- TP-Link VIGI C330(6MM) security camera Bullet IP security camera Outdoor 2304 x 1296 pixels Ceiling/Wall/Pole
Specifications
58 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Certification | CE/BSMI/VCCI/ONVIF |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 55.1° |
| Lens viewing angle, vertical | 30.2° |
| Lens viewing angle, diagonal | 64° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Lens diameter | 6 mm |
| Maximum aperture number | 1.6 |
| Fixed focal length | 4 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2304 x 1296 pixels |
| Total megapixels | 3 MP |
| Video compression formats | H.265+, H.264, H.264+, H.265 |
| Supported graphics resolutions | 704 x 576, 1280 x 720 (HD 720), 320 x 240, 2048 x 1280, 2304 x 1296, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Sharpness, Saturation |
| Privacy masking | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Security
| Specification | Value |
|---|---|
| Password protection | Yes |
| HTTPS encryption | Yes |
| Human and vehicle targets classification | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
| Password reset via email | Yes |
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (max) | 5.4 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 78 mm |
| Depth | 70 mm |
| Height | 174 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
