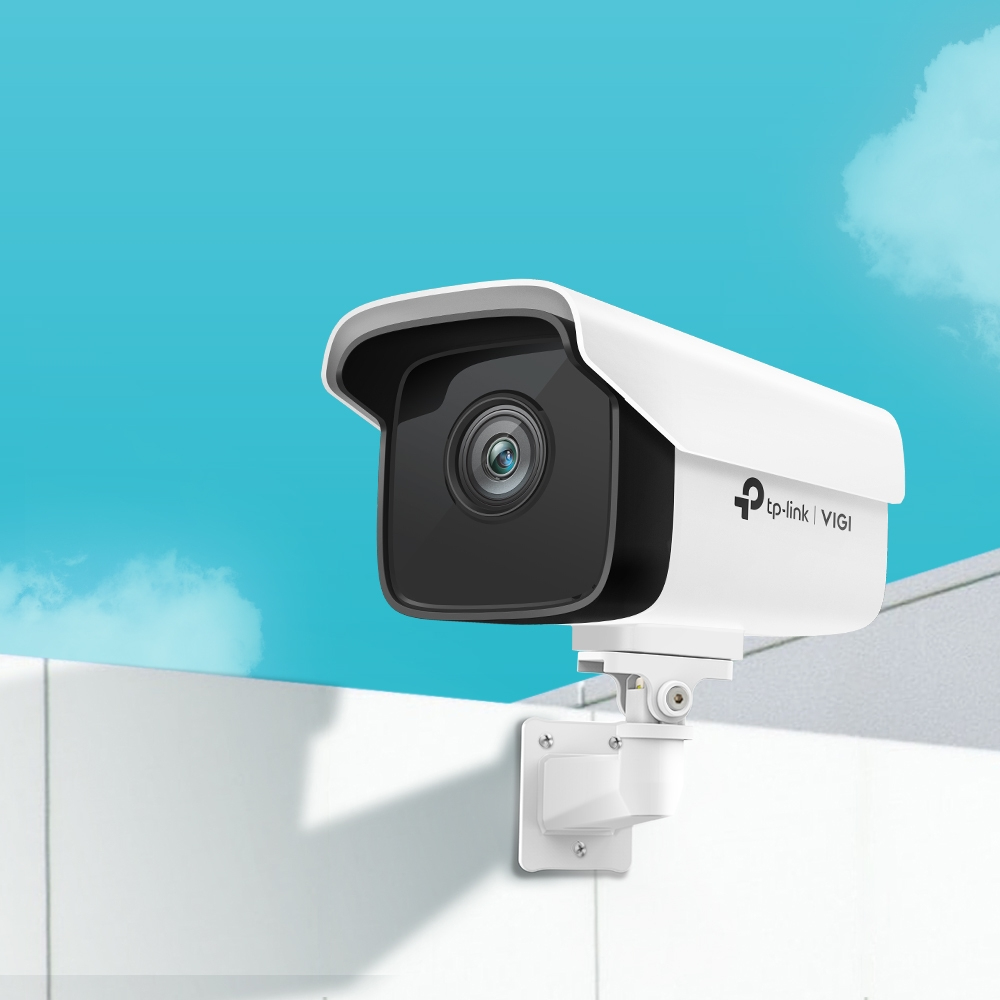

VIGI C300P-6
Model VIGI C300P-6EAN 6935364010379
61 specifications
- ConnectivityWired
- TypeIP security camera
- Weight283.5 g
- ColourWhite
- Form factorBullet
- Lens viewing angle, horizontal92°
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 283.5 g
- Colour
- White
- Form factor
- Bullet
- Lens viewing angle, horizontal
- 92°
- Brand
- TP-Link
- Category
- Security Camera
- Model
- VIGI C300P-6
- Part number
- VIGI C300P-6
- EAN / UPC
- 6935364010379
- Also known as
- TP-Link VIGI C300P-6 security camera Bullet IP security camera Outdoor Ceiling/wall
Specifications
61 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Maximum operating distance | 30 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Lens viewing angle, horizontal | 92° |
| Lens viewing angle, vertical | 48° |
| Lens viewing angle, diagonal | 114° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Lens system
| Specification | Value |
|---|---|
| Lens diameter (wide) | 4 mm |
| Lens diameter (tele) | 6 mm |
| Fixed focal length | 5.5 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Video compression formats | H.264, H.264+ |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 64 Kbps - 6 Mbps |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Image quality adjustment | Brightness, Contrast, DNR, Mirror, Saturation, Sharpness |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Number of simultaneous live view channels | 15 channels |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Password protection | Yes |
| Digest authentication | Yes |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
| Password reset via email | Yes |
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 164.9 mm |
| Depth | 87.4 mm |
| Height | 83.4 mm |
| Weight | 283.5 g |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Sustainability compliance | Yes |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Cables included | Coaxial |
