VIGI C300HP
Model VIGI C300HPPart no. VIGI C300HP-4EAN 6935364072261
48 specifications
- ConnectivityWired
- TypeIP security camera
- Weight283.5 g
- ColourWhite
- Form factorBullet
- Minimum illumination0.1 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 283.5 g
- Colour
- White
- Form factor
- Bullet
- Minimum illumination
- 0.1 lx
- Brand
- TP-Link
- Category
- Security Camera
- Model
- VIGI C300HP
- Part numbers
- VIGI C300HP-4, VIGI C300HP-6
- EAN / UPC
- 6935364072261, 840030701429, 6935364072278, 6935364072285 +2 more
- Also known as
- TP-Link VIGI 3MP Outdoor Bullet Network Camera
Specifications
48 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE, FCC, RCM, BSMI, VCCI, IP67, RoHS |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.1 lx |
| Lens viewing angle, horizontal | 54° |
| Lens viewing angle, vertical | 31° |
| Lens viewing angle, diagonal | 62° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2304 x 1296 pixels |
| Total megapixels | 3 MP |

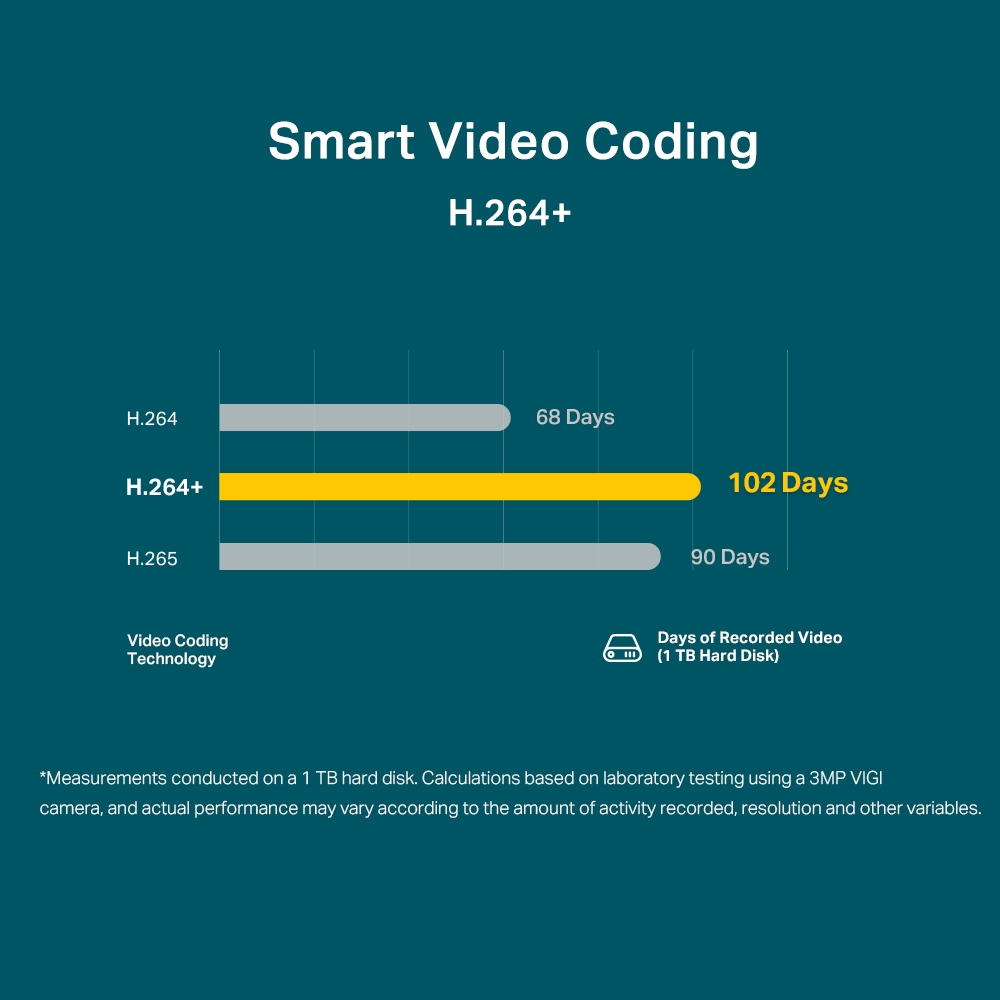

| Video compression formats | H.264, H.265 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Bit rate | 64 Kbps - 6 Mbps |
| Privacy masking | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Password protection | Yes |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
| Privacy protection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 87.4 mm |
| Depth | 83.4 mm |
| Height | 164.9 mm |
| Weight | 283.5 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85258900 |
