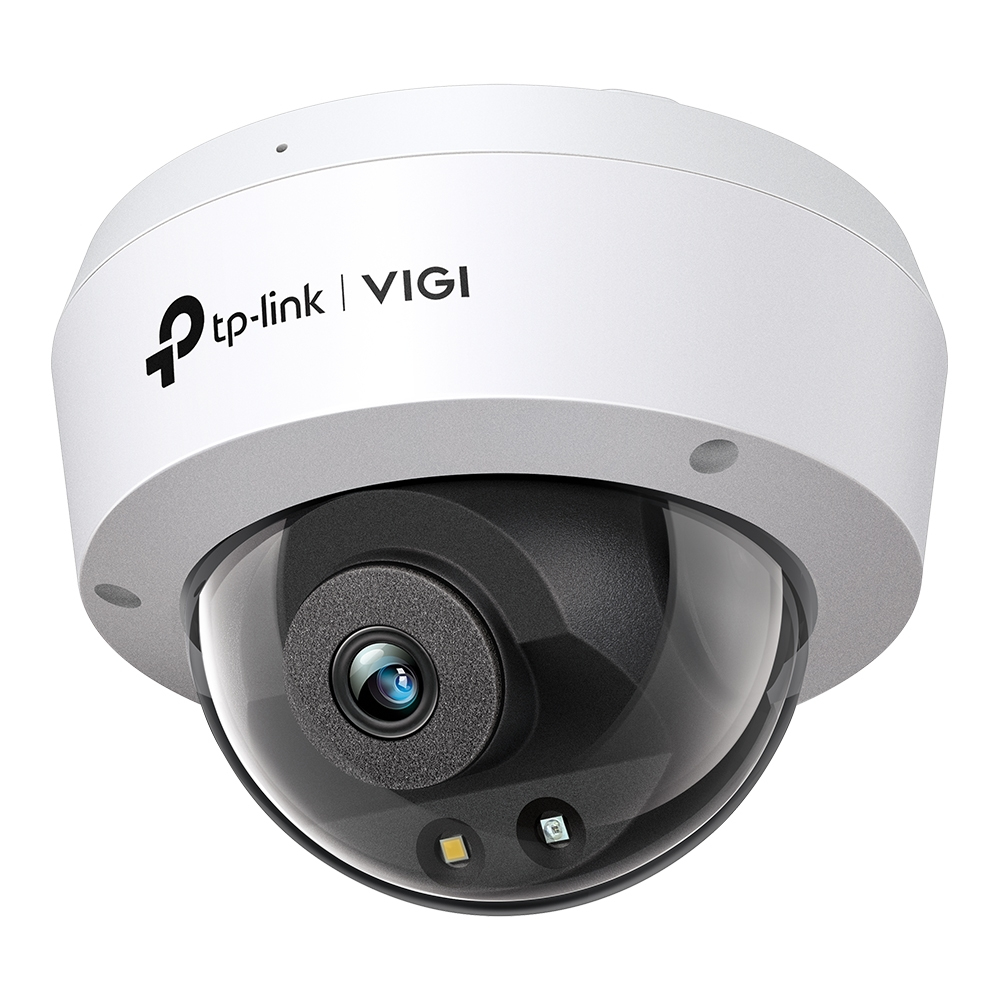

TP-Link VIGI C250
TP-Link

VIGI C250

Model VIGI C250Part no. VIGI C250(2.8MM)EAN 4895252503074

86 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight280 g
  • ColourWhite, Black
  • Form factorDome
  • Minimum illumination0.005 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
280 g
Colour
White, Black
Form factor
Dome
Minimum illumination
0.005 lx
Brand
TP-Link
Model
VIGI C250
Part numbers
VIGI C250(2.8MM), VIGI C250(4MM)
EAN / UPC
4895252503074, 4895252503050, 4895252503067, 4895252503081
Also known as
TP-Link VIGI 5MP Full-Color Dome Network Camera

Specifications

86 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Built-in lightYes
Dynamic range120 dB
CertificationCE, NTRA, VCCI, KC, BSMI, FCC, IC

Design

Form factorDome
Mounting typeCeiling
Product colourWhite, Black
Housing materialPlastic
International Protection (IP) codeIP67
IK codeIK10
WeatherproofYes

Camera

Minimum illumination0.005 lx
Field of view (FOV) angle107°
Lens viewing angle, horizontal90°
Lens viewing angle, vertical48°
Lens viewing angle, diagonal107°
Tilt angle range0 - 85°
Pan range0 - 360°
Camera shutter speed1/3 - 1/10000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Panoramic camera

Number of Privacy masking areas (panoramic camera)4

Lens system

Number of lenses1
Detect distance80 m
Observe distance33 m
Recognize distance16 m
Identify distance8 m
Maximum aperture number1.6
Fixed focal length4 mm

Night vision

Night visionYes
Night vision distance30 m
Number of illumination LEDs1
Infra-red wavelength850 nm

Video

Maximum resolution2880 x 1620 pixels
Total megapixels5 MP
Video formats supportedH.264, H.264+, H.265, H.265+
Supported graphics resolutions1280 x 720 (HD 720), 2048 x 1280, 2304 x 1296, 2688 x 1520, 1920 x 1080 (HD 1080), 2880 x 1620
Supported video modes1080p, 720p, 2560p, 2880p
Video recordingYes
Frame rate30 fps
Video streamingYes
Noise reductionYes
Back Light Compensation (BLC)Yes
Bit rate256 Kbps - 6 Mbps
Bit rate controlVariable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Sample rate8 kHz
Signal-to-Noise Ratio (SNR)52 dB
Built-in microphoneYes
Voice codecsG.711

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Storage

Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Management features

Reset buttonYes

Power

Power source typeDC
Power consumption (typical)1.5 W
Power consumption (max)7 W

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Height85.7 mm
Diameter11.5 cm
Weight280 g

Packaging data

Package width153 mm
Package depth193 mm
Package height120 mm
Package weight470 g
Package typeBox

Packaging content

Number of cameras1
