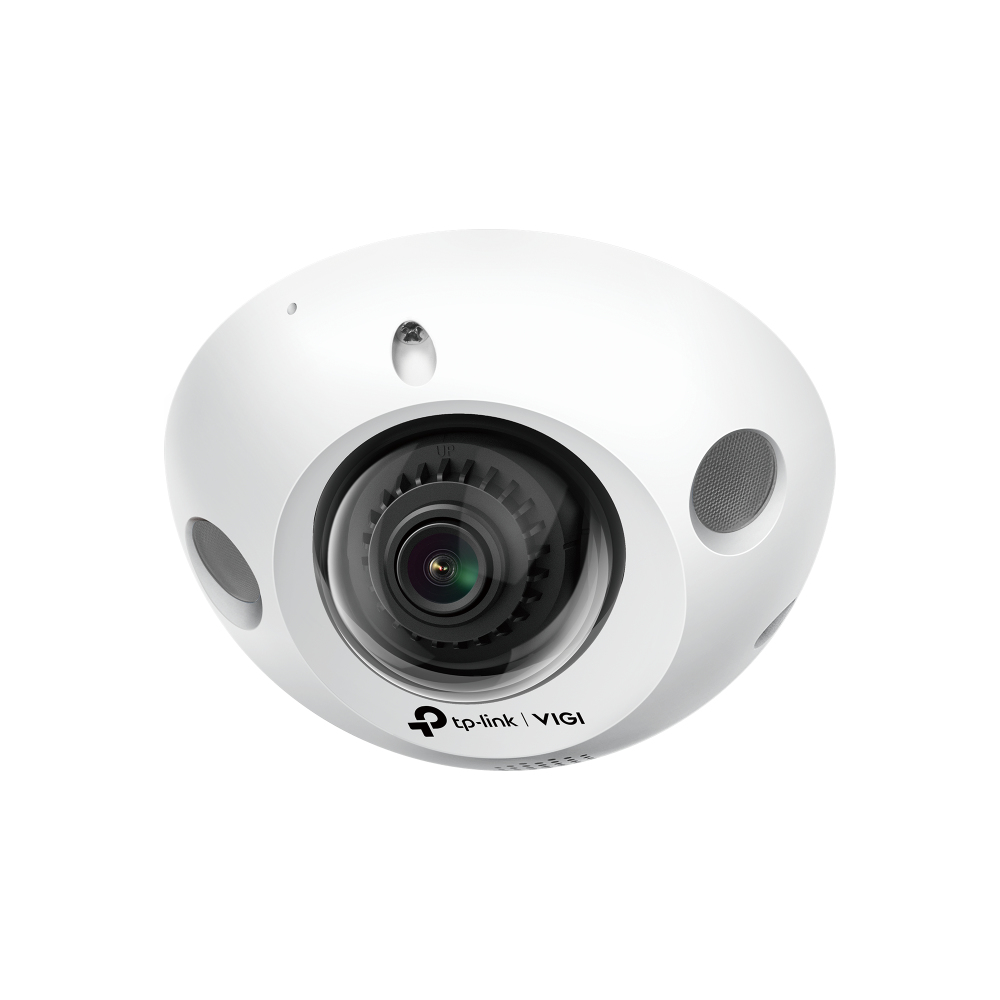

VIGI C230I MINI(2.8MM)
Model VIGI C230I MINI(2.8MM)EAN 4897098688922
53 specifications
- ConnectivityWired
- TypeIP security camera
- ColourWhite
- Form factorDome
- Lens viewing angle, horizontal106.9°
- Sensor typeCMOS
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Colour
- White
- Form factor
- Dome
- Lens viewing angle, horizontal
- 106.9°
- Sensor type
- CMOS
- Brand
- TP-Link
- Category
- Security Camera
- Model
- VIGI C230I MINI(2.8MM)
- Part number
- VIGI C230I MINI(2.8MM)
- EAN / UPC
- 4897098688922
- Also known as
- TP-Link VIGI C230I MINI(2.8MM) security camera Dome IP security camera Indoor & outdoor 2304 x 1296 pixels Ceiling
Specifications
53 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Certification | CE/VCCI/BSMI/KC/ONVIF |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Plastic |
| IK code | IK08 |
Camera
| Specification | Value |
|---|---|
| Lens viewing angle, horizontal | 106.9° |
| Lens viewing angle, vertical | 56.9° |
| Lens viewing angle, diagonal | 127.9° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system
| Specification | Value |
|---|---|
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2304 x 1296 pixels |
| Total megapixels | 3 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296 |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Password protection | Yes |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (max) | 7.5 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 114 mm |
| Depth | 58 mm |
| Height | 114 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
