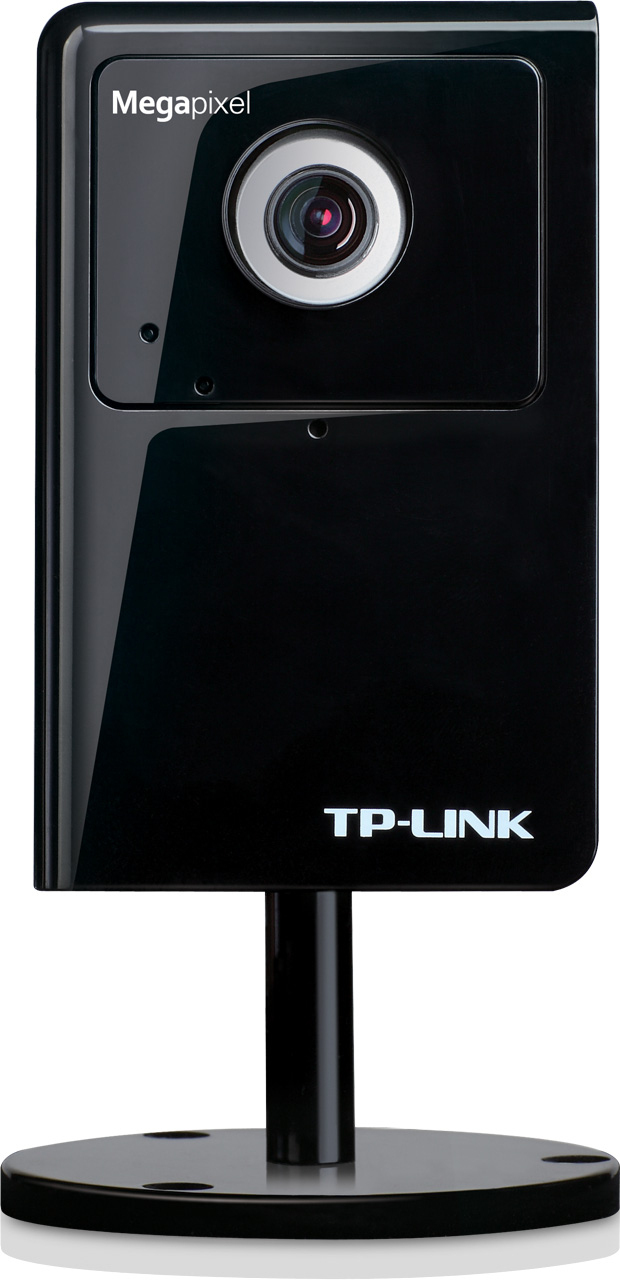

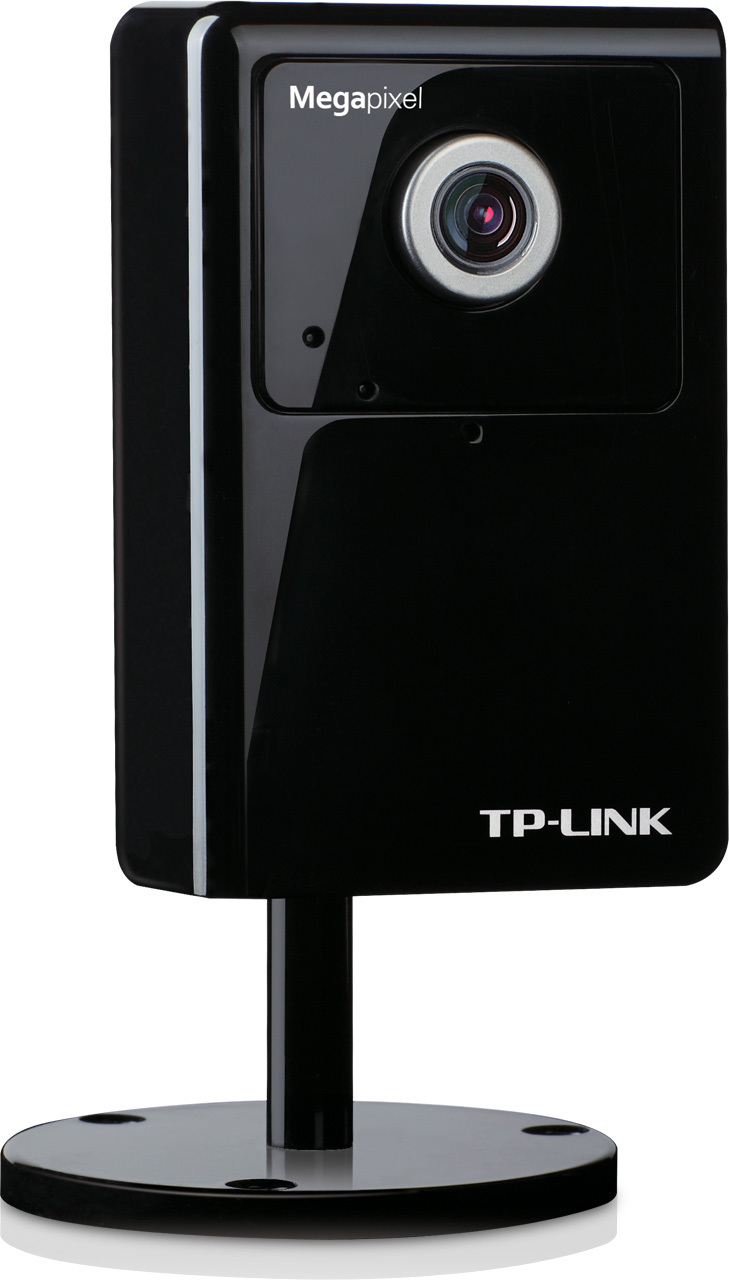

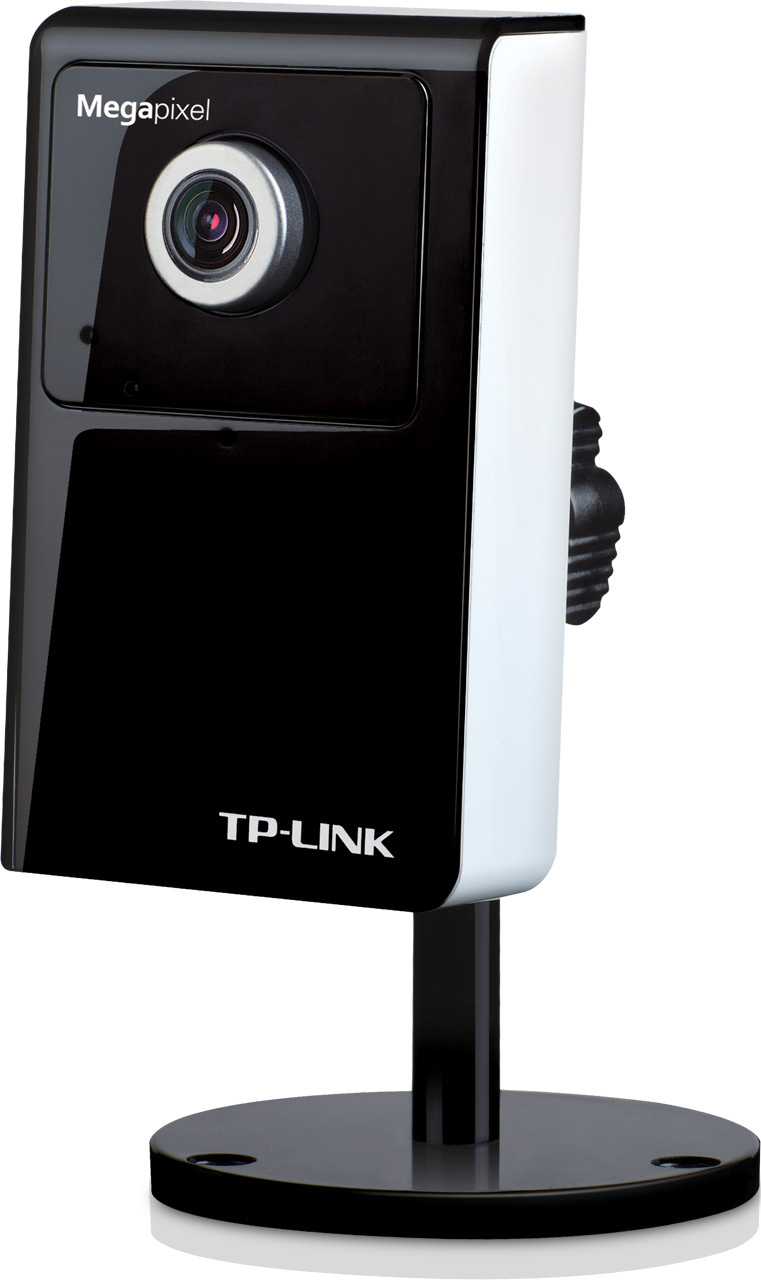

TP-Link TL-SC3430 security camera Indoor

TP-Link TL-SC3430 security camera Indoor

1280 x 1024 pixels

Model TL-SC3430EAN 845973054052

53 specifications
  • ConnectivityWired
  • ColourBlack, White
  • Placement supportedIndoor
  • Minimum illumination0.5 lx
  • Sensor typeCMOS
  • Digital zoom10x
See all specifications

Overview

Connectivity
Wired
Colour
Black, White
Placement supported
Indoor
Minimum illumination
0.5 lx
Sensor type
CMOS
Digital zoom
10x
Brand
TP-Link
Model
TL-SC3430
Part number
TL-SC3430
EAN / UPC
845973054052, 6935364054052
Also known as
TP-Link TL-SC3430 security camera Indoor 1280 x 1024 pixels

Specifications

53 specifications in 19 groups

Performance

Placement supportedIndoor
Connectivity technologyWired
PTZ controlNo
Plug and PlayYes
CertificationCE, FCC

Design

Product colourBlack, White

Camera

Minimum illumination0.5 lx
Lens viewing angle, horizontal46°
Lens viewing angle, vertical35°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 4 mm (1 / 4")
Progressive scanYes

Lens system

Digital zoom10x

Video

Maximum resolution1280 x 1024 pixels
Total megapixels1.3 MP
Video formats supportedH.264, M-JPEG, MPEG4
Supported graphics resolutions1280 x 1024 (SXGA), 1280 x 720 (HD 720), 640 x 480 (VGA)
Frame rate30 fps

Audio

Audio system2-way
Audio formats supportedAMR
Built-in microphoneYes
Audio detectionYes

Network

Ethernet LANYes
Wi-FiNo
Supported network protocolsBonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, Samba, NFS, DNS, NTP, UPnP, RTSP, RTP, RTCP, HTTP, HTTPS, TCP, UDP, 3GPP/ISMA RTSP
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo

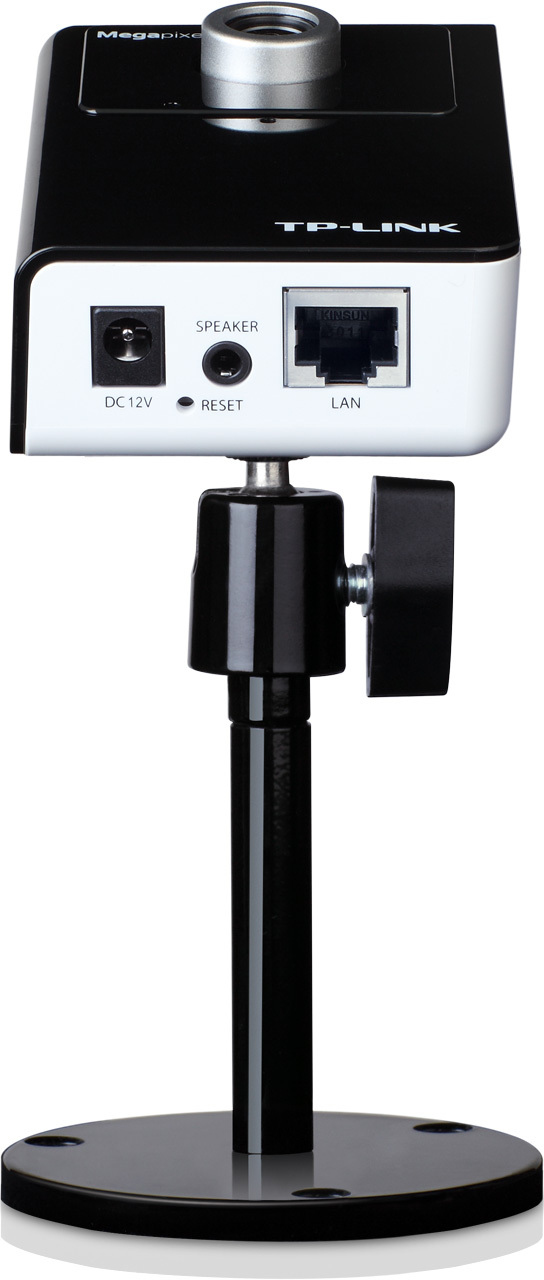

Ports & interfaces

Headphone outputs1
DC-in jackYes
InterfaceRJ-45

Security

Password protection typeUser
HTTPS encryptionYes
IP address filteringYes
Video motion detectionYes

Management features

Reset buttonYes

Power

Power consumption (typical)12 W
DC output voltage+12V

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

System requirements

Minimum RAM1024 MB
Minimum graphics card memory256 MB
Minimum processorCore Duo 2.8GHz

Weight & dimensions

Width58 mm
Depth31 mm
Height96 mm

Sustainability

Compliance certificatesRoHS

Packaging content

Cables includedLAN (RJ-45)
Mounting kitYes
User guideYes

Other features

Compatible operating systemsWindows 98/ME/2000/2003/XP/Vista/7, Mac OS, Linux
F-number (relative aperture)1.8
