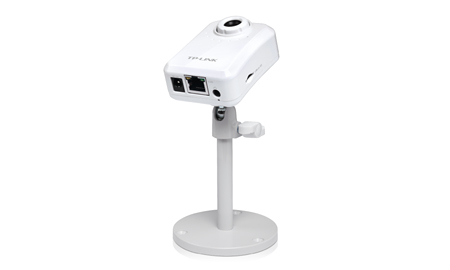

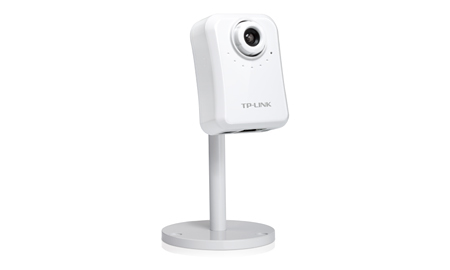

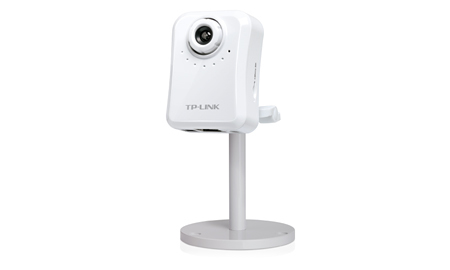

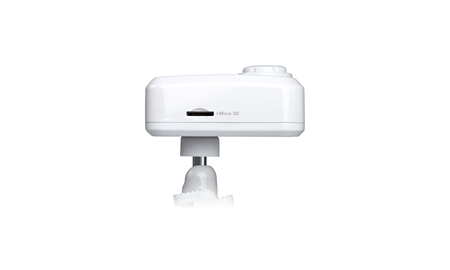

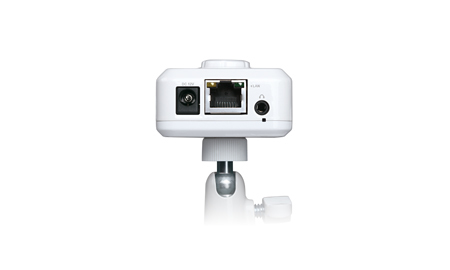

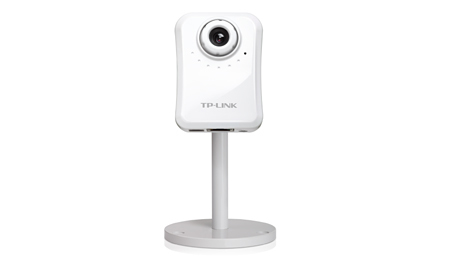

TP-Link TL-SC3230 security camera Box Indoor

TP-Link TL-SC3230 security camera Box Indoor

1280 x 1024 pixels Ceiling/wall

Model TL-SC3230EAN 6935364054120

54 specifications
  • ConnectivityWired
  • TypeBox
  • ColourWhite
  • Placement supportedIndoor
  • Minimum illumination0.5 lx
  • Sensor typeCMOS
See all specifications

Overview

Connectivity
Wired
Type
Box
Colour
White
Placement supported
Indoor
Minimum illumination
0.5 lx
Sensor type
CMOS
Brand
TP-Link
Model
TL-SC3230
Part number
TL-SC3230
EAN / UPC
6935364054120, 785240931306, 845973054120, 6935364054144 +1 more
Also known as
TP-Link TL-SC3230 security camera Box Indoor 1280 x 1024 pixels Ceiling/wall

Specifications

54 specifications in 17 groups

Performance

Placement supportedIndoor
Connectivity technologyWired
PTZ controlYes
Alarm input/outputYes
CertificationCE, FCC, RoHS

Design

Form factorBox
Mounting typeCeiling/wall
Product colourWhite

Camera

Minimum illumination0.5 lx
Lens viewing angle, horizontal46°
Lens viewing angle, vertical35°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 4 mm (1 / 4")
Progressive scanYes

Lens system

Digital zoom10x
Fixed focal length4.3 mm

Video

Maximum resolution1280 x 1024 pixels
Total megapixels1.3 MP
Video formats supportedM-JPEG, MPEG4
Supported graphics resolutions320 x 240, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 640 x 480 (VGA)
Frame rate30 fps

Audio

Audio system2-way
Audio formats supportedAMR
Built-in microphoneYes

Network

Ethernet LANYes
Supported network protocolsTCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, Samba, NFS, DNS, NTP, UPnP, RTSP, RTP, RTCP, HTTP, HTTPS, TCP, UDP, 3GPP/ISMA RTSP
Cabling technology10/100Base-T(X)

Storage

Compatible memory cardsMicroSD (TransFlash), SDHC

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes
DC-in jackYes
InterfaceRJ-45

Security

Password protection typeUser
HTTPS encryptionYes
IP address filteringYes
Security algorithmsHTTPS
Video motion detectionYes

Power

Power consumption (typical)12 W
DC output voltage+12V

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width74.5 mm
Depth54.3 mm
Height34.7 mm

Sustainability

Compliance certificatesRoHS

Packaging content

Cables includedLAN (RJ-45)
Mounting kitYes
ManualYes
Quick start guideYes
User guideYes

Other features

Compatible operating systemsWindows 98/ME/2000/2003/XP/Vista/7, Mac OS, Linux
F-number (relative aperture)1.8
