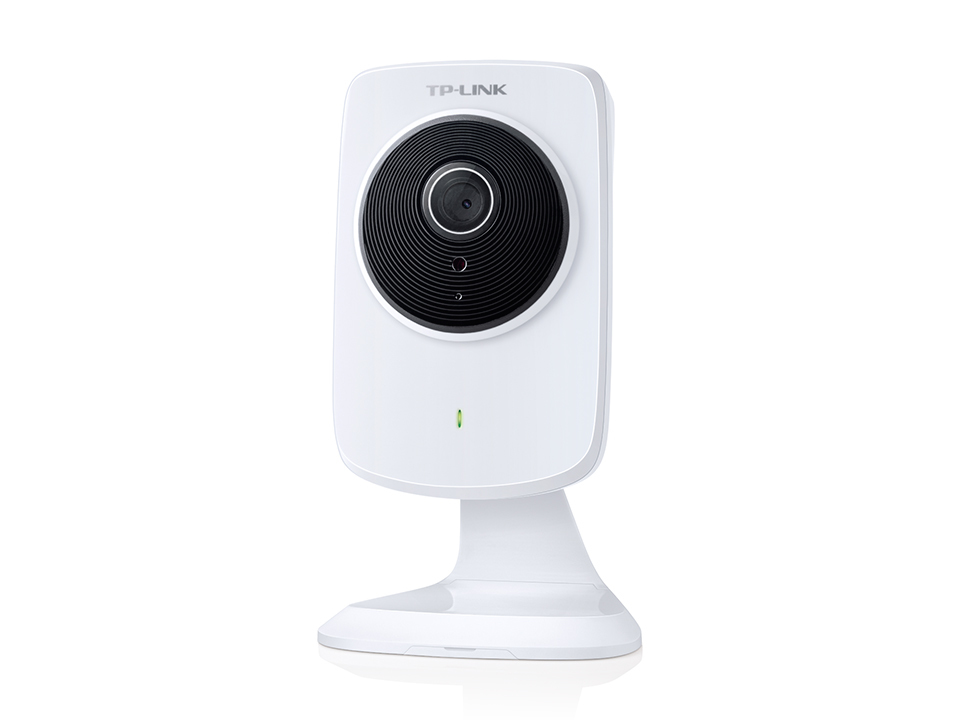

TP-Link TL-NC220 security camera Cube IP security camera Indoor

TP-Link TL-NC220 security camera Cube IP security camera Indoor

640 x 480 pixels Desk/Wall

Model TL-NC220EAN 845973092061

59 specifications
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • ColourWhite
  • Form factorCube
  • Minimum illumination0.5 lx
  • Sensor typeCMOS
See all specifications

Overview

Connectivity
Wired & Wireless
Type
IP security camera
Colour
White
Form factor
Cube
Minimum illumination
0.5 lx
Sensor type
CMOS
Brand
TP-Link
Model
TL-NC220
Part number
TL-NC220
EAN / UPC
845973092061, 7109152512805, 7426044714711
Also known as
TP-Link TL-NC220 security camera Cube IP security camera Indoor 640 x 480 pixels Desk/Wall

Specifications

59 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired & Wireless
Antenna typeInternal
CertificationCE, FCC

Design

Form factorCube
Mounting typeDesk/Wall
Product colourWhite
LED indicatorsYes

Camera

Minimum illumination0.5 lx
Field of view (FOV) angle64°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 4 mm (1 / 4")

Lens system

Zoom capabilityYes
Digital zoom4x
Focal length range2.8 - 3.85 mm

Night vision

Night visionYes

Video

Maximum resolution640 x 480 pixels
Total megapixels0.3 MP
Video compression formatsH.264
Supported graphics resolutions320 x 240, 640 x 480 (VGA)
Frame rate30 fps
Full HDNo

Audio

Audio system1-way
Audio formats supportedAAC
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiYes
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsBonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP,DNS, UPnP, HTTP and UDP
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)300 Mbit/s
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes
InterfaceRJ-45

Security

Security algorithmsWEP, WPA, WPA-PSK, WPA2, WPA2-PSK

Management features

Reset buttonYes
WPS push buttonYes

Power

Power source typeDC
Power consumption (typical)5.4 W
DC output voltage9

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width76 mm
Depth69 mm
Height137 mm

Sustainability

Compliance certificatesRoHS

Packaging data

Package width79.5 mm
Package depth223 mm
Package height128 mm
Package typeBox

Packaging content

Number of cameras1
Cables includedLAN (RJ-45)
Quick installation guideYes
