TP-Link TC40GW security camera Turret IP security camera Outdoor
TP-Link

TC40GW security camera Turret IP security camera Outdoor

1920 x 1080 pixels Ceiling/Wall/Pole

Model TC40GWEAN 8885020628548

69 specifications
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • Weight430 g
  • ColourWhite
  • Form factorTurret
  • Lens viewing angle, horizontal105°
See all specifications

Overview

Connectivity
Wired & Wireless
Type
IP security camera
Weight
430 g
Colour
White
Form factor
Turret
Lens viewing angle, horizontal
105°
Brand
TP-Link
Model
TC40GW
Part number
TC40GW
EAN / UPC
8885020628548
Also known as
TP-Link TC40GW security camera Turret IP security camera Outdoor 1920 x 1080 pixels Ceiling/Wall/Pole

Specifications

69 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired & Wireless
Antenna typeExternal
Antennas quantity1

Design

Form factorTurret
Mounting typeCeiling/Wall/Pole
Product colourWhite

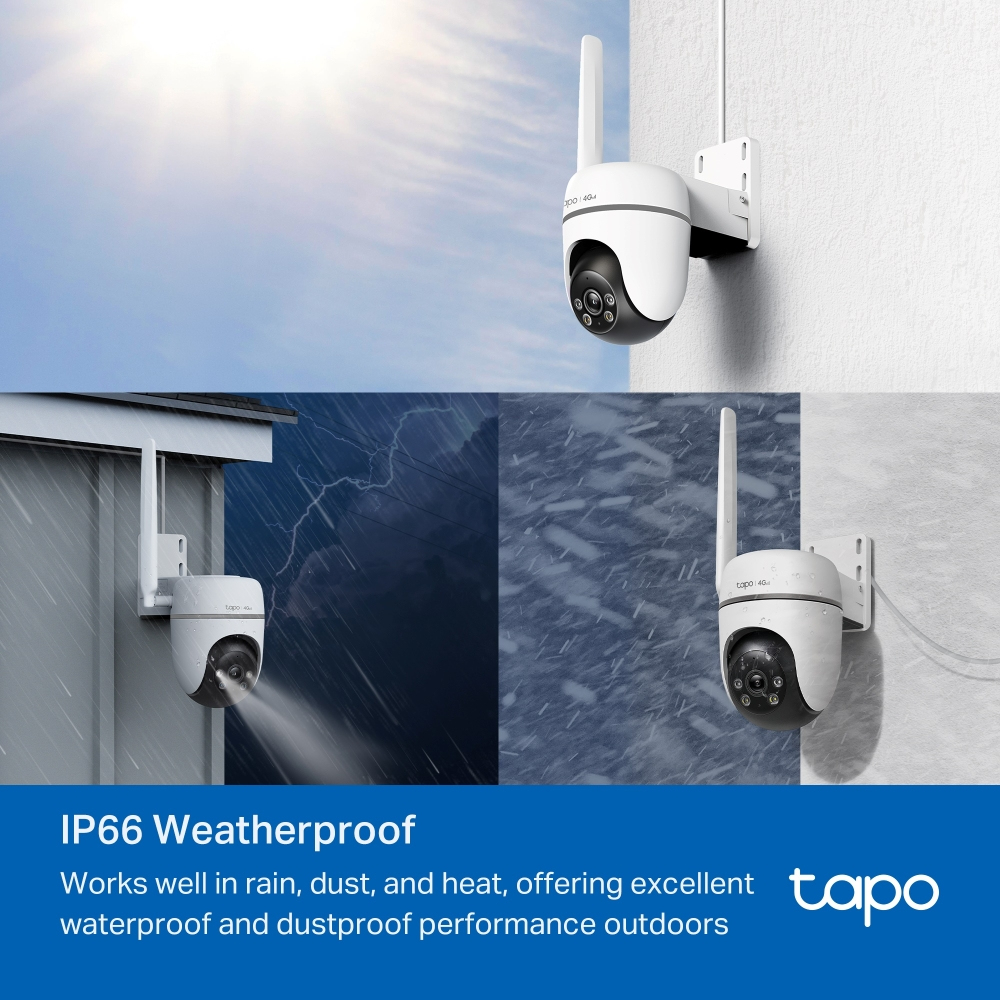

International Protection (IP) codeIP66

Camera

Lens viewing angle, horizontal105°
Lens viewing angle, vertical59°
Lens viewing angle, diagonal122°
Tilt angle range60 - 130°
Pan range340 - 360°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.9 mm (1 / 2.9")

Lens system

Maximum aperture number1.65
Fixed focal length3.17 mm

Night vision

Night visionYes
Night vision distance29.9 m
LED typeIR
Infra-red wavelength850 nm

Video

Maximum resolution1920 x 1080 pixels
Video formats supportedH.264
Frame rate30 fps

Audio

Built-in speaker(s)Yes
Audio system2-way
Built-in microphoneYes

Network

Ethernet LANYes
Networking standardsIEEE 802.3af, IEEE 802.3at
Supported network protocolsProtocol TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP
Mobile network connectionYes
SIM card slotYes
SIM card typeNanoSIM
Mobile network generation4G
4G standardLTE-TDD & LTE-FDD

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Built-in sirenYes
Siren noise level99 dB
Alert notification typeSnapshot alert message
Human and vehicle targets classificationYes
Motion sensorYes

Management features

Cloud-managedYes
Reset buttonYes

Power

Power source typeDC, PoE
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (typical)2.8 W
Power consumption (max)9.5 W
DC output voltage12
DC output current1 A

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)0 - 90%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width106 mm
Depth140 mm
Height234 mm
Weight430 g
Cable length3 m

Sustainability

Compliance certificatesBSMI, CE, NCC, RCM, RoHS, VCCI

Packaging content

Number of cameras1
Mounting brackets includedYes
Anchors includedYes
Quick start guideYes
