TP-Link Tapo C545D
TP-Link

Tapo C545D

Model Tapo C545DPart no. TAPO C545DEAN 810142824231

87 specifications
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • Weight491 g
  • ColourWhite
  • Form factorSpherical
  • Lens viewing angle, horizontal57.3 - 137.6°
See all specifications

Overview

Connectivity
Wired & Wireless
Type
IP security camera
Weight
491 g
Colour
White
Form factor
Spherical
Lens viewing angle, horizontal
57.3 - 137.6°
Brand
TP-Link
Model
Tapo C545D
Part number
TAPO C545D
EAN / UPC
810142824231, 1210002621410, 8885020629255, 8885020629262
Also known as
TP-Link Tapo Outdoor Dual Lens Pan/Tilt Security Camera

Specifications

87 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired & Wireless
Auto-trackingYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes

Design

Form factorSpherical
Mounting typeCeiling/Wall/Pole
Product colourWhite
Protection featuresDust resistant, Water resistant

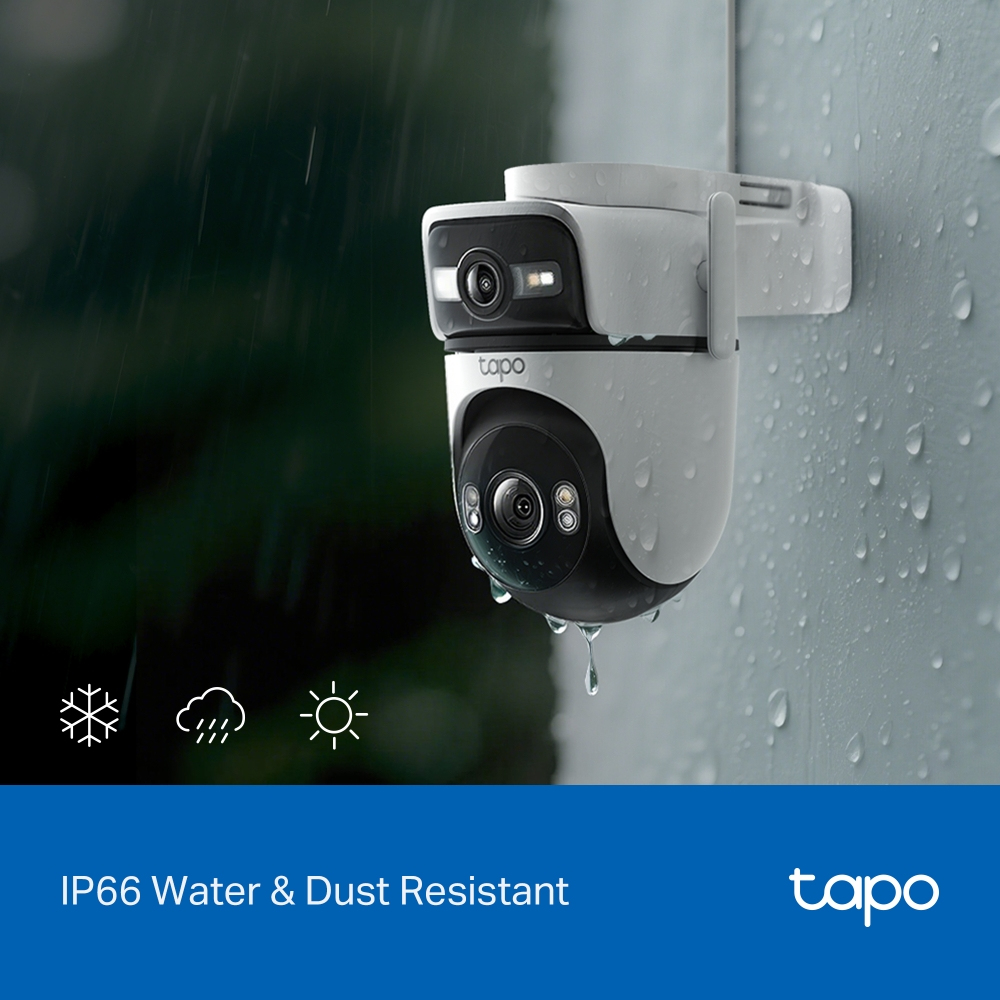

International Protection (IP) codeIP66

Camera

Lens viewing angle, horizontal57.3 - 137.6°
Lens viewing angle, vertical31.7 - 73°
Lens viewing angle, diagonal66.5 - 165.1°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses2
Focal length range2.53 - 6 mm
Maximum aperture number1.6

Night vision

Night visionYes
Colour night vision distance29.9 m
LED typeIR
Infra-red wavelength850 nm

Video

Maximum resolution2304 x 1296 pixels
Total megapixels3 MP
Video compression formatsH.264
Frame rate15 fps
Noise reductionYes
Noise reduction technology3D noise reduction

Audio

Built-in speaker(s)Yes
Audio system2-way
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiYes
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsTCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Wi-Fi data rate (max)144 Mbit/s
Frequency band2.4 GHz
Live viewYes
Works with Amazon AlexaYes
Works with the Google AssistantYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Built-in sirenYes
Siren noise level99 dB
Active tampering alarmYes
Alert notification typeSnapshot alert message
Intelligent Video Surveillance (IVS) system featuresHuman detection, Line crossing detection, Pet detection, Vehicle detection
Privacy protectionYes
Security algorithms128-bit AES, SSL/TLS, WPA, WPA2-PSK, WPA3
Video motion detectionYes

Management features

Reset buttonYes

Power

Power source typeDC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)5.3 W
Power consumption (max)11.2 W
DC output voltage12
DC output current1 A

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Width114.6 mm
Depth152.1 mm
Height159.6 mm
Weight491 g
Cable length3 m

Packaging data

Package width196 mm
Package depth235 mm
Package height136 mm
Package weight890 g

Packaging content

Number of cameras1
Mounting kitYes
Screws includedYes
Drilling template includedYes
AC adapter includedYes
Anchors includedYes
Quick start guideYes
Waterproof connectorYes
