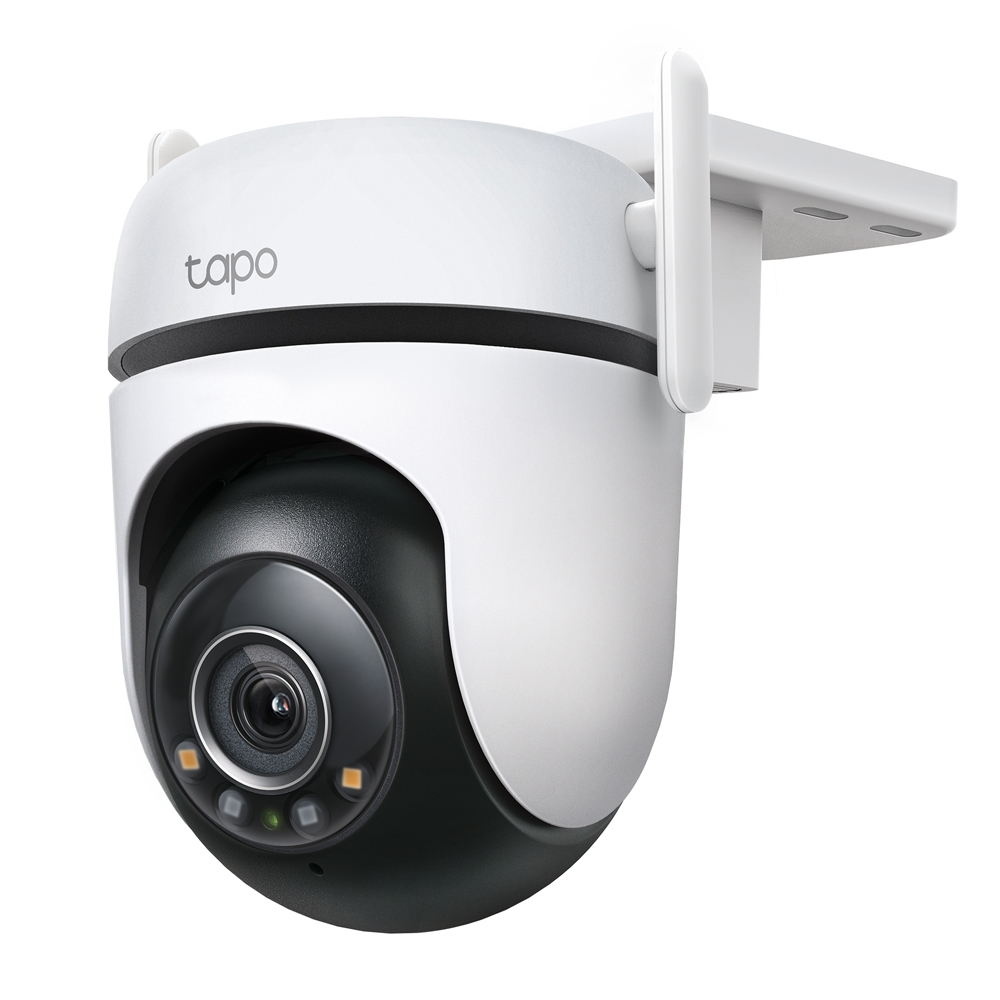

Tapo C520WS
Model Tapo C520WSPart no. TAPO C520WSEAN 840030706042
65 specifications
- ConnectivityWireless
- TypeIP security camera
- ColourBlack, White
- Form factorDome
- Lens viewing angle, horizontal360°
- Sensor typeCMOS
Overview
- Connectivity
- Wireless
- Type
- IP security camera
- Colour
- Black, White
- Form factor
- Dome
- Lens viewing angle, horizontal
- 360°
- Sensor type
- CMOS
- Brand
- TP-Link
- Category
- Security Camera
- Model
- Tapo C520WS
- Part number
- TAPO C520WS
- EAN / UPC
- 840030706042, 4895252501599, 4895252501605
- Also known as
- TP-Link Tapo Outdoor Pan/Tilt Security Wi-Fi Camera
Specifications
65 specifications in 18 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wireless |
| Auto-tracking | Yes |
| Certification | CE, FCC, RoHS, RCM |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Black, White |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Lens viewing angle, horizontal | 360° |
| Lens viewing angle, vertical | 130° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Maximum aperture number | 1.61 |
| Fixed focal length | 3.18 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Video formats supported | H.264 |
| Supported graphics resolutions | 2560 x 1440 |
| Frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | No |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Supported network protocols | TCP/IP, ICMP, DNS, HTTPS, TCP, UDP |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Channel bandwidth | 2400 MHz |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit AES, WPA-PSK, WPA2-PSK |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 3.75 W |
| Power consumption (max) | 7.65 W |
| DC output voltage | 9 |
| DC output current | 0.85 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 123.8 mm |
| Depth | 123 mm |
| Height | 90 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 160 mm |
| Package depth | 210 mm |
| Package height | 145 mm |
| Package weight | 740 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Mounting kit | Yes |
| Mounting brackets included | Yes |
| Screws included | Yes |
| Manual | Yes |
