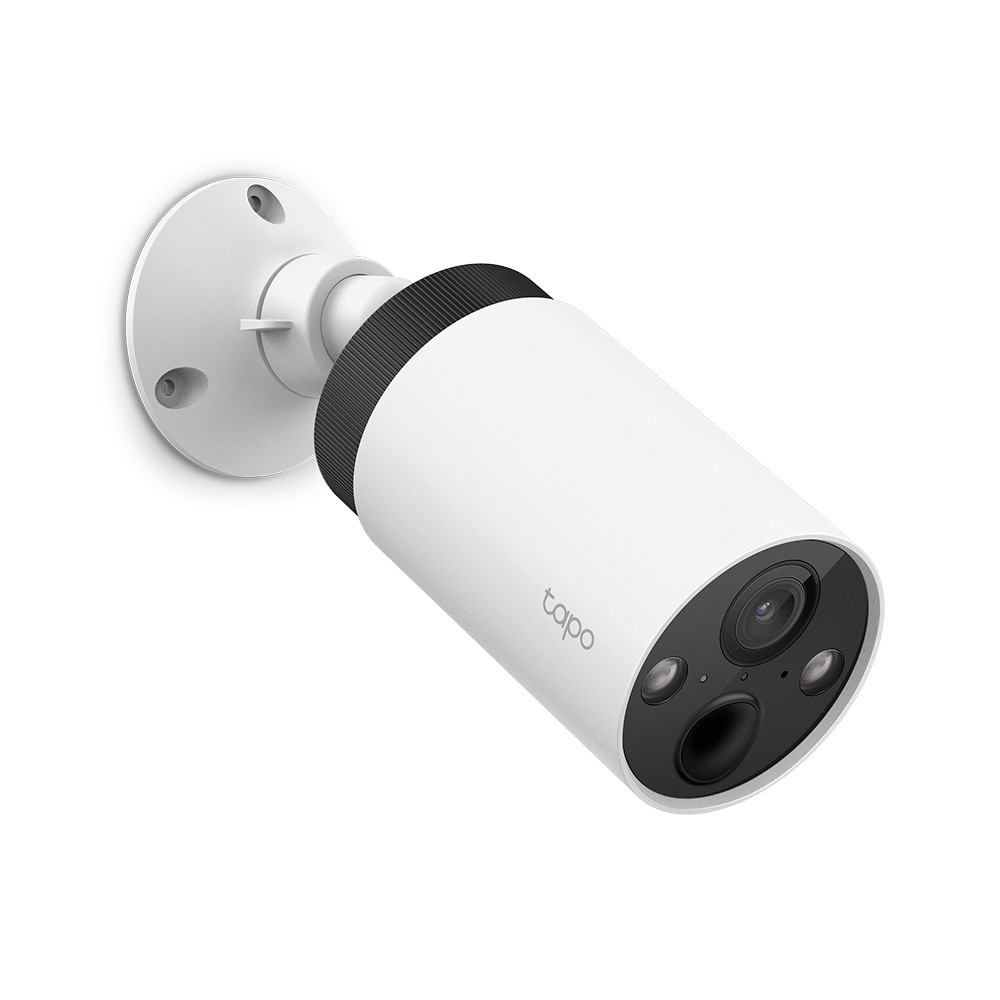

Tapo C420
Model Tapo C420Part no. TAPO C420EAN 840030705120
55 specifications
- ConnectivityWireless
- TypeIP security camera
- ColourWhite
- Form factorTurret
- Field of view (FOV) angle113°
- Optical sensor size25.4 / 3 mm (1 / 3")
Overview
- Connectivity
- Wireless
- Type
- IP security camera
- Colour
- White
- Form factor
- Turret
- Field of view (FOV) angle
- 113°
- Optical sensor size
- 25.4 / 3 mm (1 / 3")
- Brand
- TP-Link
- Category
- Security Camera
- Model
- Tapo C420
- Part number
- TAPO C420
- EAN / UPC
- 840030705120, 4897098685129, 4897098685136
- Also known as
- TP-Link Tapo Smart Wire-Free Security Camera
Specifications
55 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wireless |
| People counting function | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Built-in light | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Turret |
| Mounting type | Wall/Pole |
| Product colour | White |
| LED indicators | Yes |
| Protection features | Dust resistant, Water resistant |
| International Protection (IP) code | IP65 |
Camera
| Specification | Value |
|---|---|
| Field of view (FOV) angle | 113° |
Image sensor
| Specification | Value |
|---|---|
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 2 |
| Fixed focal length | 3.18 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 15 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1440 pixels |
| Video compression formats | H.264 |
| Supported graphics resolutions | 2560 x 1440 |
| Frame rate | 20 fps |
| Video streaming | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Supported network protocols | TCP/IP, ICMP, DNS, HTTPS, TCP, UDP |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Ports & interfaces
| Specification | Value |
|---|---|
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Built-in siren | Yes |
| Alert notification type | Snapshot alert message |
| Intelligent Video Surveillance (IVS) system features | Human detection, People counting, Vehicle detection |
| Motion sensor | Yes |
| Security algorithms | WPA, WPA2-PSK |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
| Number of batteries supported | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 45 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110.6 mm |
| Depth | 64.2 mm |
| Height | 64.2 mm |
| Diameter | 6.42 cm |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Cables included | LAN (RJ-45), USB |
| Mounting brackets included | Yes |
| Screws included | Yes |
| Drilling template included | Yes |
| Battery included | Yes |
| Manual | Yes |
| Packaging content | Tapo C420 Cameras (Battery Included) Tapo H200 Hub USB Adapter USB Adapter Cable DC Power Adapter Mounting Screws Mounting Templates Camera Brackets Quick Start Guide RJ45 Ethernet Cable |
